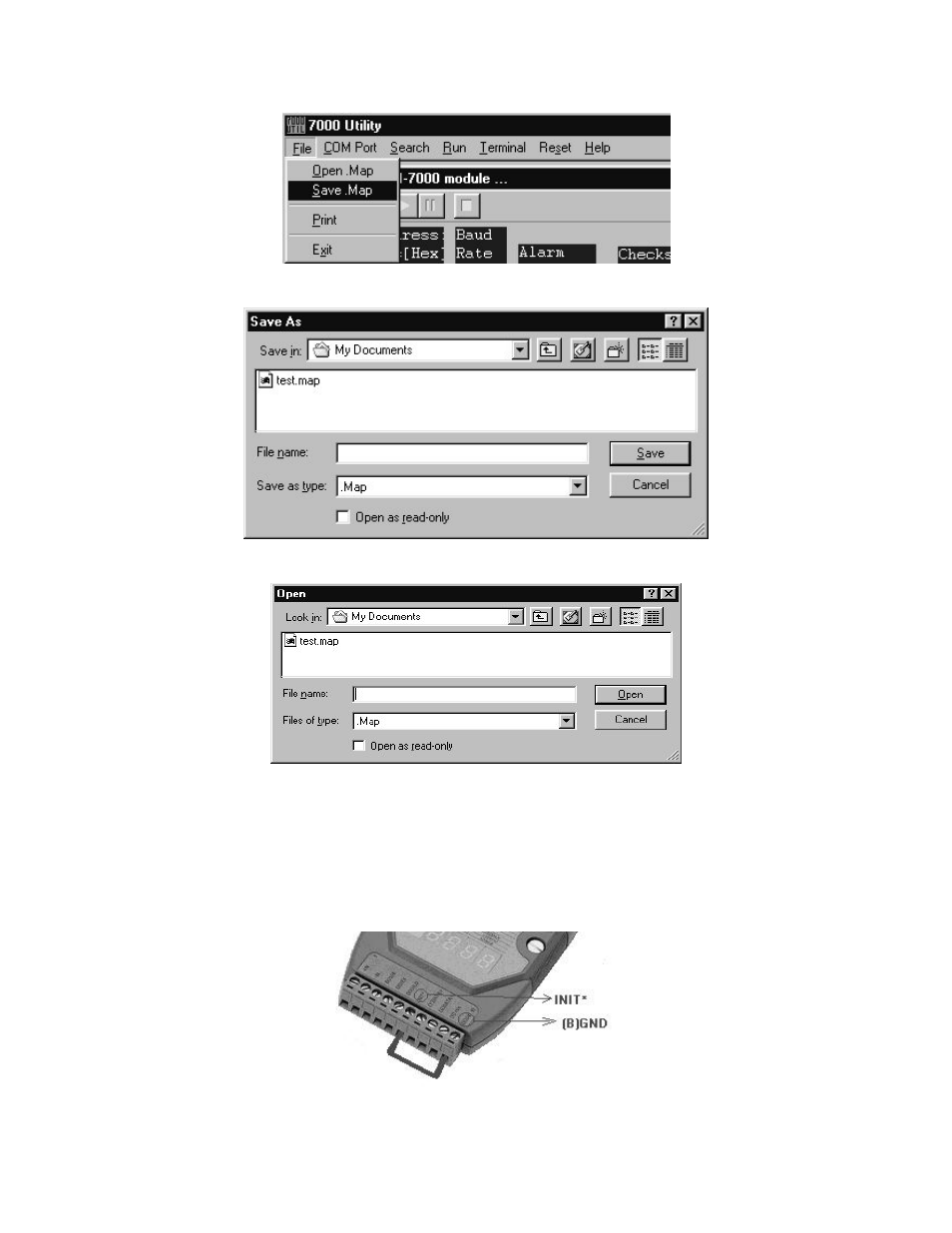

Figure 2-18. Open/Save/Print Menu and Tool Bar.
Figure 2-19. To Save a Map File test.map.
Figure 2-20. Opening a Map File test.map
2.7.8 Change Baud Rate and Checksum
Before clicking on t he Setting button on the window “Setting Configuration for XXXX” to
change the baud rate or checksum, connect t he INIT* and GND t erminals of this module. See
Figure 2-21. To change the baud rate or checksum:
1. Use wire to connect the INIT* and GND of this module (Figure 2-21).
Figure 2-21. Shorting “INIT*” and “(B) GND”.
