28
Communication line broken detection.
Module Watchdog.
Please run the demo program and follow these steps to test the dual watchdog. The main window
is shown as Figure 3-7.

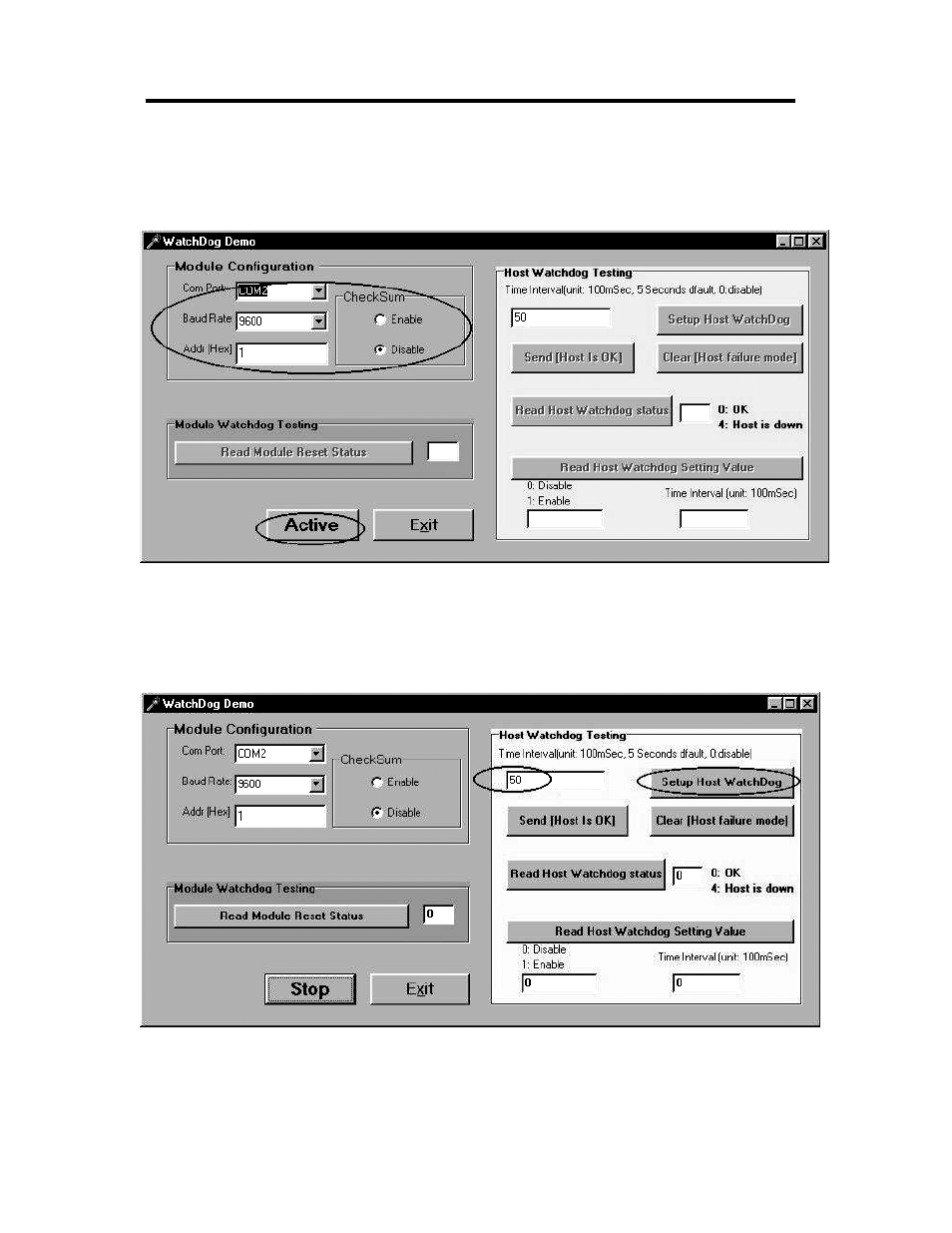

Figure 3-7.WatchDog Demo – Main Window
Choose the user’s configuration and click the button “Active” to start this demo program.
3.4.1 Host Watchdog Demo
Figure 3-8. Time-Interval Value Setting
Type in time-interval value and click button “Setup Host Watchdog”
