Measurement Computing UL for NI LabVIEW - Manual (Page 97)

Universal Library Virtual Instruments (VIs) Miscellaneous VIs

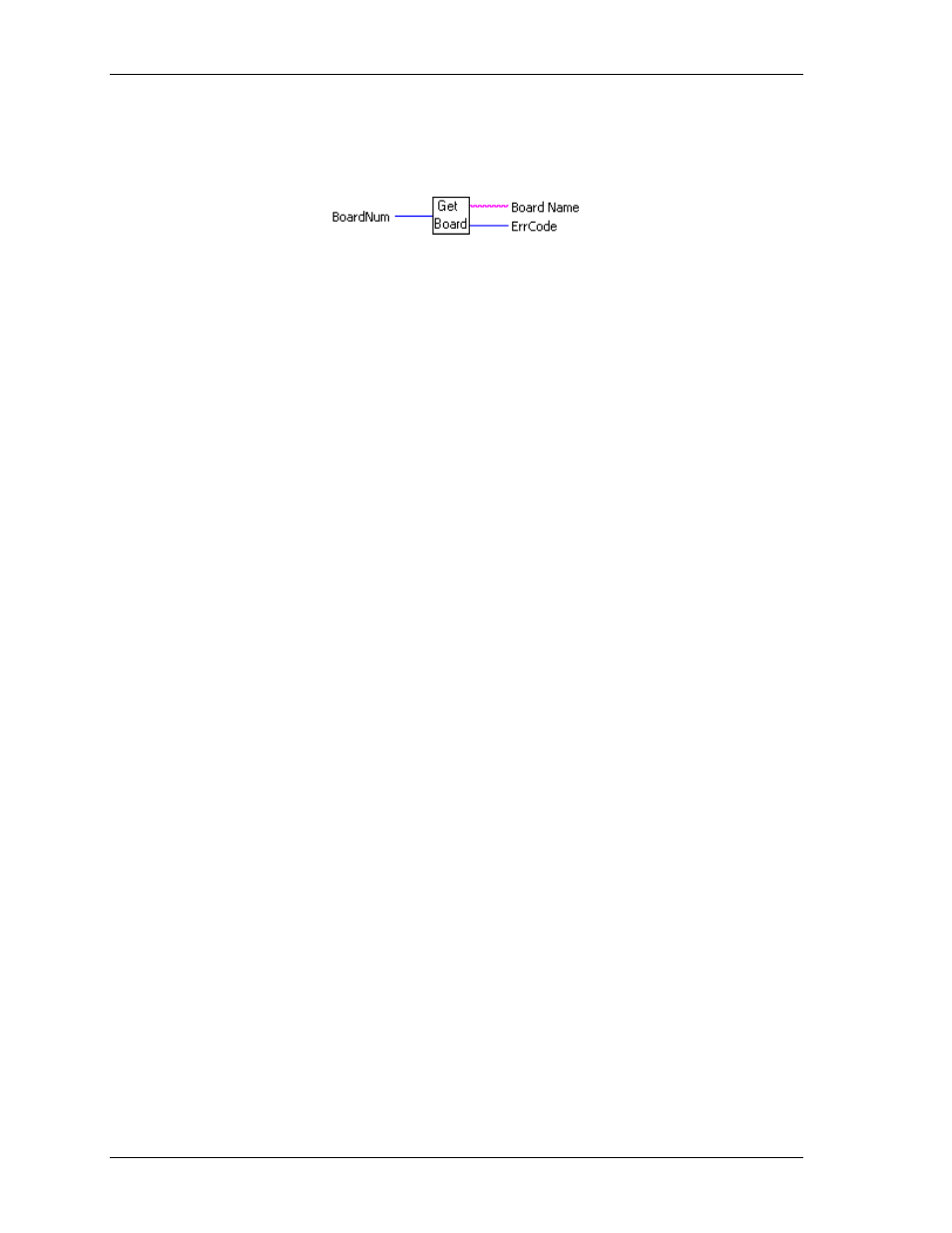

GetBoard.VI
Returns the board name of a specified board.
Summary:
Input: BoardNum [U32] - The board number assigned when installed with InstaCal. Can
be 0 to 100, or GETFIRST or GETNEXT
Outputs: BoardName [abc] - Name of the specified board.
ErrCode [I32] - Error code. See ErrMsg.VI
Arguments:
BoardNum The board number associated with a board when it was installed with InstaCal, or
GETFIRST or GETNEXT .
BoardName A string variable that the board name will be returned to. This string variable must
be pre-allocated to be at least as large as BOARDNAMELEN . This size is guaranteed to
be large enough to hold the longest board name string.
ErrCode Error code from the Universal Library. Zero if no error occurred. Use the ErrMsg
VI to convert ErrCode into a readable string.
Notes:
There are two distinct ways of using this function:
ƒ Pass a board number as the
BoardNum argument. In that case the string that is returned will describe the
board type of the installed board.
ƒ Set
BoardNum to GETFIRST (-2) or GETNEXT (-3), to get a list of all board types that are supported by the
library. If BoardNum is set to GETFIRST, it will return the first board type in the list of supported boards.
Subsequent calls with BoardNum=GETNEXT will return each of the other board types supported by the
library. When you reach the end of the list BoardName will be set to an empty string.
97
