2.4 Selecting between Gyda mode or Manual mode
The board can be configured either manually or through the system controller Multicon
GYDA.
Since there’s a limited number of switches available compared to the total number
of settings available for the module, only a subset of the parameters can be adjusted when
operating in manual mode. Generally, the parameters that cannot be directly controlled by
the DIP switches will take their settings from the previous Multicon GYDA session. This
means that for a specific manual setup it may be necessary to configure the module with a
Multicon GYDA before switching to manual mode.
To reach manual mode, the lower DIP (labelled OVR) on the module must be switched to
the “On” position (to the right) and the board must be re-booted. This isolates the board
from Multicon GYDA control, but the module will still accept commands to retrieve its status,
and also the commands necessary to initiate and perform firmware upgrades.

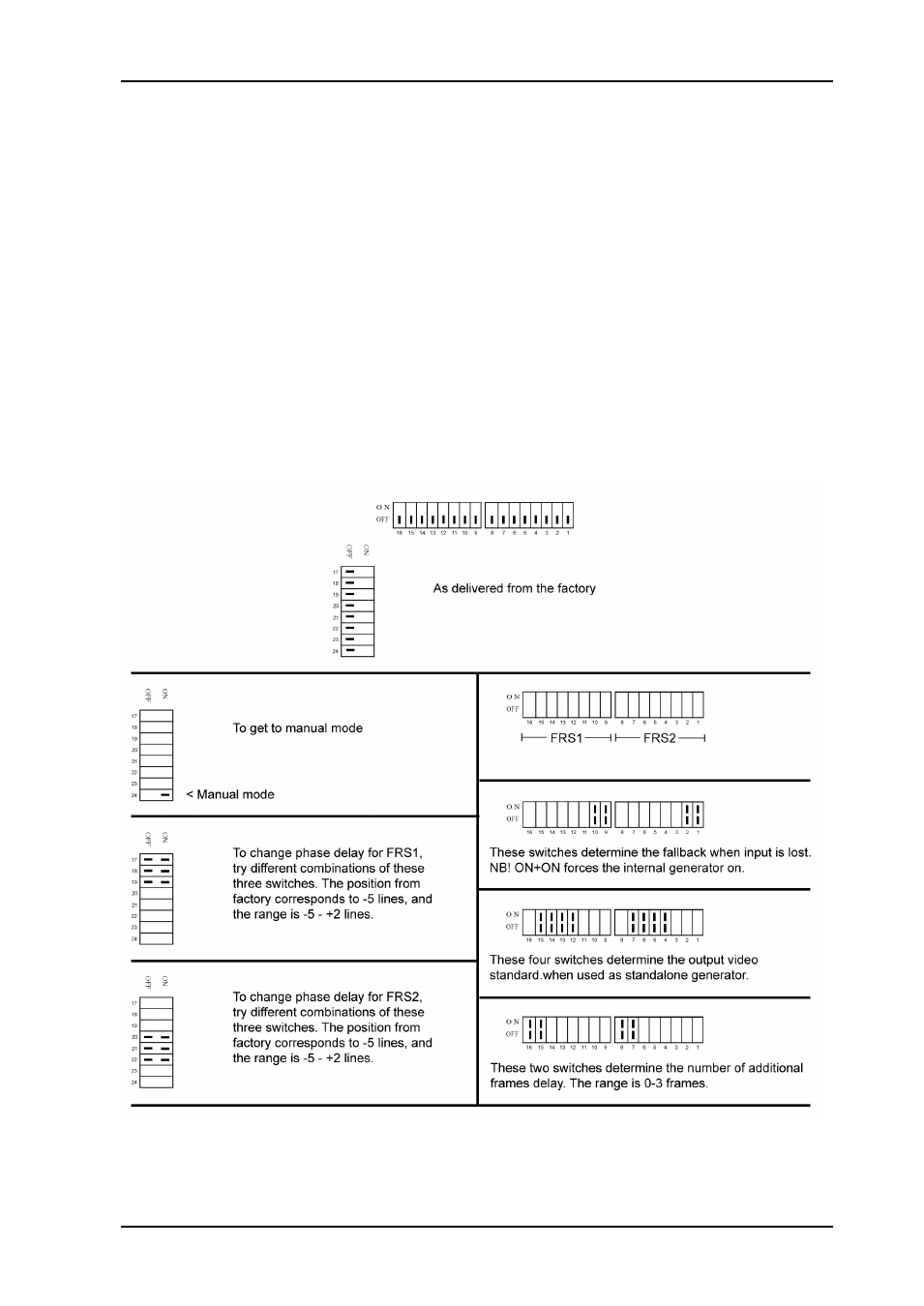

2.5 A very brief guide to Manual mode set-up
More details and possibilities are described in chapter 3.1
, entitled ‘Detailed control in
’. This is just the bare minimum to get started and get a useful output in
Manual mode:
