3.2 Detailed control in Gyda mode
All functions of the card can be controlled through the Multicon GYDA control system. The
Multicon GYDA has an information page and a configuration page.
3.2.1 Information page

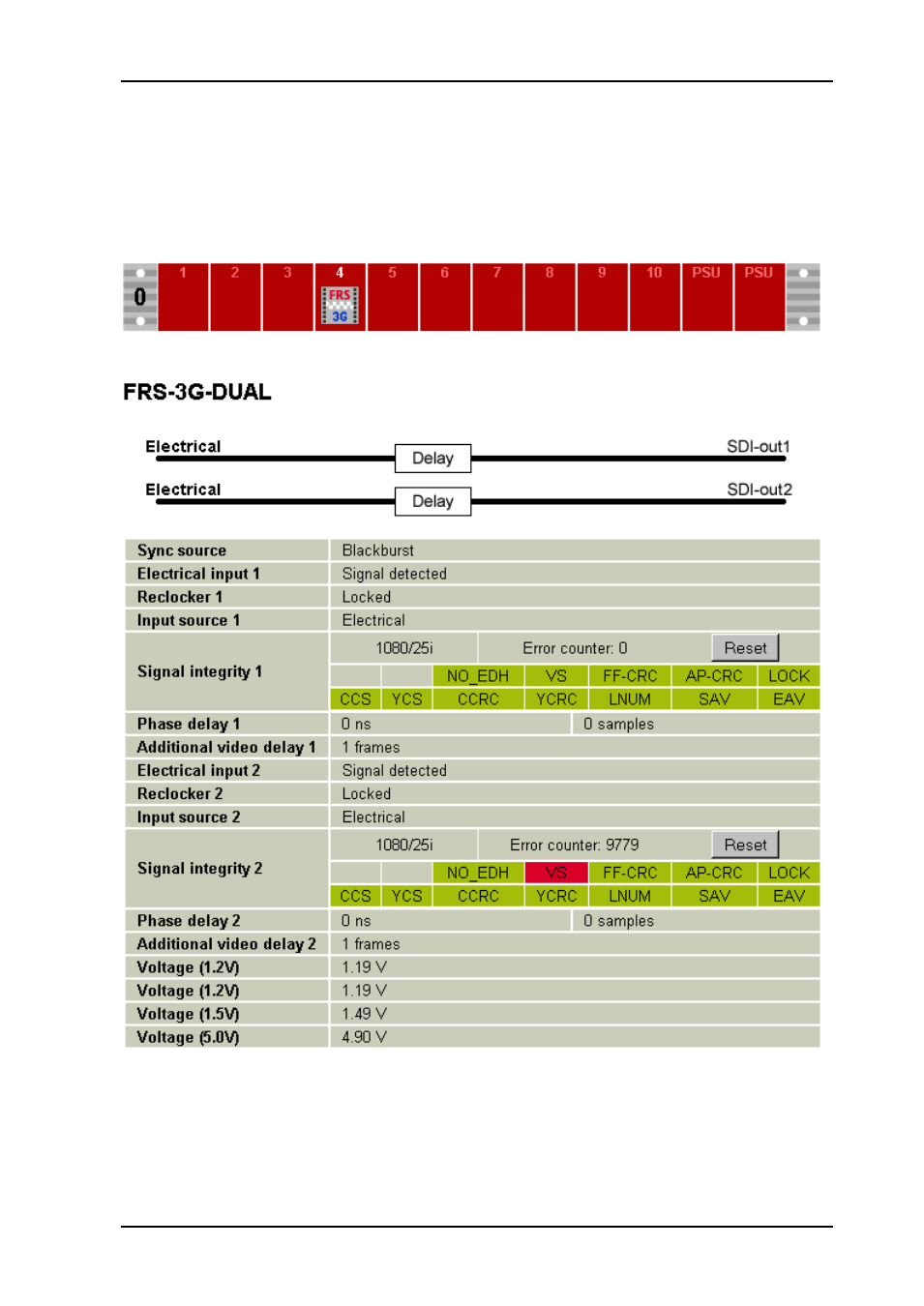

Figure 4: Multicon GYDA information page
The information page shows a dynamic block-diagram of the board and some additional
informative text. The block diagram updates with the board status, showing input signal
selected and signals missing (by red crosses over signal lines).
