3
Detailed control
3.1 Detailed control in manual mode
To reach manual mode, the lower DIP (labelled OVR) on the module must be switched to
the “On” position (to the right) and the board must be re-booted. This isolates the board
from Multicon GYDA control, but the module will still accept commands to retrieve its status,
and also commands related to initiate and perform firmware upgrades.
The Manual Mode configuration controls are all found on the front side of the board. There
are three sets of DIP switches, and the switches are numbered and labeled counter-
clockwise from 1 to 24.

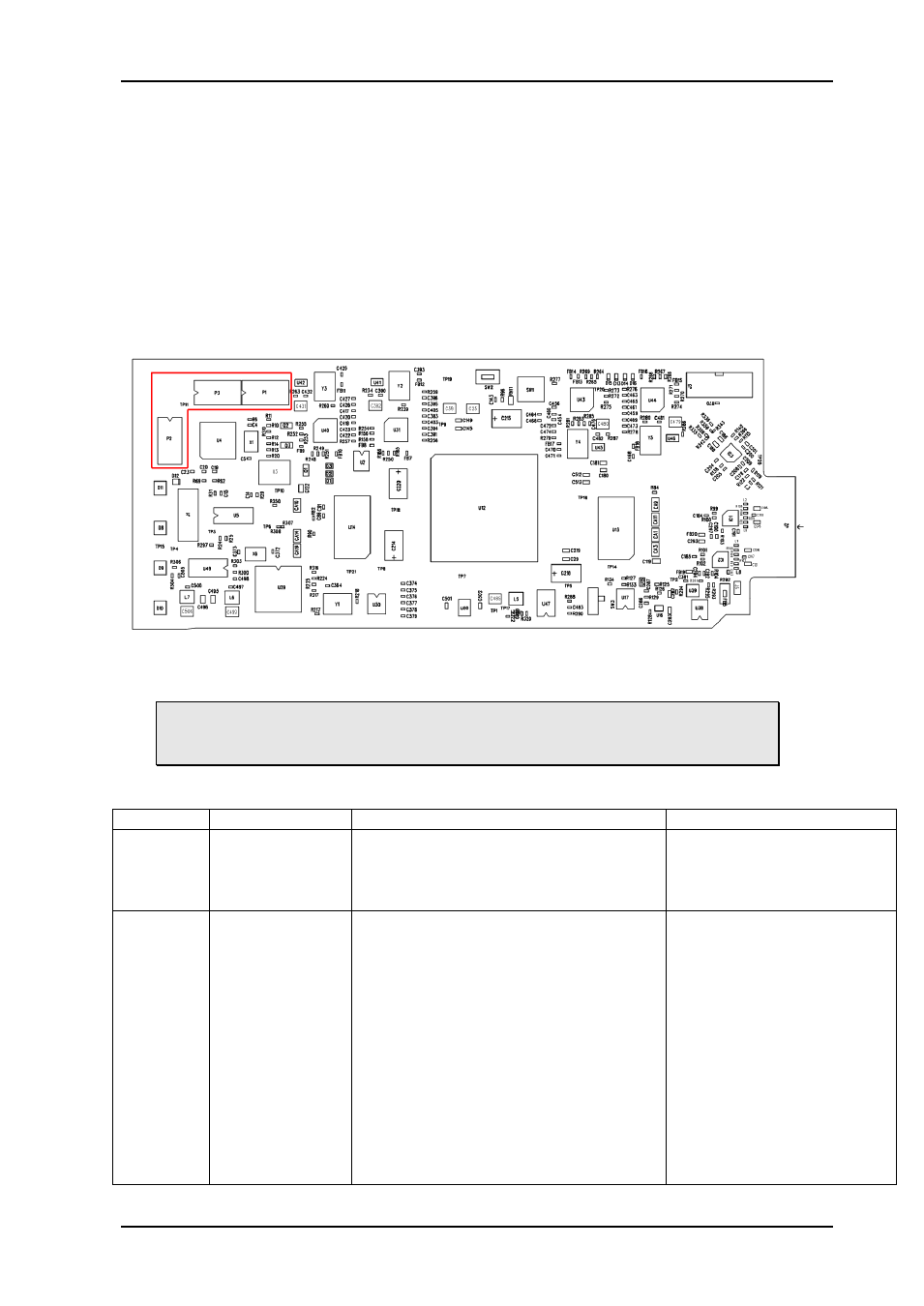

Figure 3: The figure shows a top view component printout of the board.
3.1.1 DIP switch functions
The two horizontally mounted DIP switch packages are here denoted DIP1-
DIP16, counted from right to leftt. The vertically mounted DIP package is
denoted with DIP17-DIP24, counted from top to bottom.
Switch
Function name
Function DIPs
Comment
1-2
Frame sync 2 input
DIP2 DIP1
OFF OFF Fallback to Colorbar
OFF ON Fallback to Black
ON OFF Fallback to Muted
ON ON
Module is generator
When the module is set as a
standalone generator, the video
standard can be selected on DIPs
3-6.
3-6
Frame sync 2
generator standard
DIP6 DIP5 DIP4 DIP3 VSTD
OFF OFF OFF OFF 486/29i
OFF OFF OFF ON 576/25i
OFF OFF ON OFF 1080/24p
OFF OFF ON ON
1080/25i
OFF ON OFF OFF 1080/30i
OFF ON OFF ON 1080/29i
OFF ON ON OFF 1080/50p
OFF ON ON ON
1080/60p
ON OFF OFF OFF 1080/59p
ON OFF OFF ON 720/24p
ON OFF ON OFF 720/25p
ON OFF ON ON
720/50p
ON ON OFF OFF 720/60p
ON ON OFF ON 720/59p
ON ON ON OFF Reserved
ON ON ON ON
Reserved
