2
How to get started
2.1 Power requirements
The absolute maximum power consumption for this module is 11.1 W. This figure varies
considerably with the combination of video standards used. If the module will always be
used with the same combination of input standards, the table below can be used to
determine the actual maximum power consumption, and to determine how many modules
can safely be used in one frame.
Note that the module will draw all its power from +5 V. Check the +5 V rating of
the power supply, generally it will be lower than the rating for the entire supply!
Table 1: Maximum power consumption as a function of the video standards used
Input/output standards, both channels in use (single-channel variant in parenthesis)
SD / HD720p / HD1080i 3G 1080p
9.7 W (7.6 W) 11.1 W (8.1 W)
The single-channel variant of FRS-3G-DUAL uses more than half the power of
a normal dual-channel unit, see table above!
2.2 Physical connections

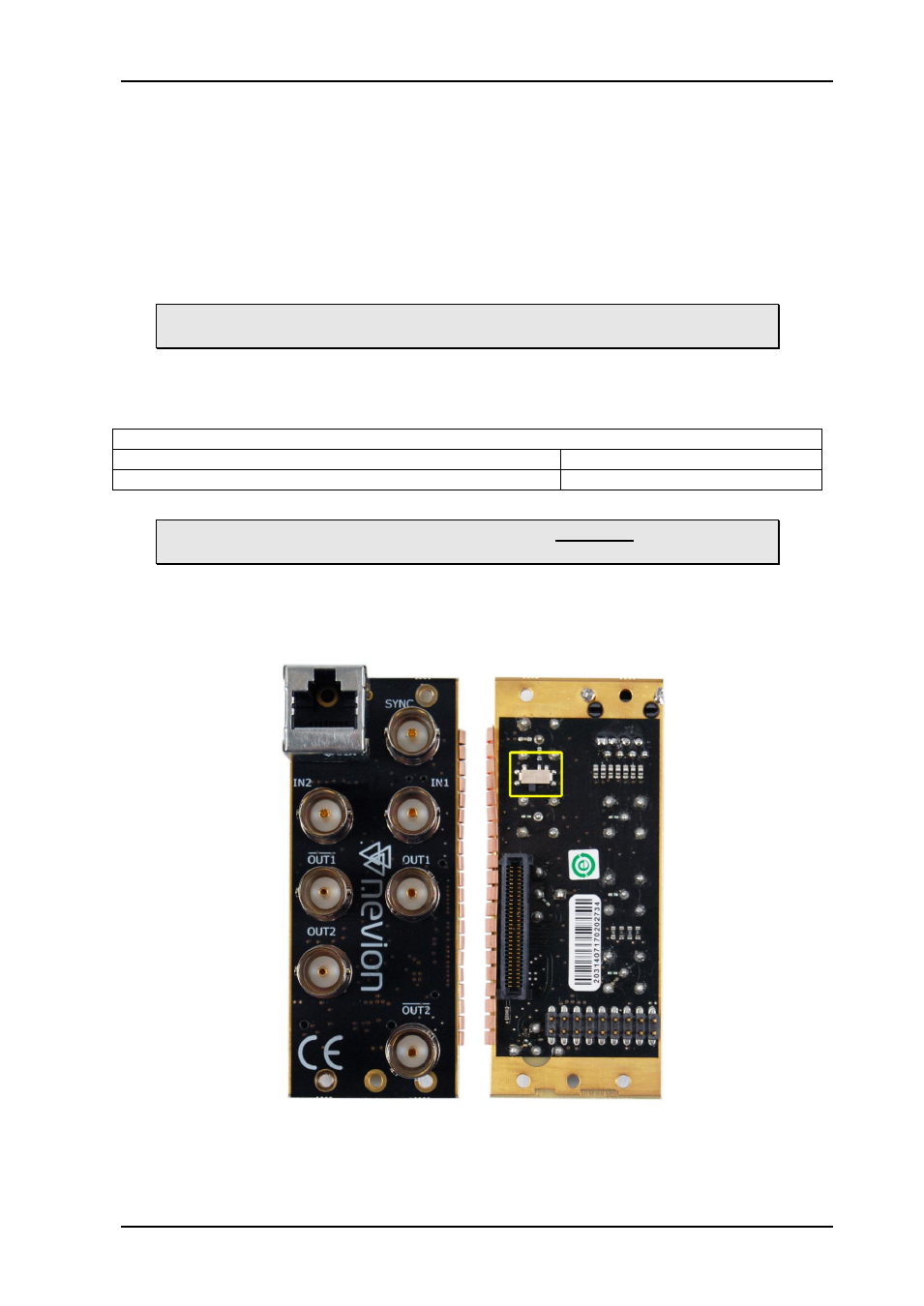

Figure 2: FRS-3G-DUAL-C1 backplane.
Connection side one the left, side towards the frame on the right
