Page 17: 4configuration
FRS-HD
Rev. G
nevion.com | 17
4
Configuration
The board can be configured both manually and through the Nevion control system
GYDA. However, only a few of the configurable parameters are available when operating
in manual mode.
4.1 Manual mode
To reach manual mode DIP16 labeled OVR on the board must be switched on (to the
right) and the board must be re-booted. This takes the board out of GYDA control (if it
was previously set to off) and onto being controlled by the DIP switch and rotary switch
settings. Settings not controlled by any of these switches are set to settings from previous
settings (factory setup or GYDA setup).
The Manual Mode configuration controls are all found on the front side of the board.
There are two sets of DIP switches, one rotary switch and two push buttons. On the
bottom side of the card, three slide switches can also be found, but they are hardware
switches that are set for all operation modes.

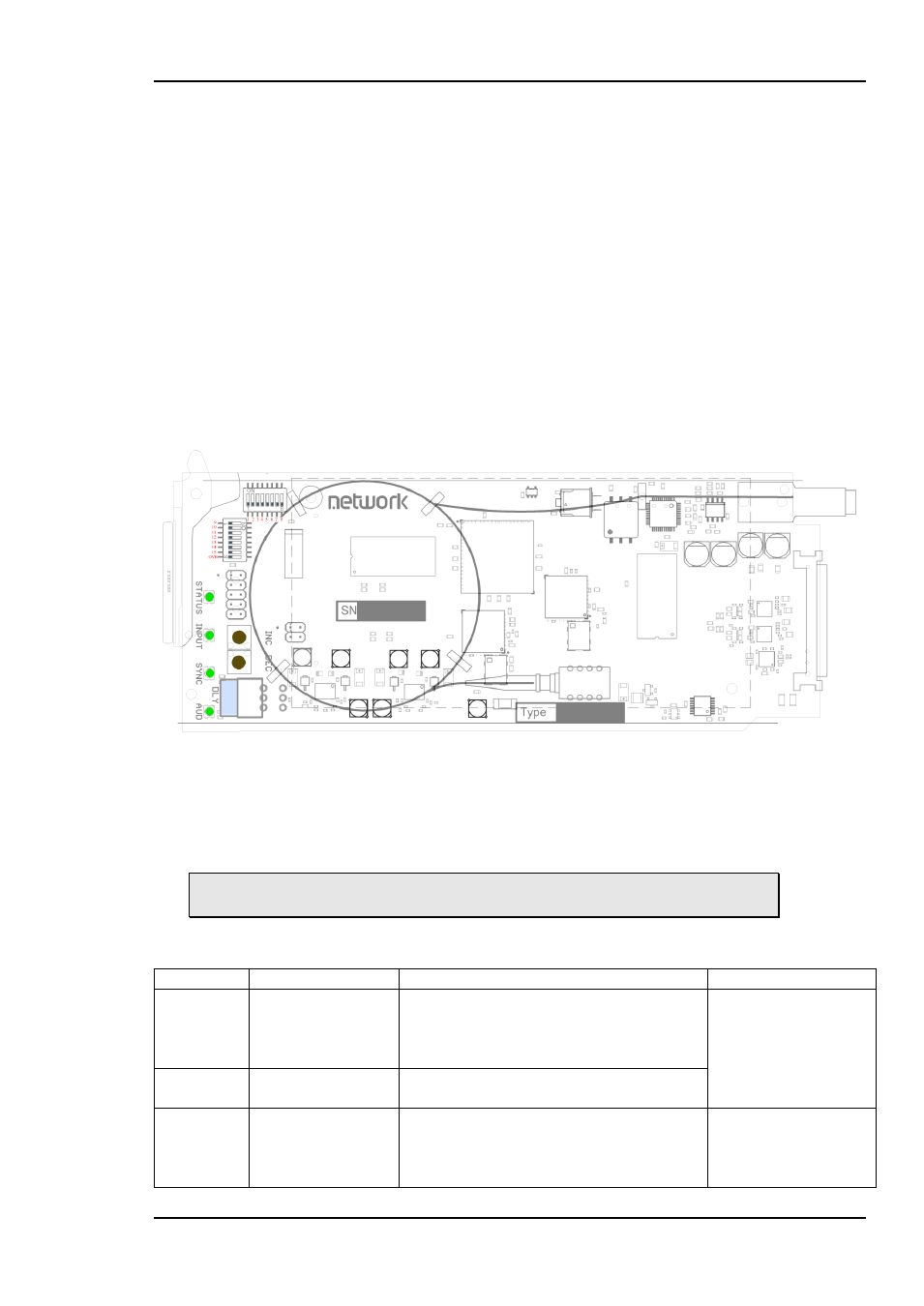

Figure 9: The figure shows a top view component printout of the board. Note the location
of LEDs, push-buttons, the rotary switch and the 2 sets of DIP-switches.
4.1.1 DIP switch functions
The two sets of DIP switches are labeled with a number running from 1 to 15. The 16
th
DIP is labeled OVR.
Note that the left DIP switch of the horizontal DIP package is number 1. The
top DIP switch of the vertical DIP package is number 9.
Table 1:
DIP SWITCH FUNCTIONS
Switch #
Function name
Function DIPs
Comment
1 - 2
ADAC group
DIP[1 2] = [Off Off] => Emb grp 0
DIP[1 2] = [Off On] => Emb grp 1
DIP[1 2] = [On Off] => Emb grp 2
DIP[1 2] = [On On] => Emb grp 3
These 3 DIPS
routes one
embedded AES
channel to the
Analog Audio
output
3
ADAC ch1/ch2
Off = ch1, On = ch2
(of group selected from DIP1&2)
4 - 5
AES group
DIP[4 5] = [Off Off] => Emb grp 0
DIP[4 5] = [Off On] => Emb grp 1
DIP[4 5] = [On Off] => Emb grp 2
DIP[4 5] = [On On] => Emb grp 3
These 3 DIPS
routes one
embedded AES
