5
Connections

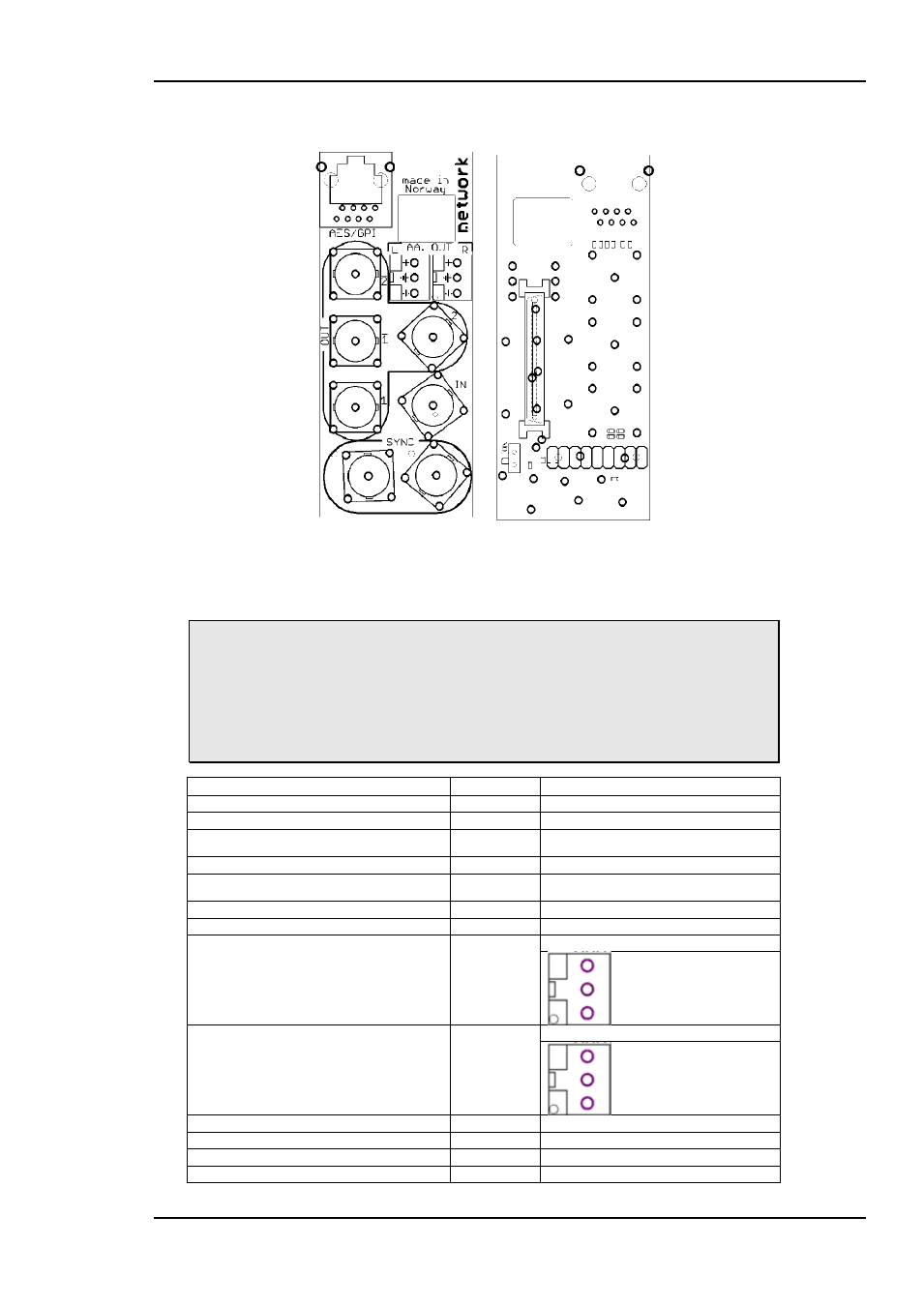

Figure 13: FRS-HD-DMUX-C1 (this is rev.2 of the backplane)
The backplane for the FRS-HD-DMUX is labeled FRS-HD-DMUX-C1. The table below
shows the connectors and their functions.
It is important to terminate the sync input. The backplane opens for looping
the sync. It is then necessary to terminate the last board in the loop.
On boards of revision 2 or later this can be done either by setting the slide
switch position to ON (on backplane) or by adding a 75R terminator to one
of the sync input.
On boards of revision 1 termination is done by adding a 75R terminator to
one of the sync inputs.
Function
Label
Connector type
HD/SD-SDI input
IN
BNC
HD/SD-SDI output 1
1
BNC
HD/SD-SDI output 1 inverted
__
1
BNC
HD/SD-SDI output 2
2
BNC
HD/SD-SDI output 2 inverted
__
2
BNC
Sync input
SYNC
BNC
Sync input (Termination or loop-thru)
SYNC
BNC
Analog audio out left channel
AA.OUT
L
WECO Audio connector
Positive
GND
Negative
Analog audio out left channel
AA.OUT
R
WECO Audio connector
Positive
GND
Negative
GPI out 1-3
No label
TP45 pin 1, 2 ,3 (8 = GND)
AES out
No label
TP45 pin 4, 5, 6
Frame delay pulse
No label
TP45 pin 7 (8=GND)
Optical input
No label
BSC-II (for SC input)
