6.Communication with PC

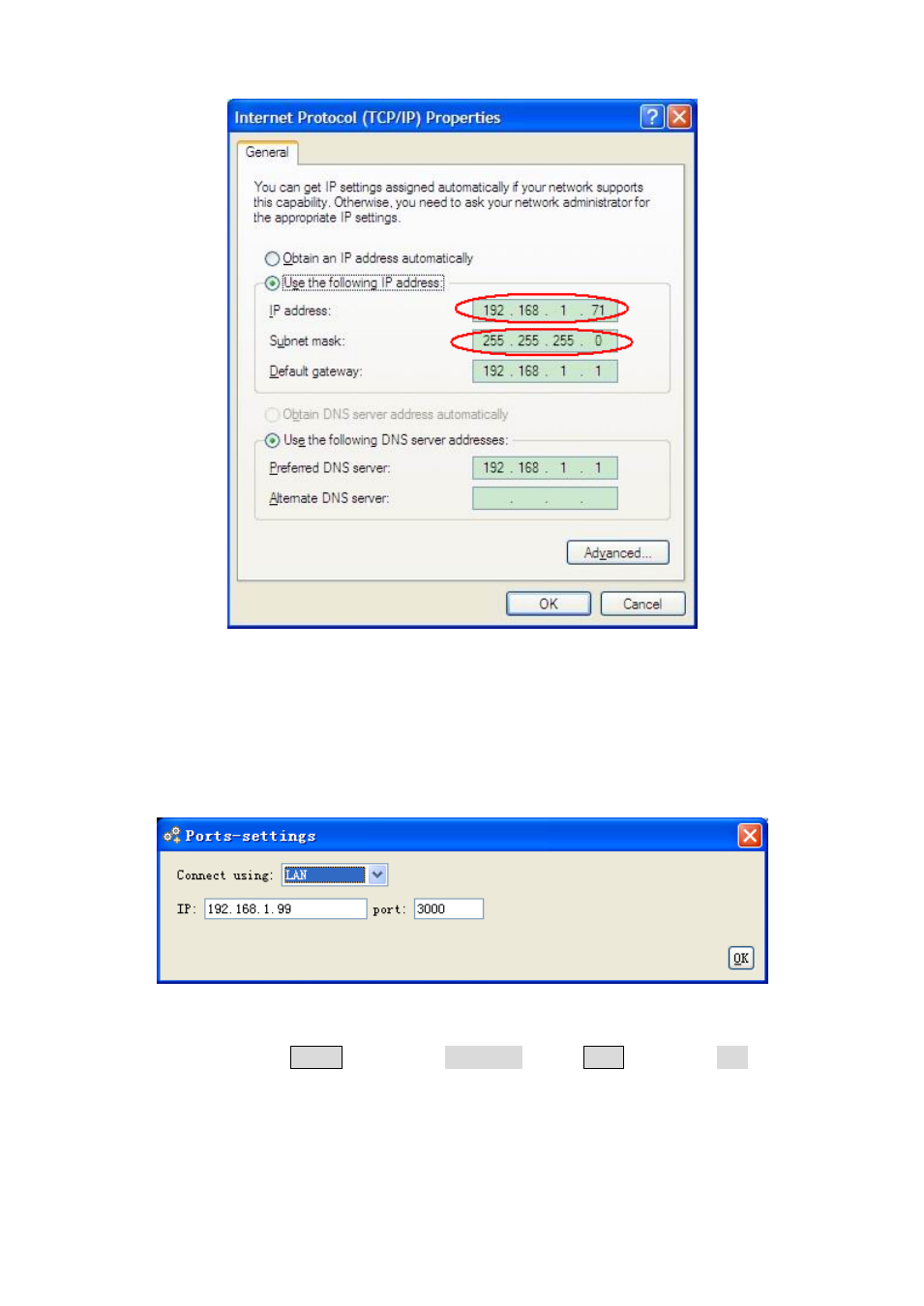

Figure 6-1: Set the network parameters of the computer
(3)
Set the network parameters of the ultrawave software. Run the software on the
computer, choose the "Ports-settings" of the "Communications" menu item. Set
"Connect using" to LAN. About the IP, the first three bytes is same as the IP in the
step (2), the last byte should be different. Here, we set it to 192.168.1.99. The range
of the port value is 0～4000, but the port which under 2000 is always be used, so it is
suggested to set it to the value above 2000. Here, we set it to 3000.
Figure 6-2: Set the network parameters of the ultrawave software
(4)
Set the network parameters of the Waveform Generator. In the Waveform
Generator, press Utility and choose I/O Setup, press F2 to choose LAN, enter
the submenu. Set the IP Addr and the Port to the same value as the "Ports-settings"
in the software in step (3). About the setting method, please refer to "To Set the LAN"
on P33. After restarting the Waveform Generator, if you can get data normally in the
ultrawave software, the connection is successful.
38
