VSP 9516S User Manual 125
Firmware Upgrade
Firmware upgraded is via webpage, specific steps are as follows:
1. Connect VSP 9516S and computer with cable.
2. Start the network function, specific steps are as follows:
MENU--SYSTEM -- ETHERNET -- NETWORK, select ―ON‖, and check
the IP address of the equipment, confirm if it is consistent with the
computer, such as 192.168.0.***, take 192.168.0.100 for example.
3. Open the webpage, input IP: 192.168.0.100 (this is the default state, if
the IP address is changed, the IP address input should be consistent
with the changed IP address), then input the user name: admin,
password: rgblink123, click OK.

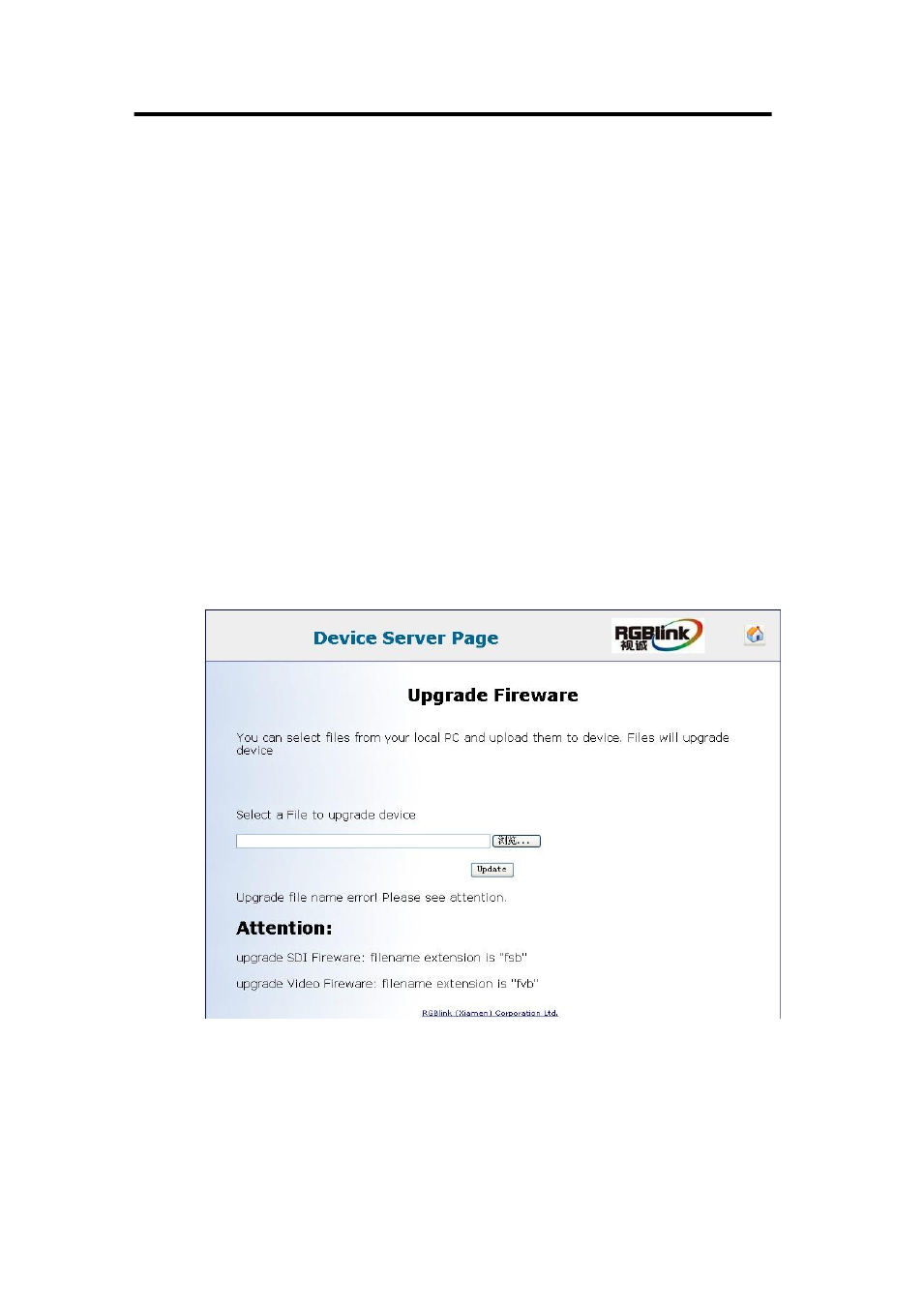

4. Enter the webpage, click "Firmware Upgrade" and load the page, as
shown:
5. Click "Browse...", choose firmware directory path, the format should be
"FVB", then select "Update" to load the program.
