Hardware Manual
Waterproof Solutions
There are two ways to do the waterproof cabling installation:
Waterproof with Naked Cable
: This installation uses the supplied cable gland and an
exterior-grade
Ethernet cable (not supplied). Exterior-grade cables are already
waterproof and thus, do not require a conduit.
Waterproof with Conduit
: This installation uses the supplied conduit gland and a
3/8”
flexible conduit (not supplied). This is the recommended solution if other input / output
devices or an external power adaptor will be connected to the camera.
Waterproof Solution with Naked Cable
This section describes the procedures to waterproof the cabling connections using an
exterior-grade Ethernet cable.
1.

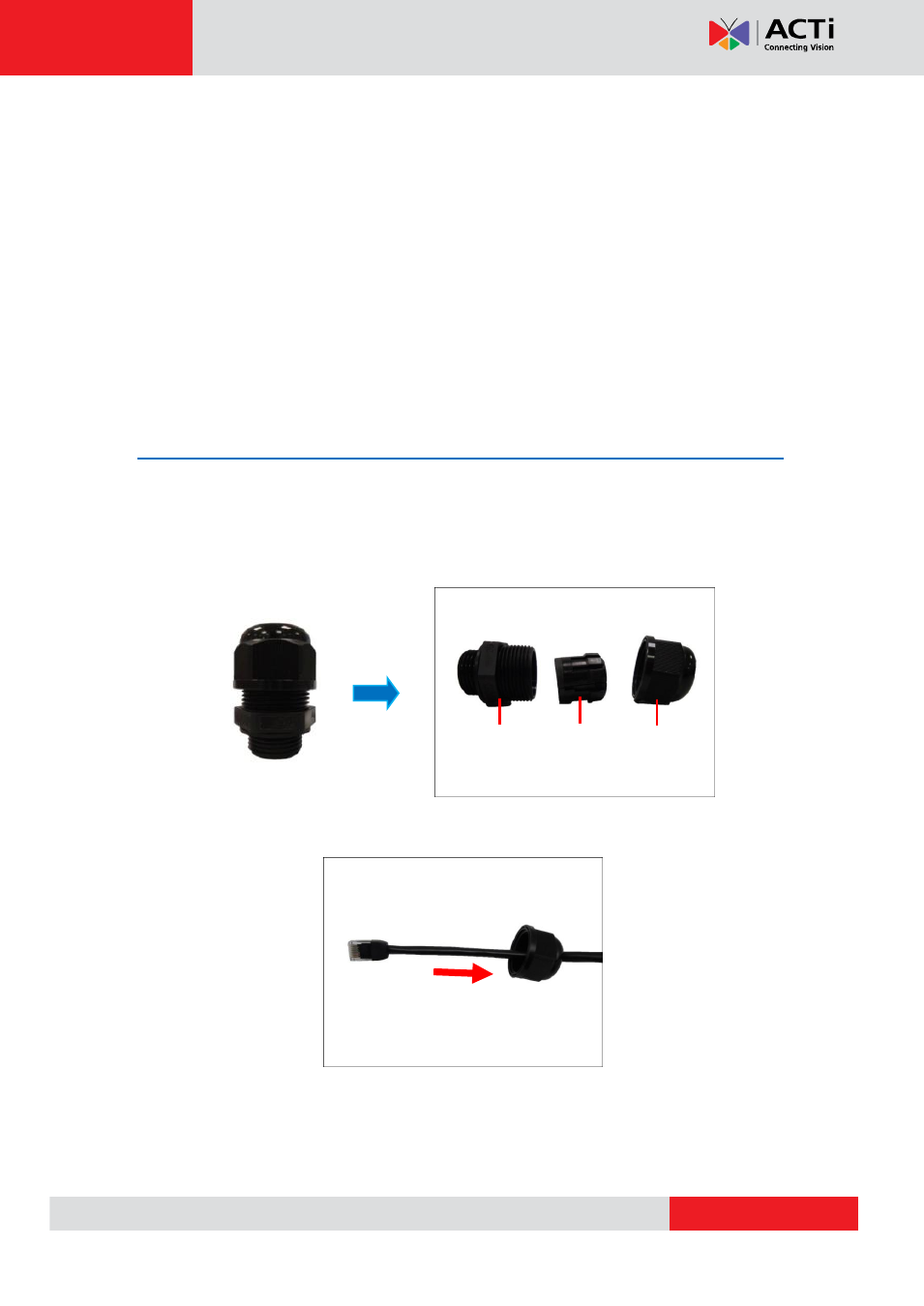

Disassemble the cable gland as shown below:
2.
Insert the clamping nut into the Ethernet cable.
Body
(with Washer)
Sealing Insert
with Claw
Clamping
Nut
