Page 9
Hardware Manual

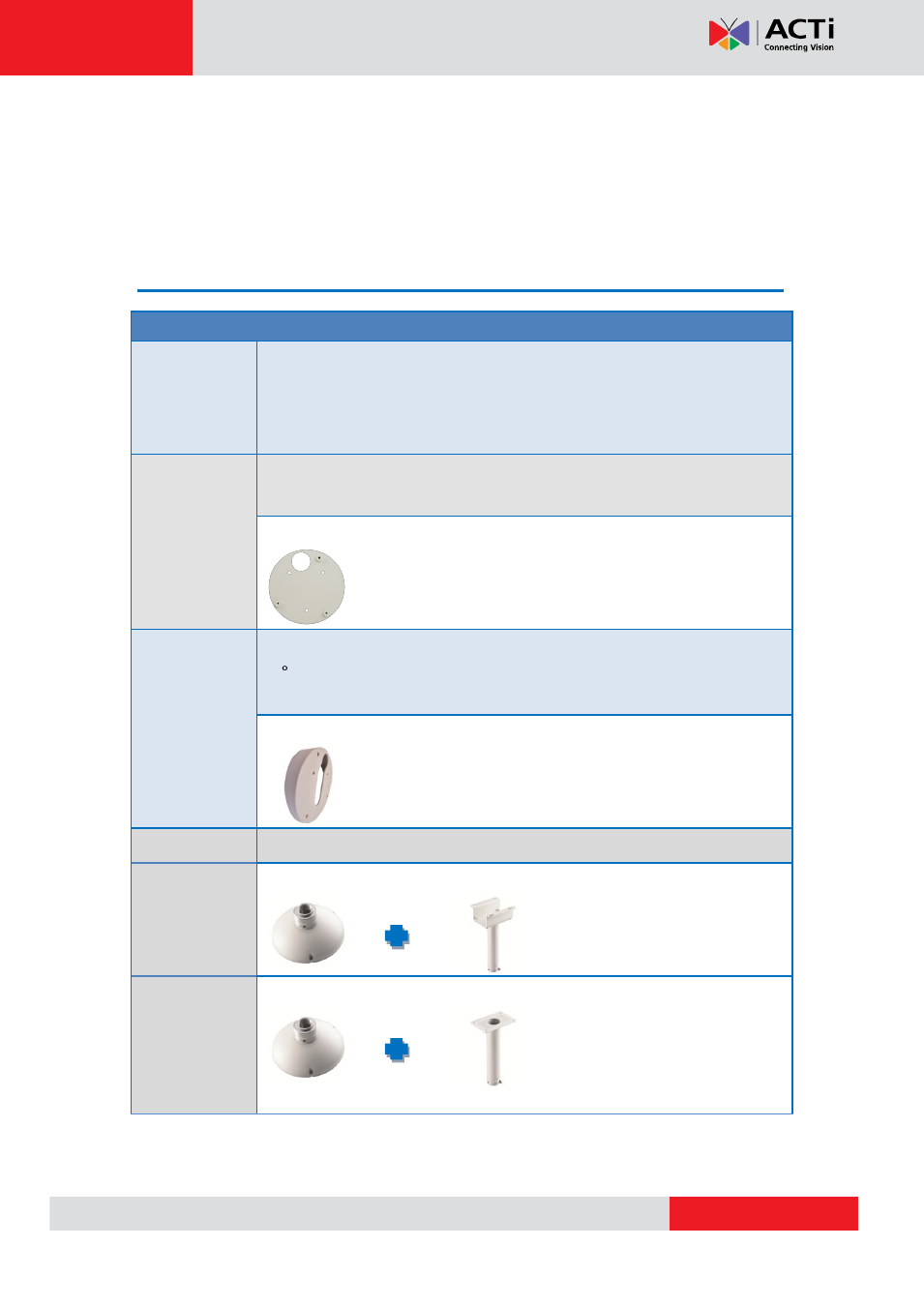

Installation Procedures
There are several mounting options that you can use to install the camera. Select the most
suitable solution for your installation environment.
Mounting Solutions
Mount Types
Accessories
Surface Mount
Suitable when mounting the camera on flat and smooth surface, like ceilings
or walls. This solution directly installs the camera to the surface without
Installing the Camera on a Flat Surface
page 11 for more information.
Rough Surface
Mount
Suitable when mounting the camera on rough surfaces using an additional
surface mount plate.
PMAX-0802
Tilted Wall
Mount
Suitable when mounting the camera on high walls. The camera can be tilted
10 to capture a larger viewing angle below the camera and less on the
ceiling.
PMAX-0310
Pendant Mount
Suitable when mounting the camera on hard and high cielings.
SMAX-0053
PMAX-0101 PMAX-0103
SMAX-0051
PMAX-0101 PMAX-0102
