23
CopperHead PowerWafer
User Guide
MPS External PowerWafer Power Supply
The CopperHead MPS external power supply provides 95 watts of 12VDC power and fiber
connectivity from Base Station to Camera Unit equipped with a CopperHead PowerWafer.
Connectivity between the MPS unit to the camera can be configured using either a Hybrid
OpticalCON connector or a SMPTE 304M connector. The nominal distance between them is
240 meters (780 feet).
Connectivity between the MPS unit and Base Station uses "dry" fiber and can be configured
with a "dry" OpticalCON connector or two ST connectors. The MPS is powered locally with
standard AC power. The unit is free standing (see
MPS External PowerWafer Power Supply
on page 23).

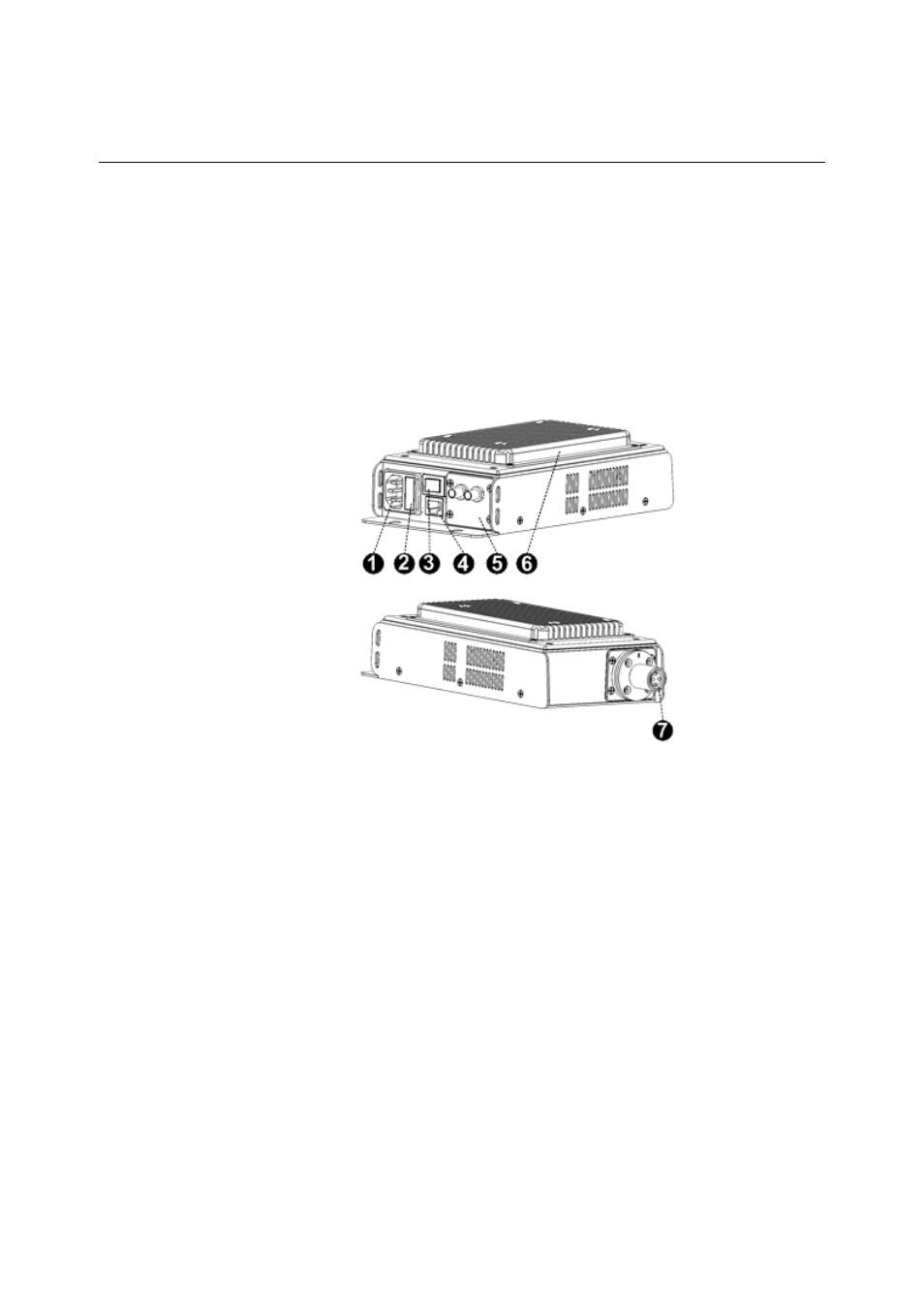

Fig. 3-11: MPS Power Supply, Front and Rear
• 1: AC Power Receptacle: 100-240V 50/60 Hz
• 2: Fuse compartment
Two 4 amp fuses (5 x 20mm).fuses are in operation at all times – both the AC Line Hot
and the AC Line Neutral are fused.
For more information, see Intercom Pinouts on page 41.
• 3: Power Switch
• 4: For Future Use (RJ45)
• 5: "Dry" Fiber Optic Connection to CopperHead Base Station
This removable plate can be equipped with two ST connectors or a "dry" OpticalCON
connector. See
Figure 3-12 .
• 6: Heat Sink
• 7: Powered Fiber Optic Connection to CopperHead Camera Unit
This removable plate can be equipped with a SMPTE 304M connector or a powered
OpticalCON connector. See
Figure 3-13 .
