EDIUS — User Reference Guide 103
Window Configuration
Window Configuration
EDIUS software can be used in multi- or single-monitor configurations.
Some layouts will likely be desirable in a single monitor configuration in
order to eliminate overlapping windows.
Note All EDIUS screen shots throughout this manual were taken on a single
monitor setup with a 1680x1050 resolution wide screen monitor. Other
monitor resolutions or configurations will result in displays that are similar,
but, not identical, to those depicted in this manual.
Multi-Monitor Layout
In a multi-monitor configuration using, for example, two monitors, the
Preview and Timeline windows will be displayed on one monitor and the
Asset Bin and Palette windows will be displayed on the second monitor.
Sample layouts are shown below in
Figure 81 and Figure 82 .

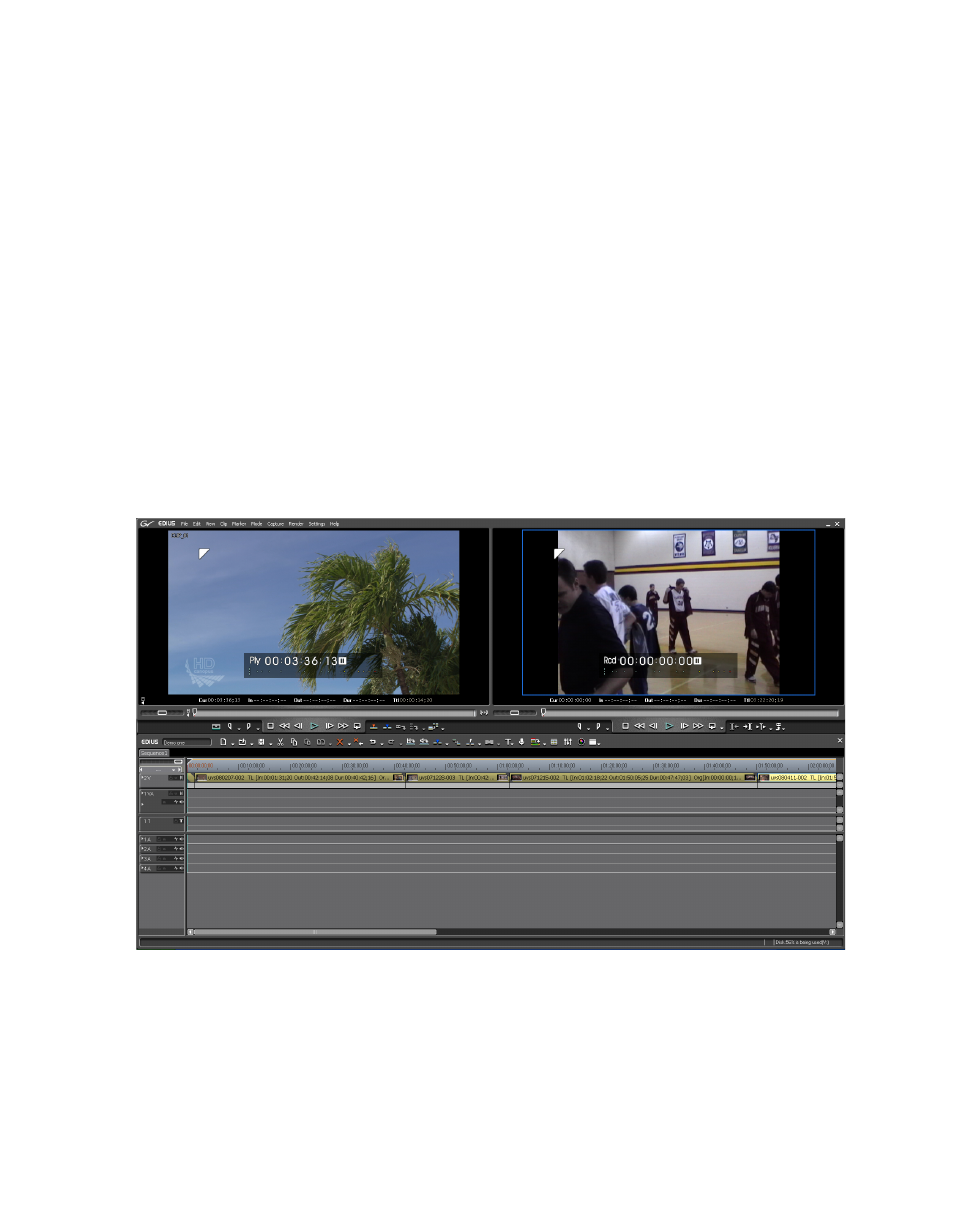

Figure 81. Dual-Monitor Sample Layout - Monitor One
The Preview window (upper portion of Figure 81 ) is comprised of the
Player and Recorder and their associated controls. For more information
concerning the operation of the player and recorder, see Player Operation
Buttons
on page 112 and Recorder Operation Buttons on page 115 .
