EDIUS — User Reference Guide 217
Capturing from a DV or HDV Device

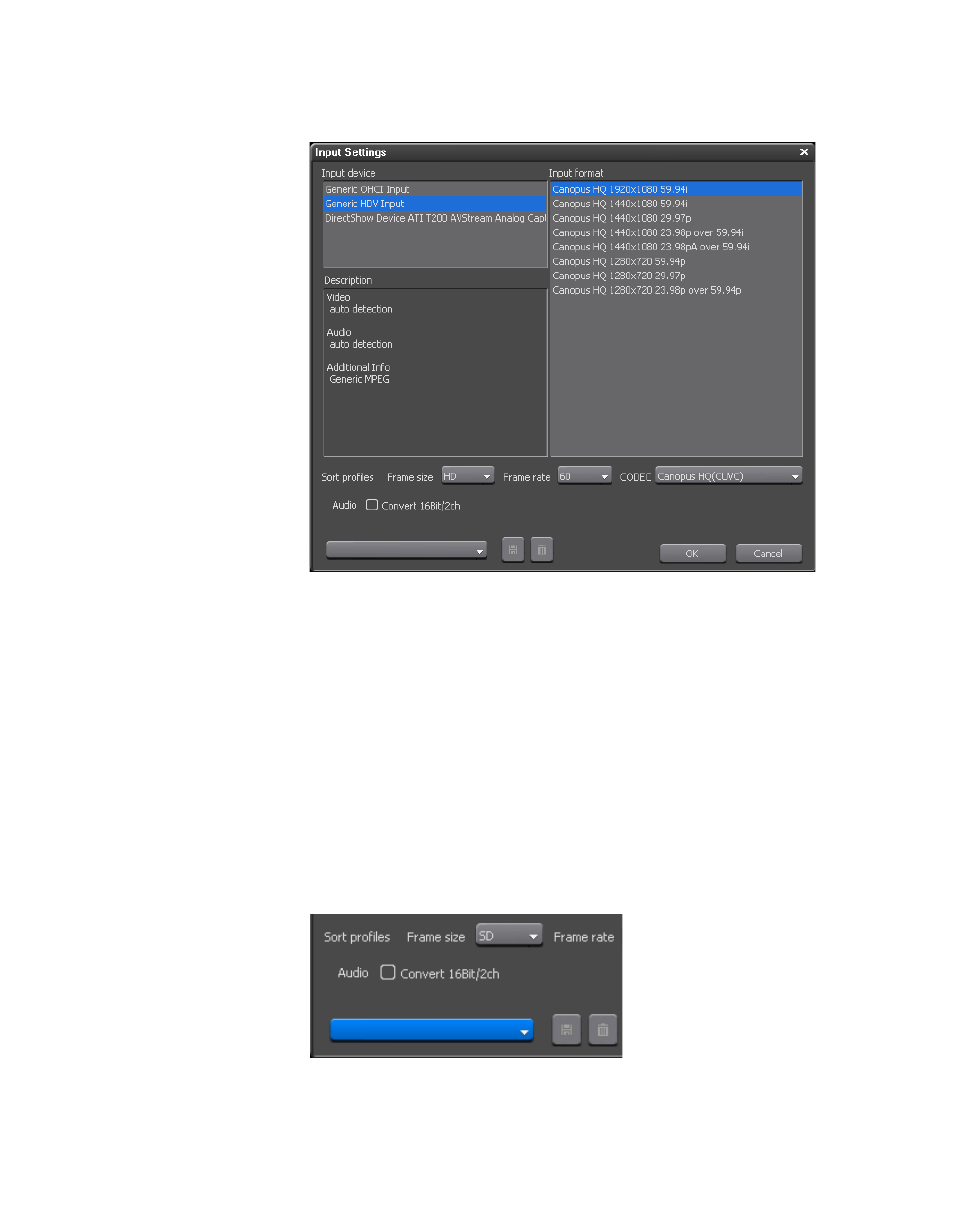

Figure 194. Sorted Input Formats
Registering Input Presets
The input settings selected for capture operation may be saved as an input
preset which may be recalled at the click of a button. To save input settings
as an input preset, do the following while in the Input Settings dialog.
1. Click the Input Preset drop-down list button (highlighted in blue in
Figure 195 ) if you wish to register the current settings as an input
preset. From the list, select the preset (1-8) to which to register the
current input settings.
Note The button will have no text (as shown in Figure 195 ) if the current settings
have not been assigned to an input preset.
Figure 195. Register Input Preset
