Stand-Alone Operation
Stand-Alone Router
Locks
The CP6464 has 12 function buttons. Two of the function buttons are locks:
Panel Lock
Pressing ‘Panel Lock’ disables the control panel. Only the Panel Lock button remains enabled.
Pressing it again re-enables the control panel.
When the control panel is locked, the lock button is bright red and the state of the entire control
panel is protected. Changes from the control panel are disabled. The panel lock button is low
tally green when the control panel is not locked.
Destination Lock
Destination lock prevents selecting another source for the currently selected destination. To
lock a destination,
1 Press the ‘Destination Mode’ button.
2 press the desired selection button.
3 Press ‘Destination Lock’.

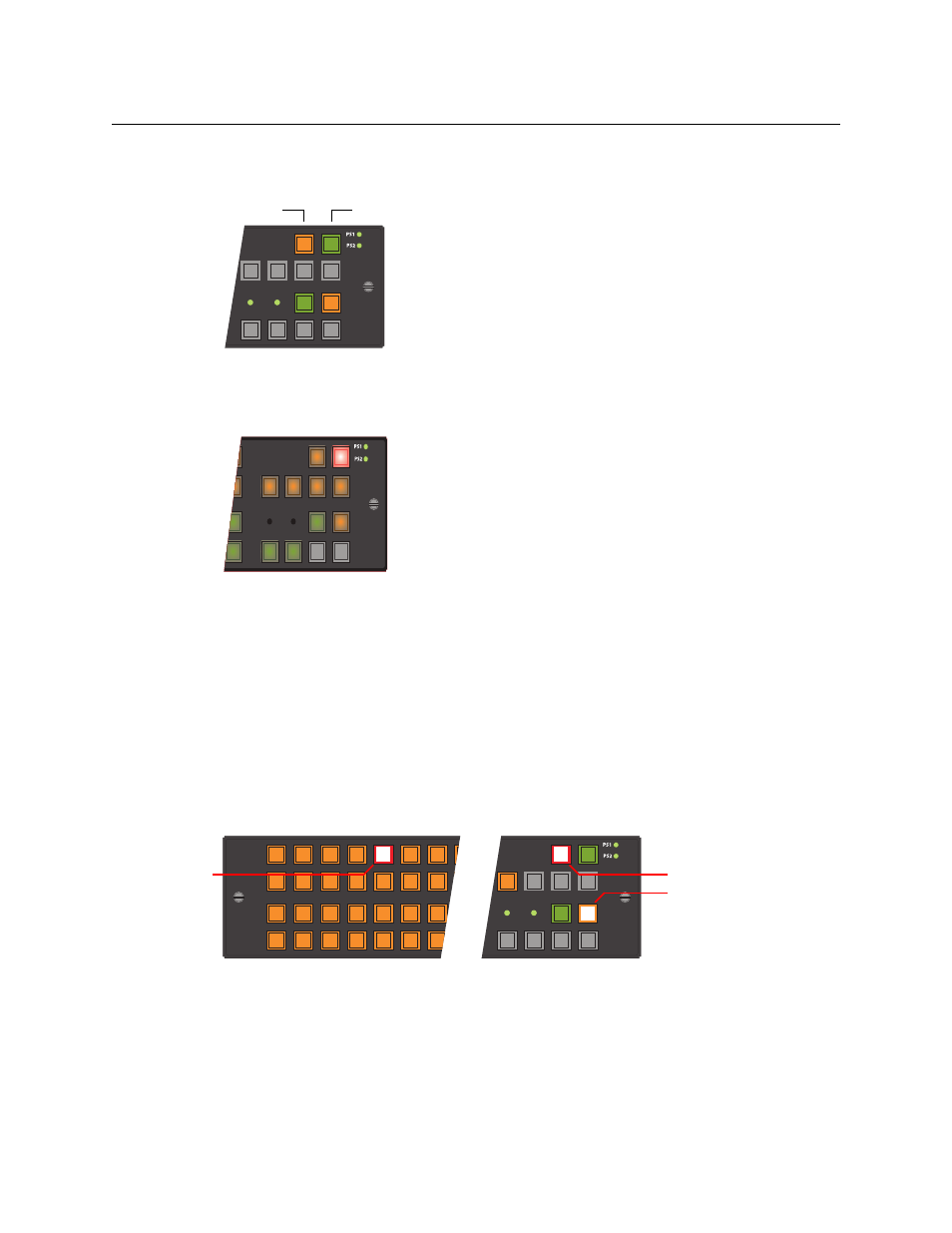

This sample shows destination 5 locked:
(Press ‘Source Mode’ to see the source that feeds the destination. The button for that source is
high-tally.)
If you subsequently press a button for a destination that is locked, the button goes high tally
(red), and the Destination Lock button goes high tally, as this example shows.
Other destinations remain unchanged, whether locked or unlocked, and specifically, you can
route the source that feeds a locked destination to any number of other destinations.
PNL
LOCK
DST
LOCK
DST
MODE
SRC
MODE
Panel Lock Destination Lock
64
48
32
16
PL DL
49 50 51 52 53 54 55
33 34 35 36 37 38 39
17 18 19 20 21 22 23
1 2 3 4 5 6 7
MON
1
PNL
LOCK
DST
LOCK
DST
MODE
SRC
MODE
1. Destination Mode
3. Destination Lock 2. Destination
