CRSC Network Operation
Performing Takes
Example
—
Normal Take in Enhanced Mode

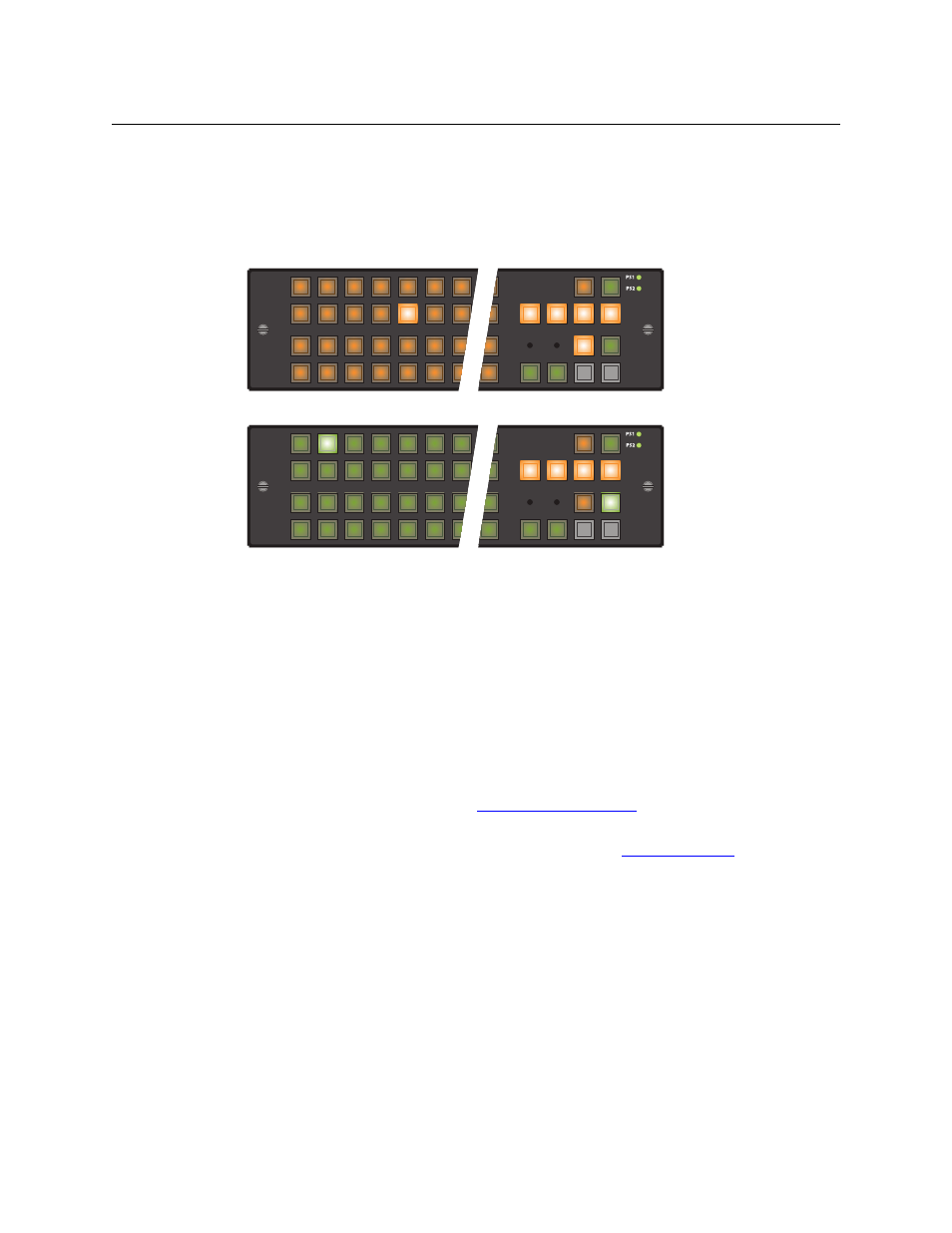

You want to route source S to destination D.
1 Do
not press any level buttons. Doing so initiates a breakaway for the previously chosen des-
tination.
2 Switch to the page containing destination D. Press destination D.
3 Switch to the page containing source S. Press source S.
Pressing another destination button (always) starts a new take.
In enhanced mode, a normal take occurs on all the levels defined for the destination.
Breakaway Takes
A breakaway takes multiple sources, on different levels, to a destination.
To perform a breakaway, first press a destination button. Then alternately press level buttons
(one or more) and then a source button, repeating for any levels for which you want to specify a
source. The takes occurs immediately when you press the source buttons. The previous route
(for that destination) is lost (on the levels you selected).
Please note:
•
Takes on CP6401s are different. See
•
If a destination is locked, the destination button is usually red, high-tally when selected. You
cannot perform a take for a destination that is locked. See
