LDK 4488, LDK 4489 SuperXpander, Xpander User’s Guide (v5.0) 33
Chapter 4 - Control panel
4.3 Panel controls
4.3.1 Camera menu buttons
These Up, Down and Select buttons are used to navigate and select functions in the camera
menu system. The camera menu is displayed on the viewfinder. These buttons operate in the
same way as the Rotary and Select buttons on the front of the camera.

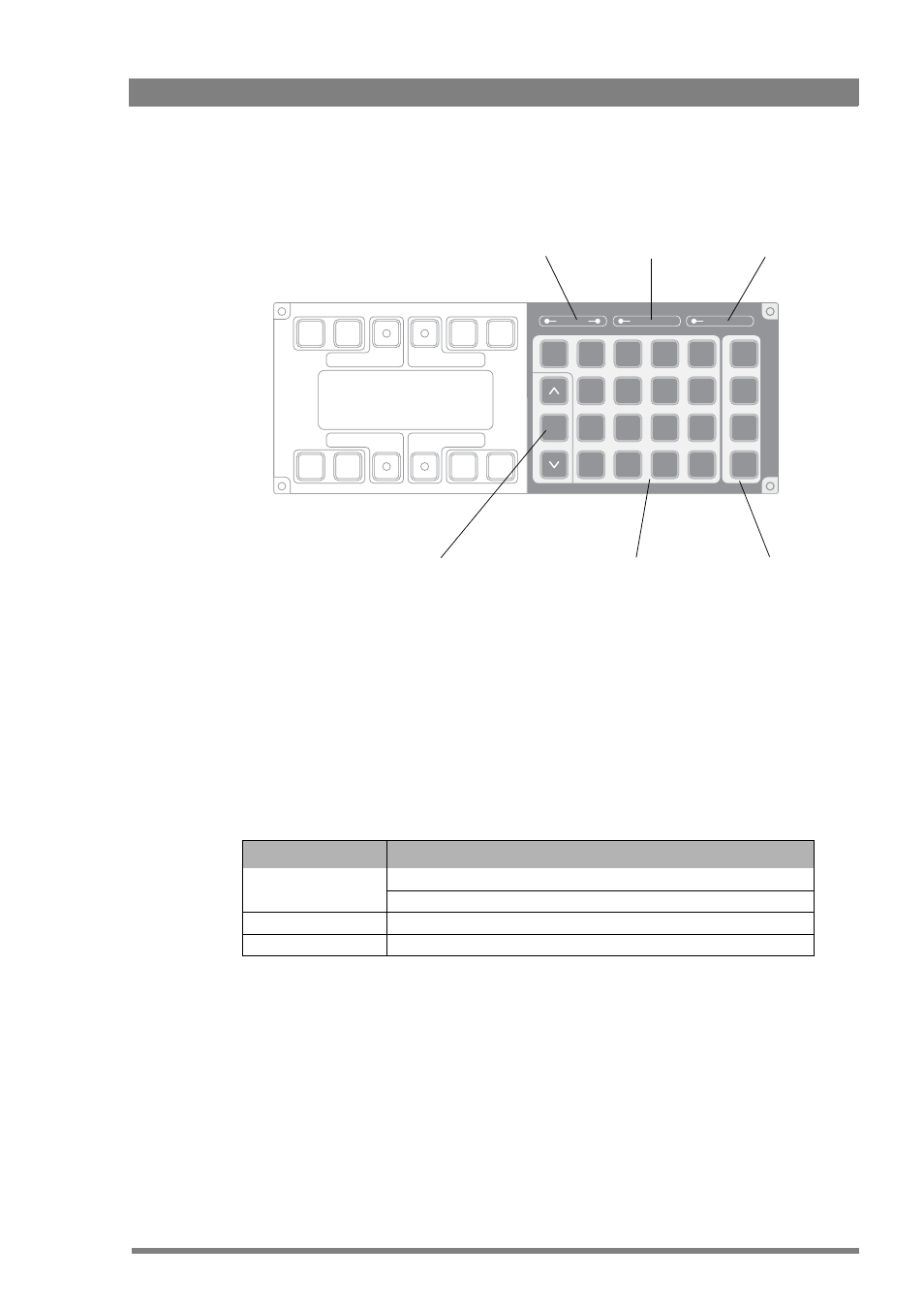

4.3.2 Indicators
The three indicators at the top of the panel show the following:
MENU
1
MENU
2
+ - PREV NEXT
MENU
3
MENU
4
ON AIR
DIM
INDI-
CATOR
VF
ZOOM Y/-Y Y/EXT
MARKER TEXT
ON AIR POWER REMOTE
R/-R EXT 1
SELECT CENTER
CROSS
VF
DETAIL G/-G EXT 2
SAFE
AREA
FOCUS
ASSIST B/-B
EXT
ASPECT
RATIO
PROG
ENG
PROD
CALL
V
F
I
N
T
E
R
C
O
M
remote
indicator
power
indicator
on air/iso
indicators
viewfinder
controls
intercom
buttons
camera menu
buttons
Indicator Description
On Air Lights RED when the camera is on air.
Lights YELLOW when the ISO signal is activated.
Power Lights when the SuperXpander is receiving power.
Remote Lights when the camera is in the remote control mode.
