40 LDK 4488, LDK 4489 SuperXpander, Xpander User’s Guide (v5.0)

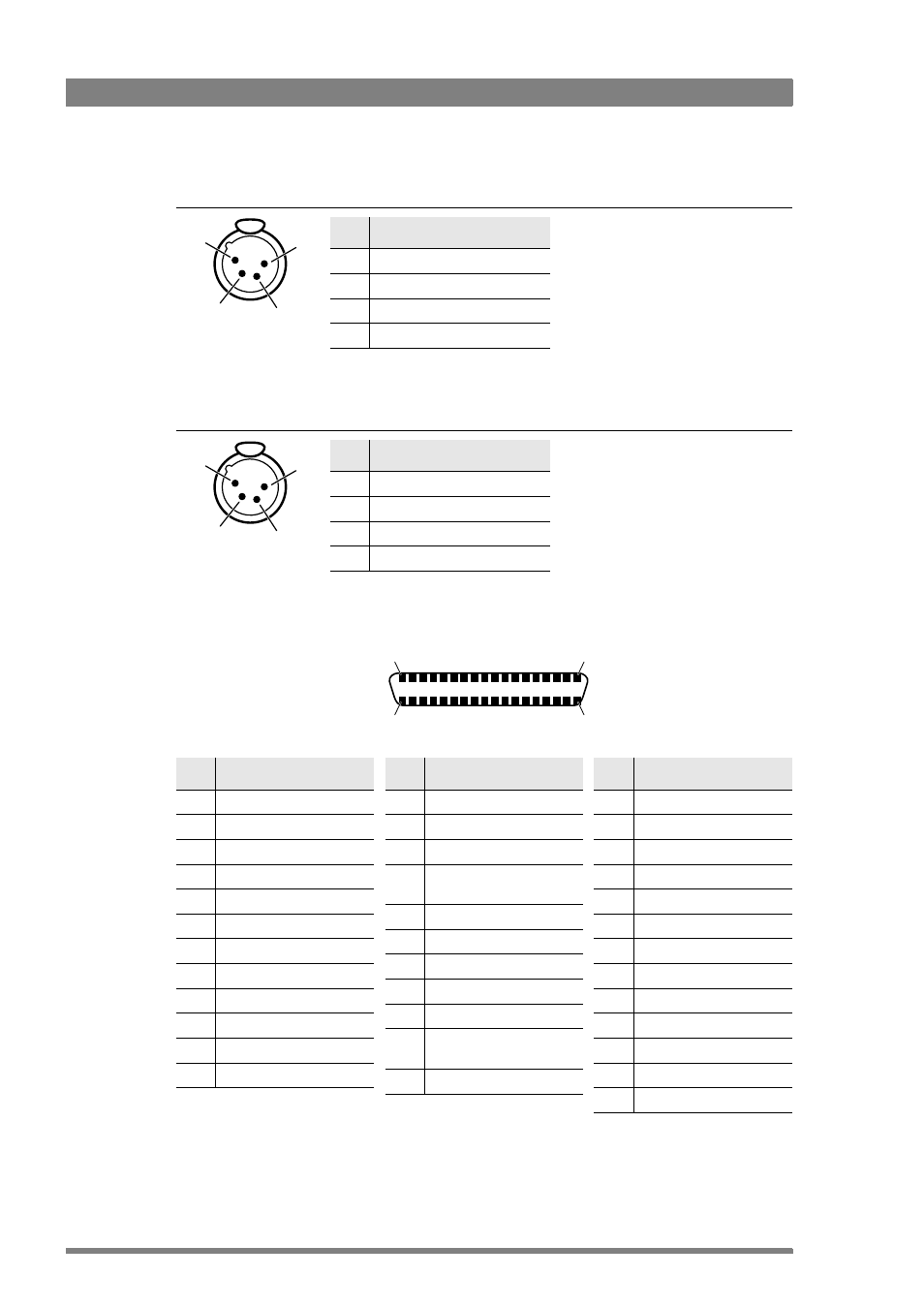

Chapter 6 - Connectors
6.1.1 Fixed utility power output (option)
6.1.2 Variable utility power output (option, SuperXpander only)
6.1.3 Lens interface connector
XLR 4-pin male
Pin Description
1 GND
2 no connection
3 no connection
4 +15 VDC
3
2
4
1
*) variable, can be set in the operation
panel.
XLR 4-pin male
Pin Description
1 GND
2 no connection
3 no connection
4 0 to 12 VDC*)
3
2
4
1
Pin Description
1 no connection
2 no connection
3 no connection
4 Lens power (+15 VDC)
5 Lens power return
6 GND
7 Housing
8 Re A or RXD
9 Re B
10 Re C or Aspect ratio follow
11 Heater
12 Iris follow
Pin Description
13 Zoom control
14 Ext switch 1
15 Ext switch 2
16 Zoom/focus local/remote
or Exit pupil pos
17 Iris control
18 Iris auto/remote or TxD
19 Zoom control
20 Focus control
21 Tally control
22 Zoom/focus local/remote
or Exit pupil pos
23 no connection
36-pin Centronics connector
18
36 19
1
Pin Description
24 Lens ID0
25 Lens ID1
26 Lens ID2
27 Lens ID3
28 no connection
29 no connection
30 Focus follow
31 Image stabilizer
32 no connection
33 ENG switch
34 PROD switch
35 no connection
36 no connection
