42 LDK 4488, LDK 4489 SuperXpander, Xpander User’s Guide (v5.0)

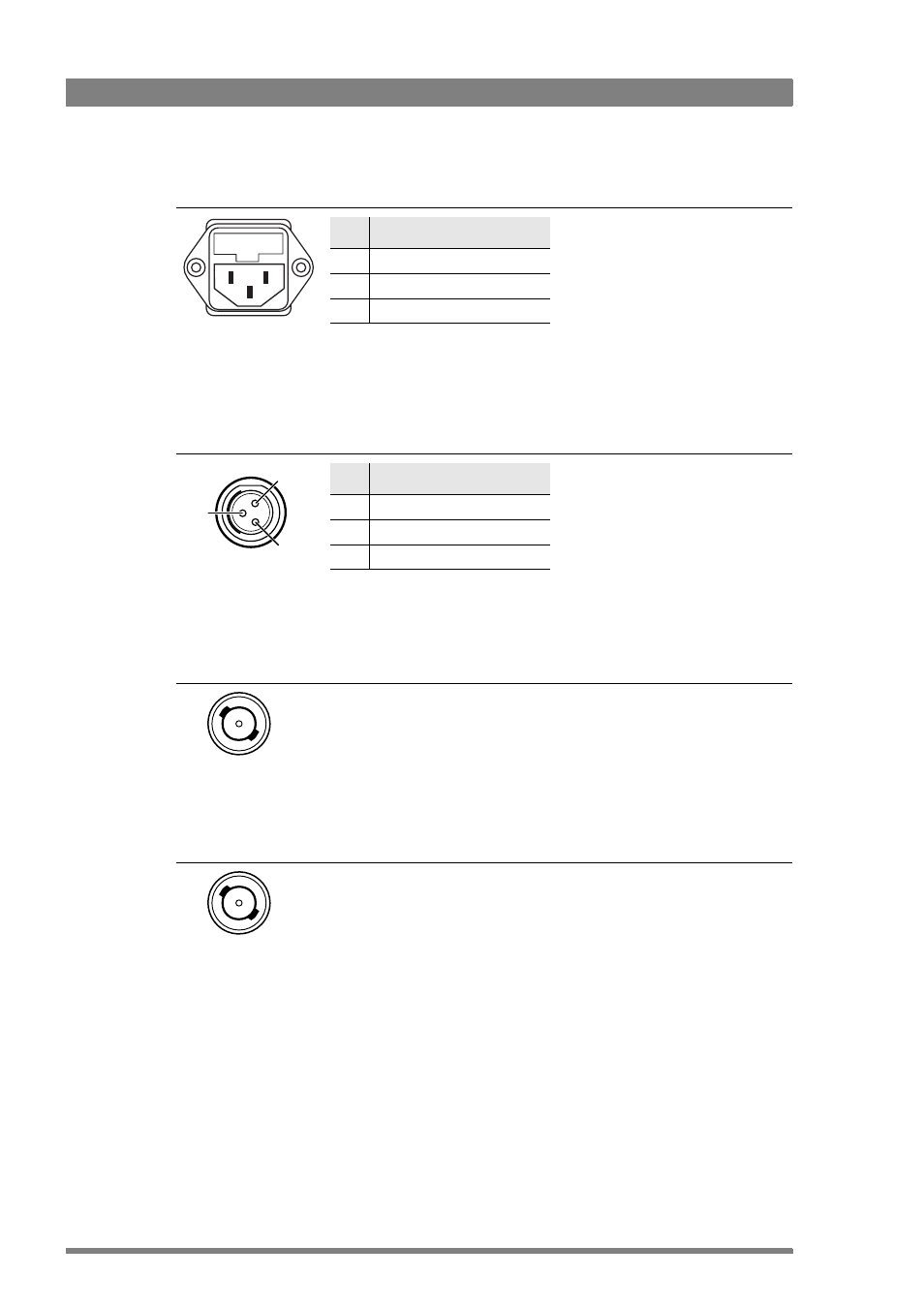

Chapter 6 - Connectors
6.2.1 Mains power supply input socket
6.2.2 Script light connector
6.2.3 Viewfinder component outputs (3x)
6.2.4 External CVBS output
Mains input voltage: 100 to 240 VAC
(auto ranging)
Mains frequency: 50 to 60 Hz
Fuses (2): T4.0 A H250V
3-pin Euro
connector
Pin Description
1 Neutral
2 Phase
3 Earth
3
2 1
Fischer 3-pin female
connector
Pin Description
1 +12 VDC (max. 6 W)
2 GND
3 Shield 3
1
2
NOTE: the script light connector is
different than the one on the camera
adaptor!
Manufacturer/type: Fischer DBP 103
A052-28
These 3 BNC sockets provide video output (component video) of the viewfinder
signal.
Y (1.0 Vpp with sync), Pr (0.7 Vpp), Pb (0.7 Vpp);
BNC connector
This BNC socket provides CVBS analog video output (1.0 Vpp)
The source for this output (EXT1 or EXT2) can be selected on the control panel
of the SuperXpander or in the camera (Xpander)
BNC connector
