HEIDENHAIN MANUALplus 620 119
3.9 Pr
ogr
am Run mode

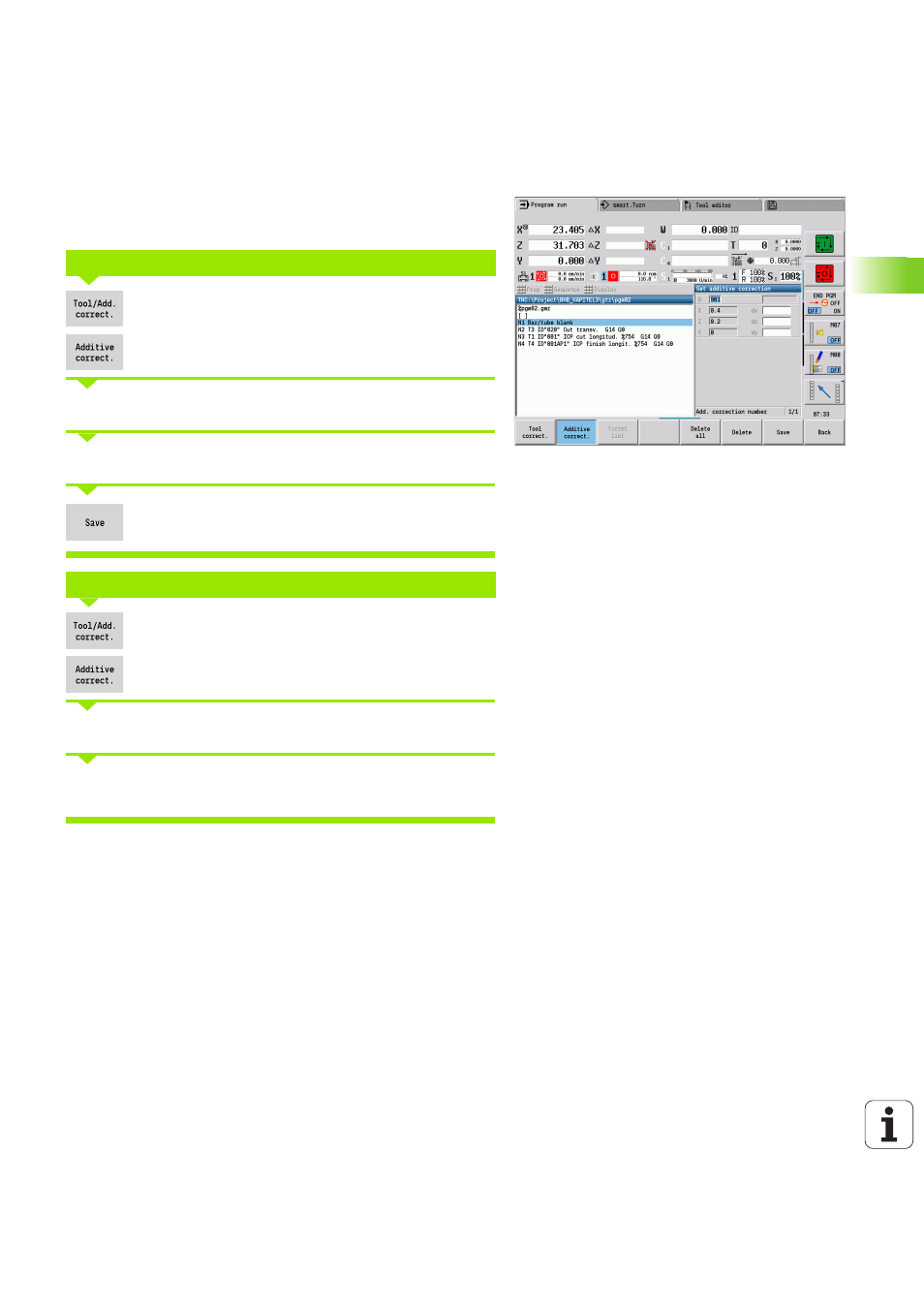

Additive compensation
The MANUALplus manages 16 additive compensation values. You
edit the compensation values in the Program Run mode and activate
them with G149 in a smart.Turn program or in ICP finishing cycles.
Activate the additive compensation
Enter the number of the additive compensation
Enter the compensation values
Press the Save soft key for the valid compensation
data to be displayed in the input window and saved
Activate the additive compensation
Enter the number of the additive compensation
Place the cursor in the next input field—MANUALplus displays the
valid compensation values
ENTERING ADDITIVE COMPENSATION
READING ADDITIVE COMPENSATION
