398 ICP programming
5.5 Editing ICP cont
ours

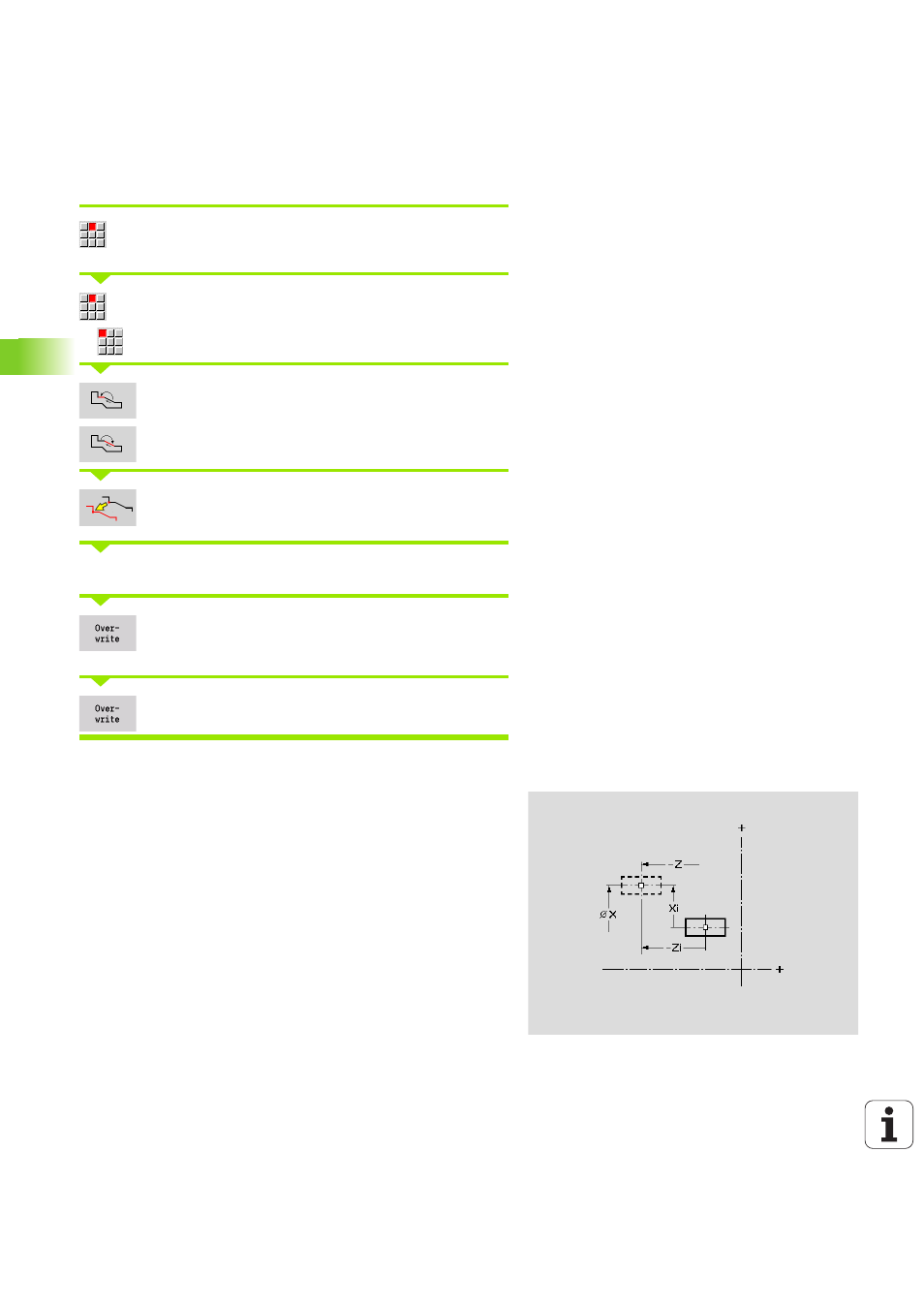

Shifting a contour
Press the Manipulate menu key. The menu displays
functions for trimming, editing and deleting contours.
Press the menu keys Edit ...
... Contour element .
Select the contour element to be edited.
Present the selected contour element for moving.
Enter the new starting point of the reference element.
Assume the new starting point (= new position). The
MANUALplus shows the shifted contour.
Confirm the new position for the contour.
Transformations – Shifting
With this function, you can move a contour by entering incremental or
absolute coordinates.
Parameters
X
Target point
Z Target point
Xi Target point – incremental
Zi Target point – incremental
H Original (only with C-axis contours):
 0: Delete: Original contour is deleted
 1: Copy: Original contour is maintained
ID Contour name (only with C-axis contours)
