HEIDENHAIN MANUALplus 620
93
3.4 Set
ting up a t
ool list
Tool life monitoring
If desired, you can have the MANUALplus monitor tool life or the
number of parts that are produced with a specific tool.
The tool life monitoring function adds the time a tool is used at feed
rate. The quantity monitoring counts the number of finished parts. The
count is compared with the entry in the tool data.

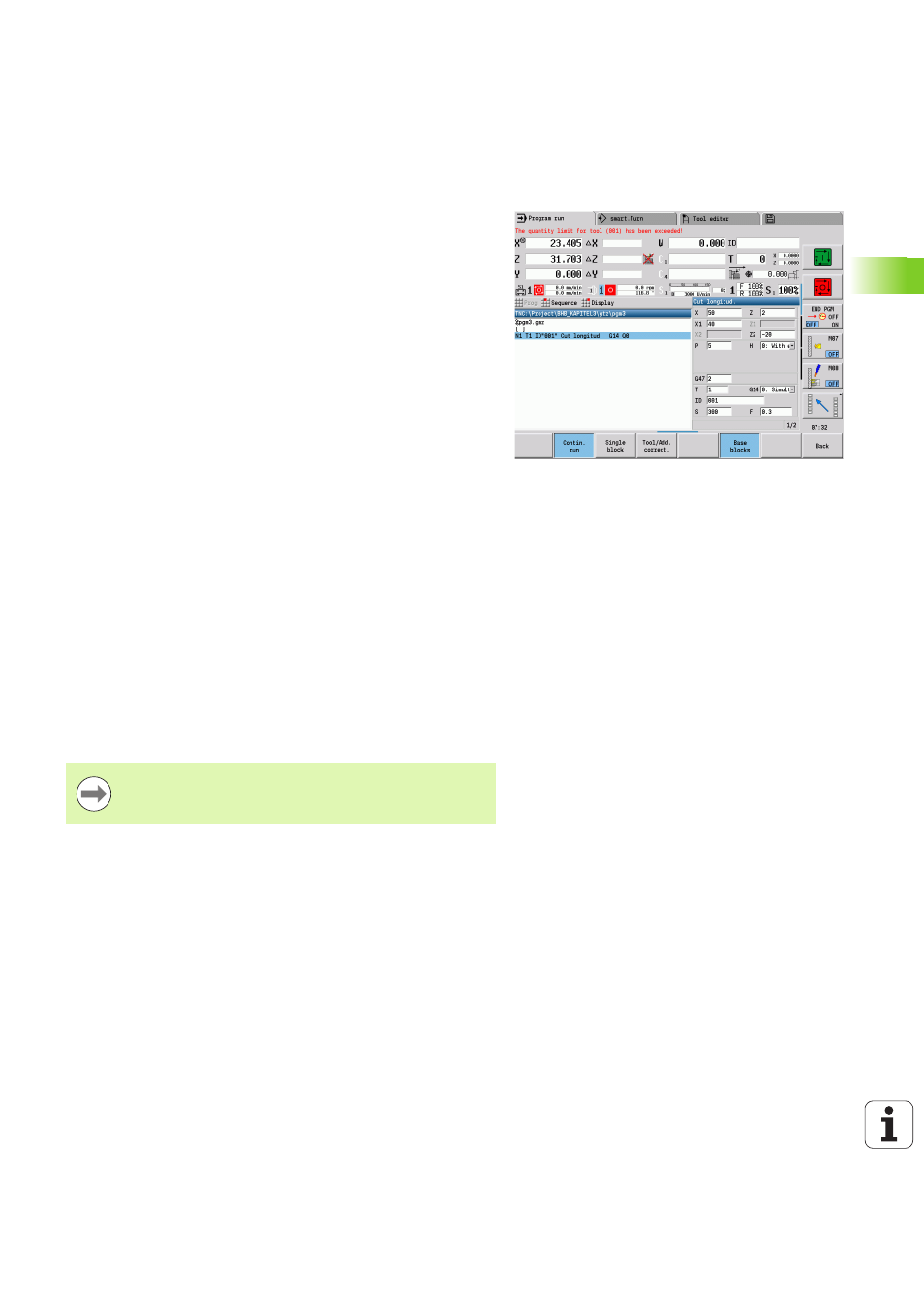

As soon as the tool life expires or the programmed quantity is reached,
the MANUALplus sets the diagnostic bit 1. This causes an error
message to be issued the next time the tool is called. If no
replacement tool is available, the program will be stopped.
For Teach-in programs, the simple tool life monitoring is available.
Here the MANUALplus informs you when a tool is worn out.
In smart.Turn and DIN PLUS programs, you have the choice
between the simple tool life monitoring and the tool life
monitoring with replacement tools option. If you use
replacement tools, the MANUALplus automatically inserts the
"sister tool" as soon as the tool is worn-out. The MANUALplus does
not stop the program run until the last tool of the tool sequence of
exchange is worn out.
You activate/deactivate the tool life management in the parameter
"System/General settings for automatic operation/user parameter tool
life."
The MANUALplus manages the type of monitoring, the "tool life/
remaining tool life" and the "maximum number of pieces/remaining
number of pieces" in the diagnostic bits of the tool data. You can edit
and display the diagnostic bits and the tool life in the tool editor (see
“Editing tool-life data” auf Seite 511).
You can define replacement tools when setting up the turret in
smart.Turn. The "interchange chain" can contain more than one
replacement tool. The interchange chain is part of the NC program
(see chapter titled "Tool Programming" in the "smart.Turn and DIN
Programming" User's Manual).
You must update the data on tool life and number of
pieces in the "tool management" mode when you replace
the insert of a tool.
