Additive compensation
The CNC PILOT manages 16 additive compensation values. You edit
the compensation values in the Program Run mode and activate it with
G149 in a smart.Turn program or in ICP finishing cycles.
Activate the additive compensation
Enter the number of the additive compensation
Enter the compensation values
Press the Save soft key for the valid compensation
data to be displayed in the input window and saved
Activate the additive compensation
Enter the number of the additive compensation
Place the cursor in the next input field—CNC PILOT displays the valid
compensation values

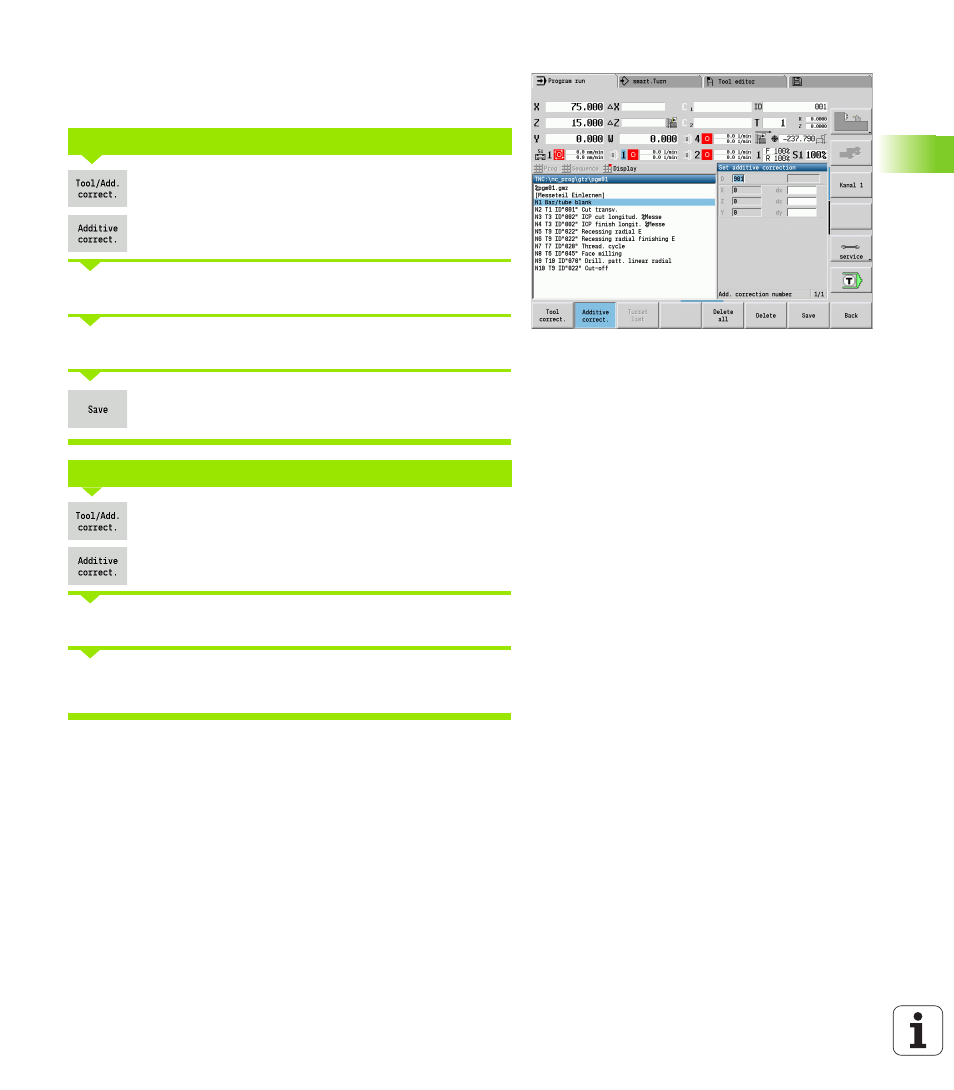

ENTERING ADDITIVE COMPENSATION
READING ADDITIVE COMPENSATION
