396 ICP programming
6.8 Cont
our elements of a t
u
rn
ing cont
our

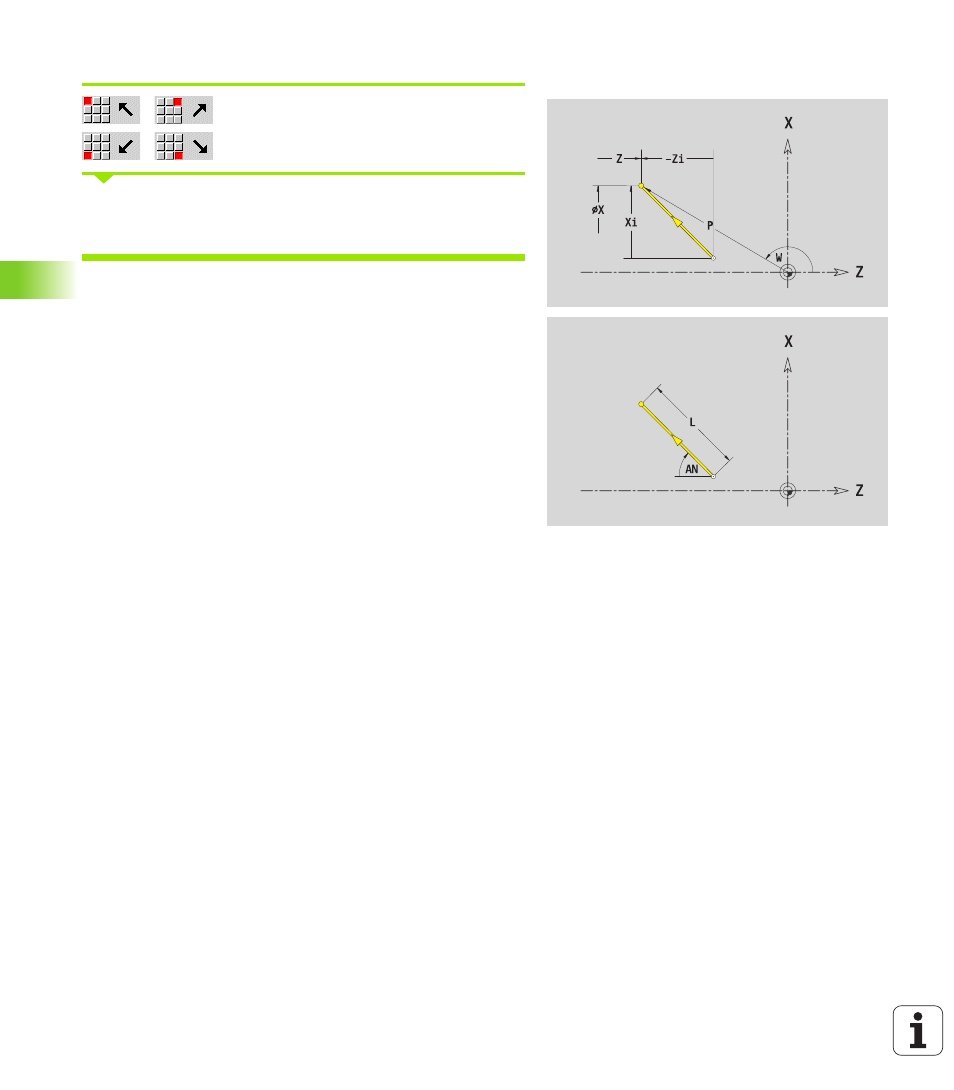

Line at angle
Select the line direction.
Enter the line dimensions and define the transition to the next
element. Always enter the angle AN (<=90°) within the selected
quadrant.
In smart.Turn, ICP generates a G1.
Parameters
X, Z
Target point
Xi, Zi: Incremental target point (distance from starting point to
target point)
W Polar target point (angle)
P Polar target point (radius)
L Length of the line
AN Angle to Z axis
ANn Angle to the subsequent element
ANp Angle to the previous element
U, F, D, FP, IC, KC, HC: See machining attributes on page 373
