422 ICP programming
6.12 F
a
ce cont
ours in smar
t.T
u
rn

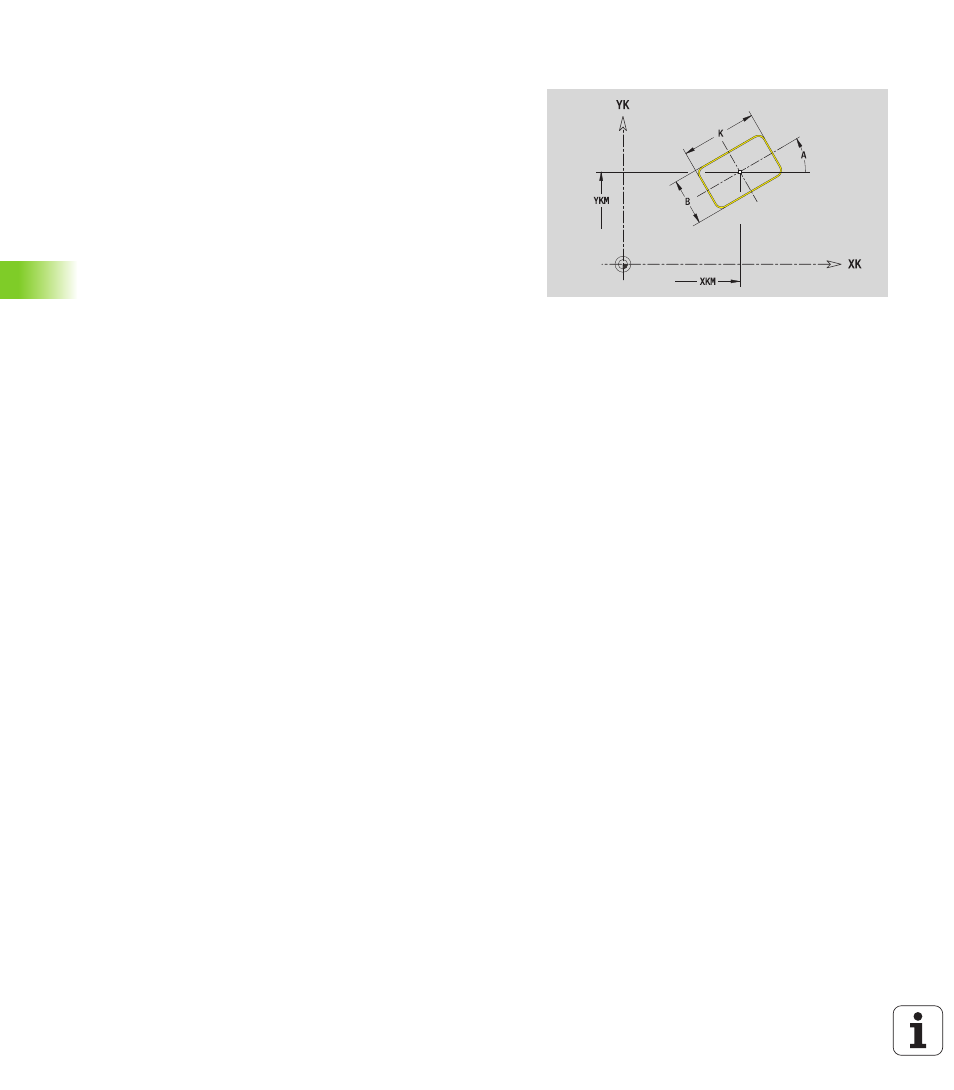

Rectangle on face
You can find the reference dimension ZR with the "select reference
plane" function (see page 418).
ICP generates:
 The FRONT section code with the reference dimension parameter.
In nested contours, ICP generates only one section code.
 A G308 with the parameters contour name and milling depth.
 A G305 with the parameters of the figure.
 A G309.
Reference data of face
ID
Contour name
PT Milling depth
ZR Reference dimension
Parameters of figure
XKM, YKM Center of figure (Cartesian coordinates)
A
Position angle (reference: XK axis)
K Length
B Width
BR Rounding arc
