458 ICP programming
6.15 Cont
ours in the YZ plane

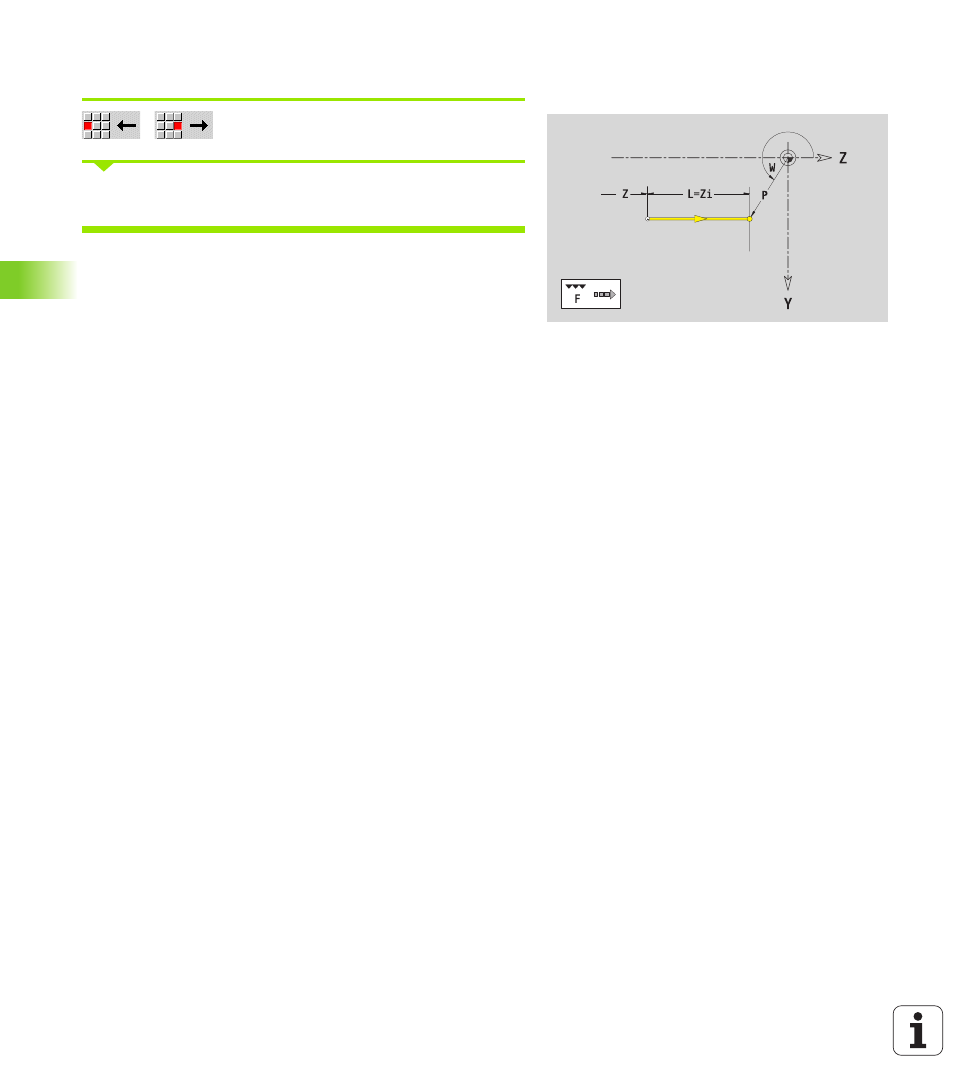

Horizontal lines in YZ plane
Select the line direction.
Enter the line dimensions and define the transition to the next
element.
In smart.Turn, ICP generates a G181.
Parameters
Z
Target point
Zi Incremental target point (distance from starting point to
target point)
W Polar target point (angle)
P Polar target point
L Length of line
F: See machining attributes on page 373
