5 Installation and Uninstallation Procedure
34 YASKAWA ELECTRIC TOBP C730600 55D 1000-Series Option PS-A10 Installation Manual
■ Uninstallation Method A
Insert the blade of a straight-edge screwdriver as shown in Figure 32 , and gently slide the
option in the direction indicated by the arrow.
NOTICE: Do not use excessive force when removing the option. Failure to comply can damage the cable
and the connector.
NOTICE: For Z1000 drives, first remove the screw used to fasten the option into place.

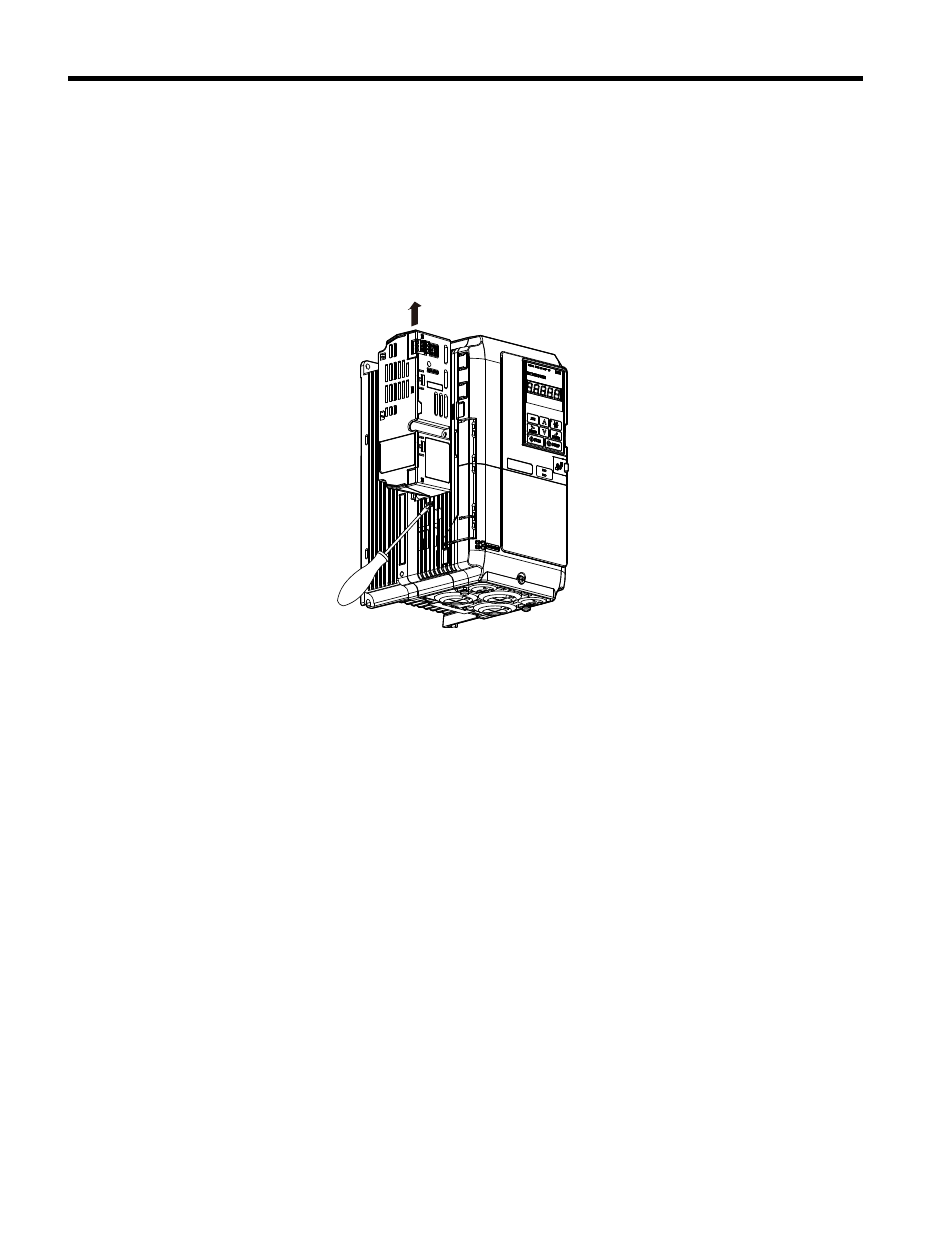

Figure 32
Figure 32 Uninstallation Method A
