3-INSTALLATION AND ASSEMBLY
Technical Dept. - All rights reserved - Reproduction is prohibited
Pay utmost attention when handling the panels connected to the relative wires.
The wires must be kept away from heat and where they cannot be damaged if the product is extracted.
Correct operation requires the flat wire and the wire of the switch to be kept away from each other when passing
them through, following different routes.
Never force the connector.
Do not bend and/or twist the wires.
Do not modify the connectors, the wires or the supports of the panels.
ASSEMBLING THE DOOR
Once the electrical wiring is complete, run a test operation before fitting the door of the hood.

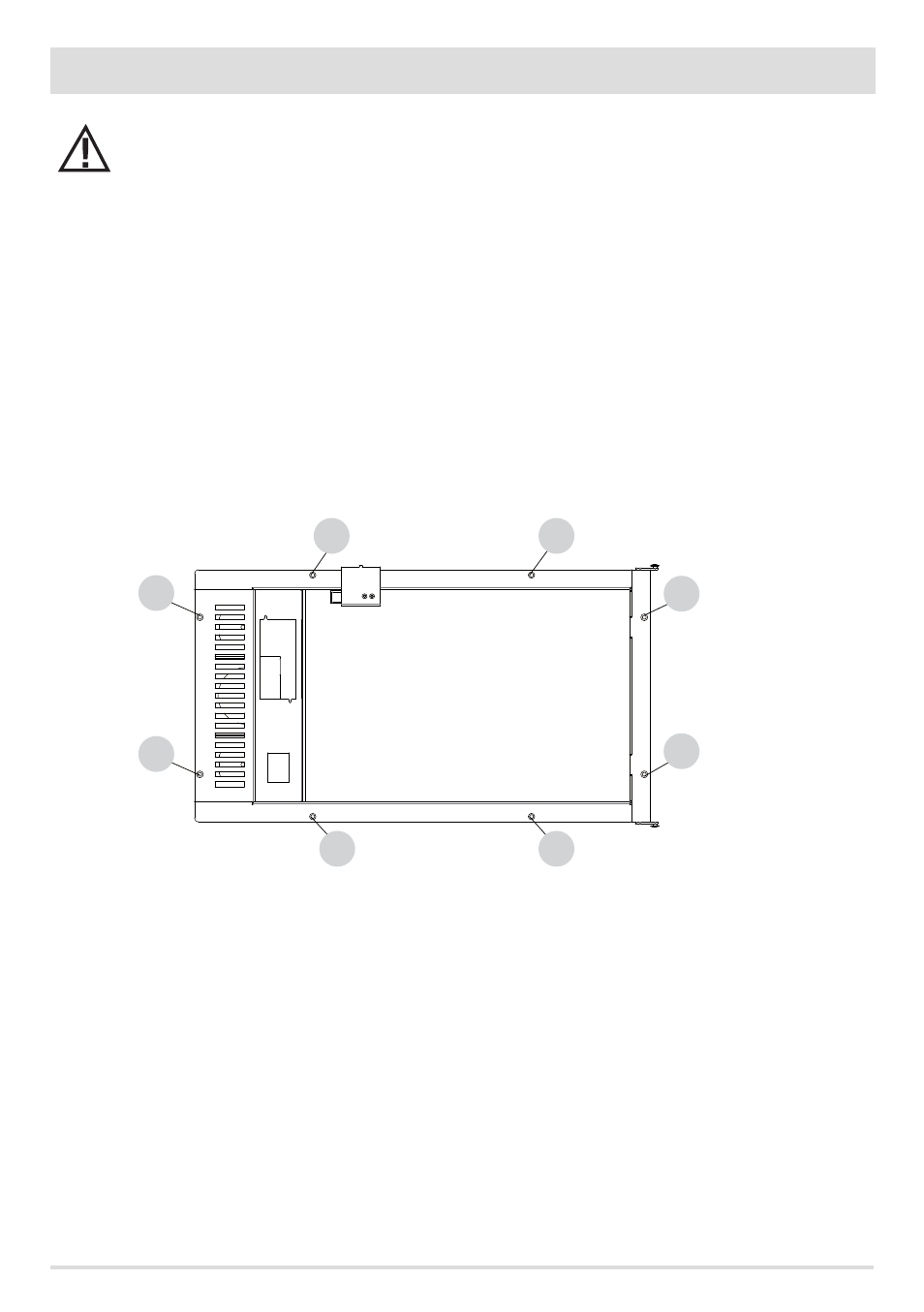

If the test is successful, fasten the door to the hood with four screws, using the four holes on the frame of the door itself marked with the
letter (B).
The holes marked on the horizontal profiles of the door (A) are used to fasten the frame of the door to the frame of the chute, in order to
secure the two parts by closing the wall of the hood in the middle.
A rectangular hole must be made on the hood in advance, at a height that is determined by how the optional support has been installed
or how the masonry rise has been built.
OPENING/CLOSING THE PELLET DOOR
The door closes by means of pressure and therefore has no handles or knobs.
The door is opened by pressing the top left corner. It will lock or unlock with the closing device on the frame of the door when this is
pressed.
