10-WIRING DIAGRAMS
Technical Dept. - All rights reserved - Reproduction is prohibited

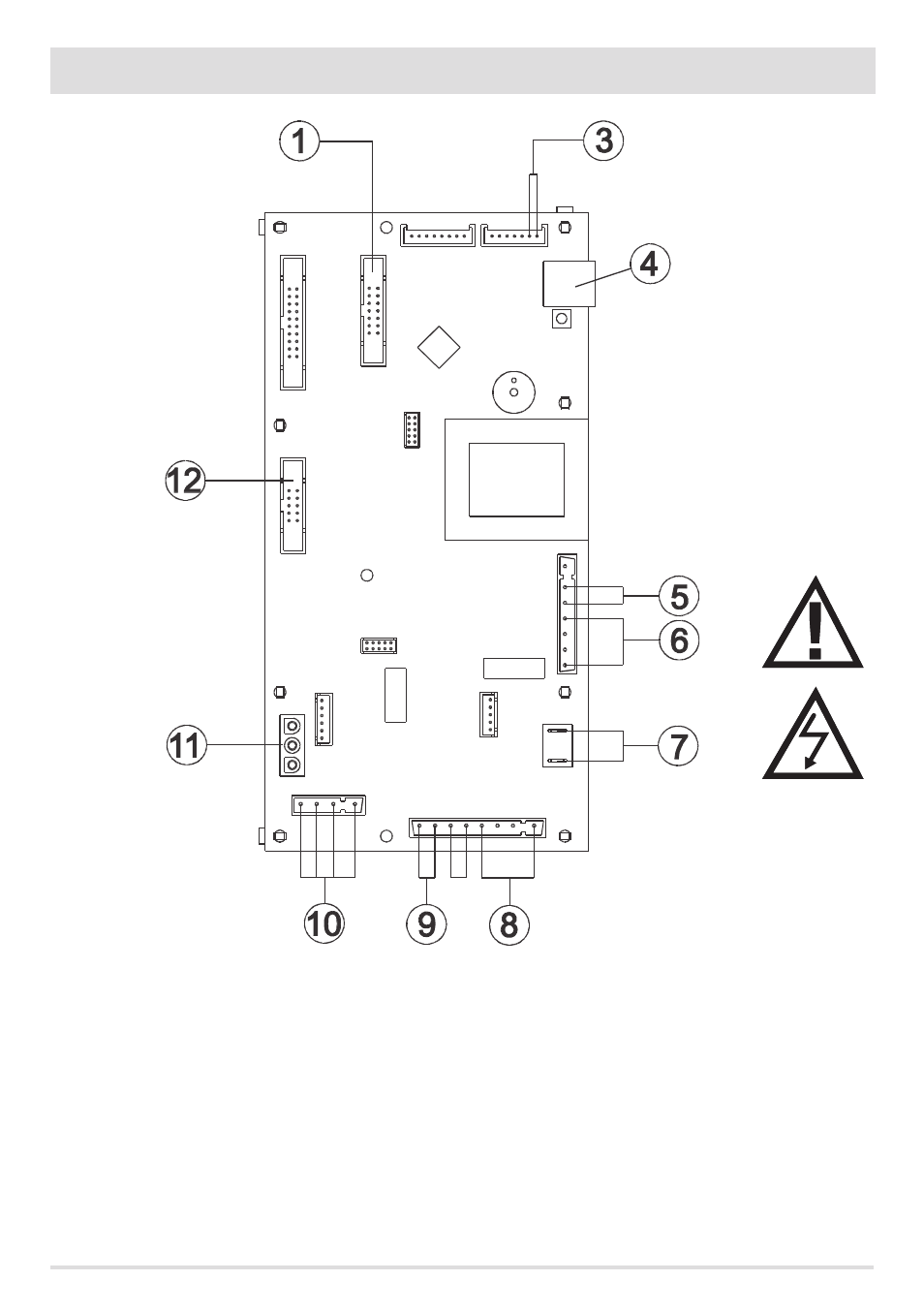

MOTHERBOARD WIRING KEY
1. CONTROL PANEL
3. SMOKE PROBE
4. MODEM CONNECTION
5. SWITCH
6. SPARK PLUG
7. SMOKE EXPULSION FAN
8. GEAR MOTOR
9. CONTACT THERMOSTAT
10. AIR FAN
11. SMOKE EXPULSION FAN REV CONTROL
12. AIR DOOR PROBE
N.B. The wiring of the individual components is fitted with pre-wired connectors of different sizes.
