5.3.4.3. Image Position Submenu
(RGB only) Use the Image Position options to center an RGB picture horizontally or
vertically on the screen. Note: Changing the resolution, source, or cycling power will
reset any adjustments to this submenu’s settings.
Select the Image AdjustAdvancedImage Position options and then press
ENTER.

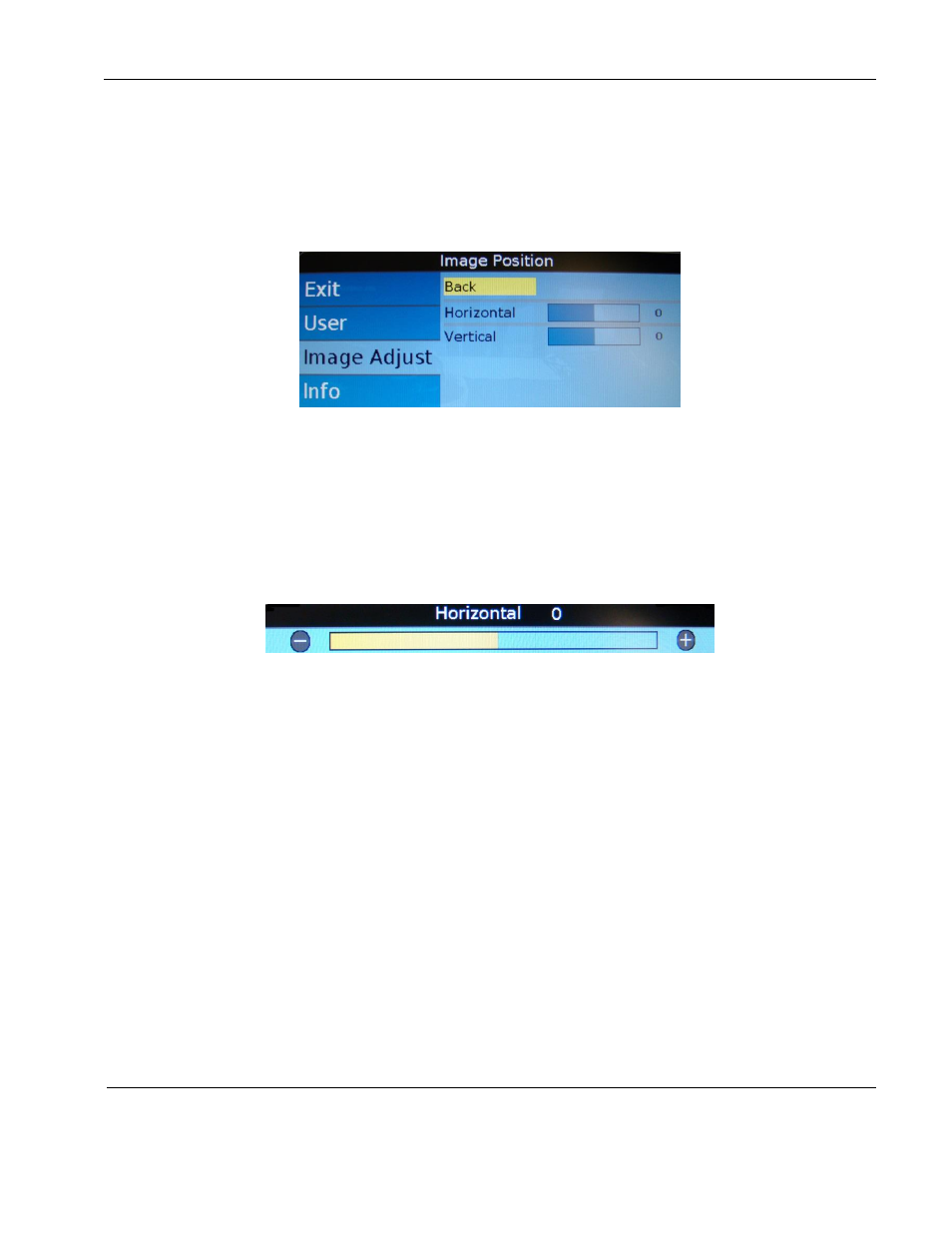

Figure 14 Image Position option
5.3.4.3.1. Horizontal and Vertical Controls
(RGB only) From the Image AdjustAdvancedImage Position submenu, press
the
▼ button to choose either Horizontal or Vertical, and then press ENTER to open
a control bar, similar to Figure 15 shown below.
Press the ◄ button to shift the picture left/up or the ► button to shift it to the
right/down.
Press ENTER to set the phase value and close the control bar.
Figure 15 Sample image positioning control bar
5.3.4.4. Auto Adjust
(RGB only) Use Auto Adjust when the RGB source is active to force the display to
evaluate the RGB signals and ensure that it is interpreting them correctly. To perform
an Auto Adjust within the OSD, select the option and press ENTER. (From the
remote, close the OSD and press the AUTO button.) The screen will go black briefly
while the signals adjust.
