6.6.2. Constant Mode
Constant enables you to specify the two sources the monitor will switch between when
the constant switch goes between an open state and a ground state.
Highlight TechnicianSource ModeSource Select and then press ENTER.
Select Constant and press ENTER. Press ▼ to select Open and then press ENTER.
Select which video input will be set to open and then press ENTER.
Press ▼ to select Ground and then press ENTER.
Select which video input will be set to ground and then press ENTER.

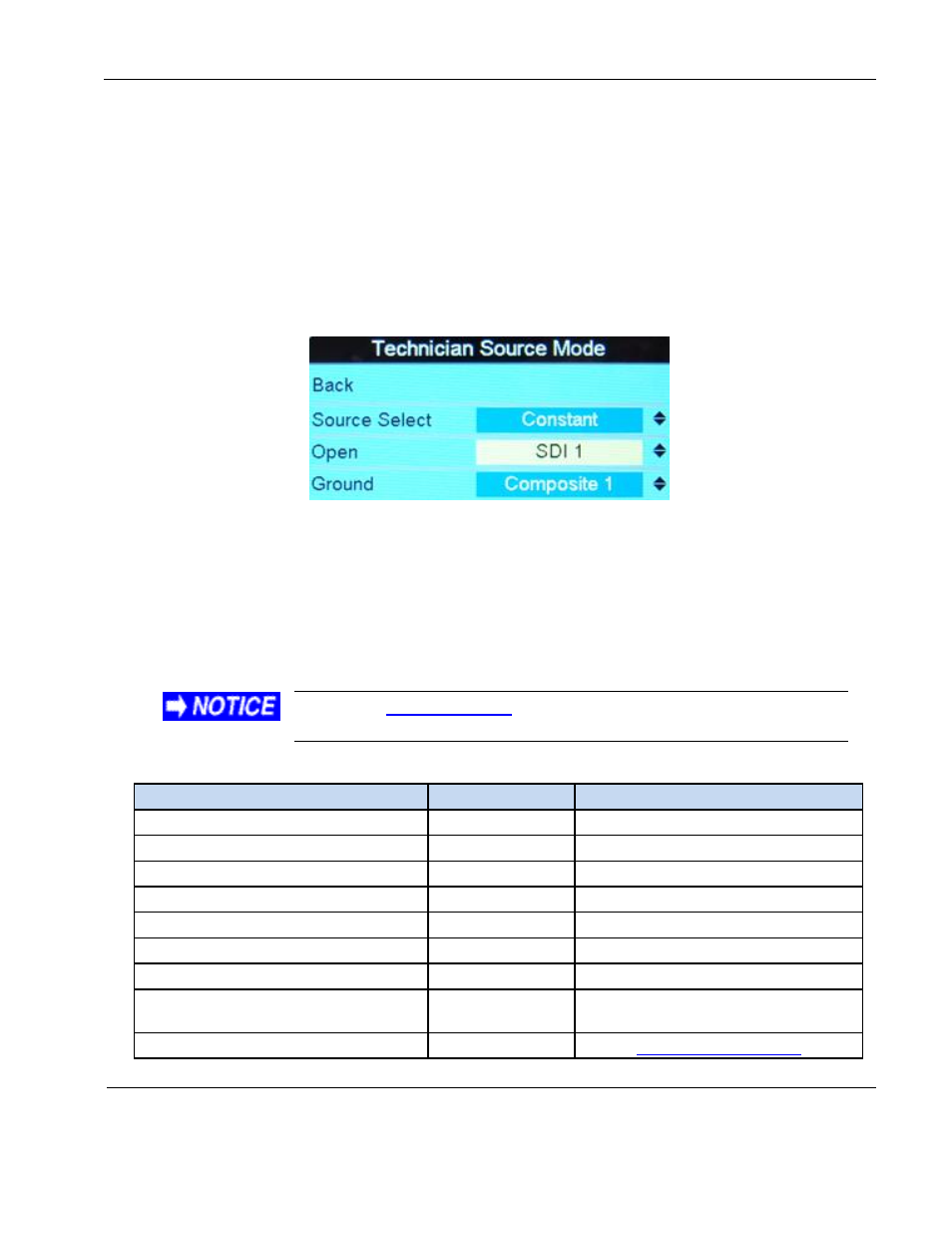

Figure 22 Source Mode Constant options
Select Back to return to the Technician Menu.
Press EXIT when you are ready to exit the OSD.
7. TECHNICAL REFERENCES AND SUPPORT
Check the Rosen Aviation website to ensure that you are working
with the most current revision of technical documentation.
Table 2 Technical references
Product Part Number Location
RC5 Remote Control 0500-019 Contact Rosen Sales
IR Receiver 0500-006 Contact Rosen Sales
HD15 Male VGA connector kit 0300-055 Contact Rosen Sales
Female 15-pin P1 connector kit 0300-053 Contact Rosen Sales
90-degree connector kit 0300-058 Contact Rosen Sales
HD BNC Plug to BNC Jack 106221 Contact Rosen Sales
RS-485 Network Message Definitions 9002933 Contact Rosen Technical Support
RS-232 External Controller Message
Formats 9002934 Contact Rosen Technical Support
Outline & Installation Drawing 1060-001-CD www.rosenaviation.com
