Mounting: 2003 suburban / tahoe – Whelen SABKT1 User Manual
Page 4
Page 4
Siren attaches to
bracket as shown
Gravel
Shield
Gravel
Shield
FIG. 2
FIG. 1
Air
Conditioner
Condensor
Air
Conditioner
Condensor
Air
Conditioner
Condenser
Mounting
screws
Mounting
screws
Mounting
Screws
Front Bumper
FIG. 3
Rubbe
r Cover
Top view of bracket
shows which holes
fit this application
SA314
SIREN
FRONT
OF
VEHICLE
Fig. 2A

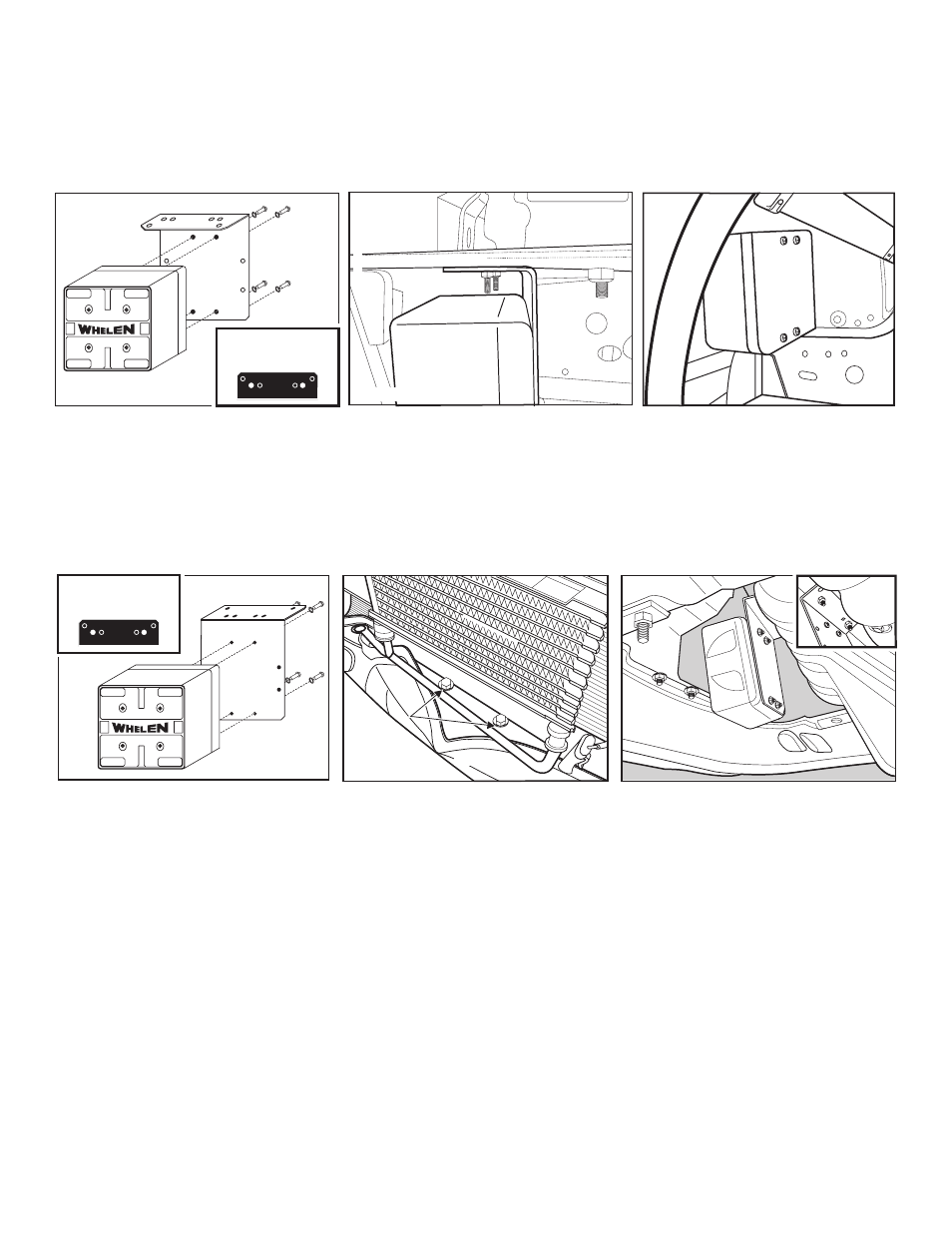

Fig. 1 Mount Siren to Bracket
Top view of bracket
shows which holes
fit this application
SA314
SIREN
W
H
EE
L
W
EL
L
FRONT
OF
VEHICLE
Fig. 2B
Mounting: / 2002 - 2003 Ford Explorer:
The speaker will be located in front of the driver side front tire, behind the bumper. You will use two existing
nuts and their bolts that are already on the vehicle. Always be sure that the speaker wires exit the bottom after mounting for proper drainage.
1.
Secure the bracket to the speaker using the supplied mounting hardware (See hardware applications on page 2). An SA314 is shown in Fig. 1.
Refer to page 2 for the SA315. Be sure you mount the SA315 onto the bracket in the same position the SA314 is shown here.
2.
Looking in through the drivers side wheel well, find the 2 existing bolts on the vehicle that match up to the brackets mounting holes.
3.
Remove the 2 nuts from their bolts and mount the bracket (with speaker) securing it with the 2 nuts you removed (Figs. 2A & 2B).
4.
Extend the WHITE (+) and BLACK (-) speaker wires to your siren amplifier and connect as shown in the amplifier instructions.
Mounting: 2003 Suburban / Tahoe:
The siren will mount in front of the vehicles gravel shield, just forward of (and below) the air
conditioner condenser as shown (Figs. 2 & 3). Always be sure that the sirens wires exit the bottom of the siren after mounting for proper
drainage of the siren.
1.
Place the bracket onto the mounting surface and mark off the location of the mounting holes.
2.
Remove the bracket and drill the mounting holes an appropriate size for the supplied mounting hardware (See hardware applications on page 2).
3.
Secure the bracket to the speaker using the mounting hardware provided for your model speaker. An SA314 is shown. See page 2 for an SA315.
4.
Secure the bracket (with speaker) to the mounting location with the supplied mounting hardware.
5.
Extend the WHITE (+) and BLACK (-) speaker wires to your siren amplifier and connect as shown in the amplifiers instructions.
