Property Specification
Connector RJ-45 (receptacle)
Connector type RS-232
Baud rate
9600bps (default)
Supporting
service
• Connects to character terminals
• Connects to PC serial port and running terminal emulator on
PC.

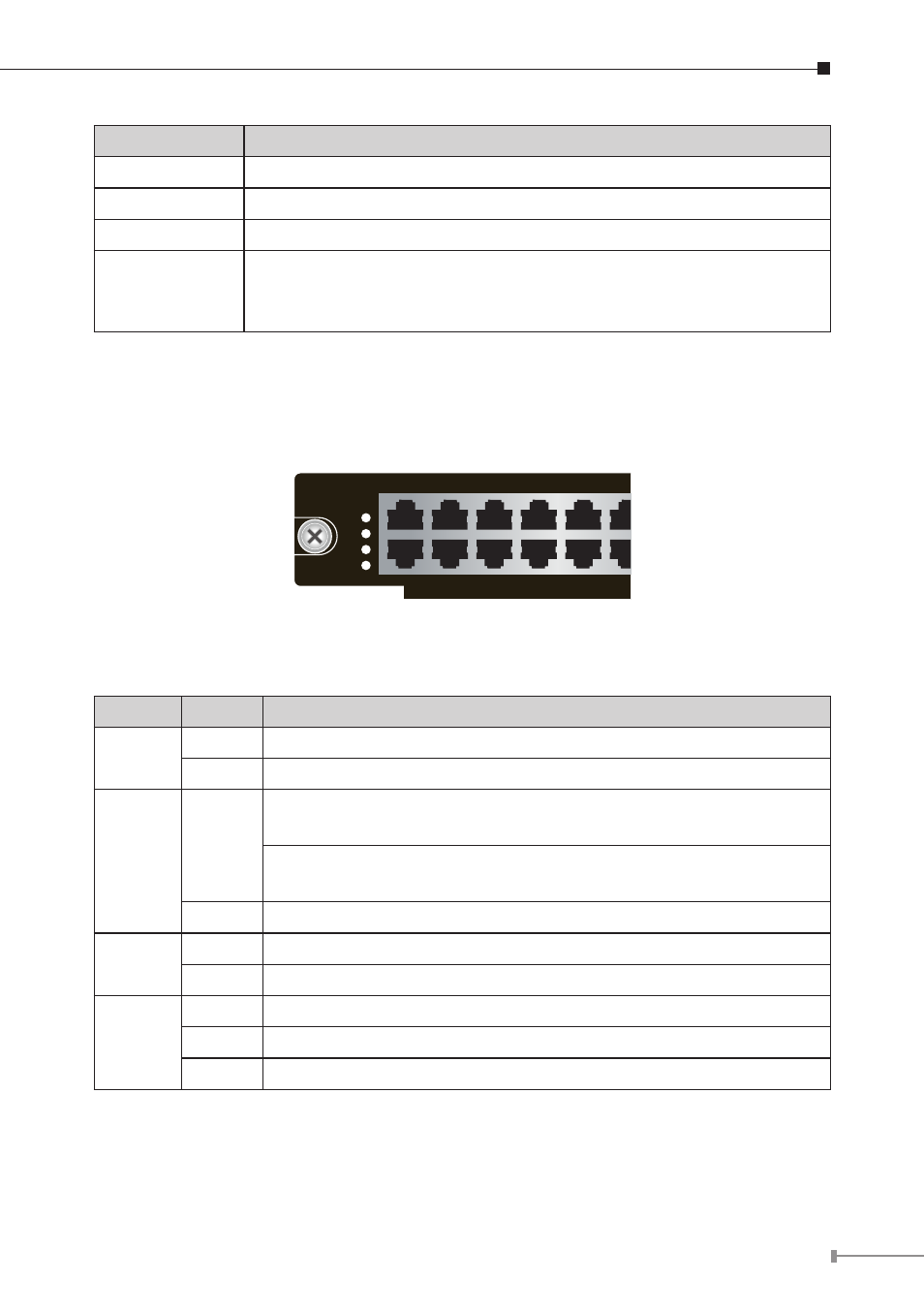

The front panel LEDs indicates instant status of port links, data activity, system
operation, system power, master and system FAN, helps monitor and troubleshoot
when needed. Figure 3-4 show the front panel of the Management Module.
XGS3-M44G LED indication
XGS3-M44G
2
1
4
3
6
5
8
7
10
9
12
11
14
13
16
15
18
17
20
19
22
21
24
23
26
25
28
27
30
29
32
31
34
33
36
35
38
37
40
39
42
41
44
43
Ethernet
Console, 9600, N, 8, 1
FAN
Master
RUN
PWR
Figure 3-4 XGS3-M44GX LED panel
■ System
LED Color Function
PWR
Green Lights to indicate that Management Module has power.
Off To indicate the Management Module power off.
RUN
Green
Blink slowly to indicate that Management Module running in
normal status.
Blink fast to indicate that system loading (Management
Module booting after hot plug in).
Off Running Status is failure.
Master
Green Management Module operate at master mode.
Off Management Module operate at slave mode.
FAN
Green FAN works normally.
Red FAN works abnormally.
Off FAN does not present.
