2. Physical Description
The XGS3-42000R is a 19-inch, 6 U height Rack Mountable Chassis, with the
standard dimensions of 440mm (W) x 266mm (H) x 421mm (D), the chassis
consists of module slot and power supply slot. The fan block is located on the
left side of the board rack, allowing one fan tray (4 axial fans for each fan tray).
Dust gauze is provided on the right of the board rack for filtering air circulation
through the rack, the power block upper the dust gauze provides power to the
system, supporting up to two power modules. The power modules insert into the
power slots from the front, with the distribution box at the back of the rack for
maintenance.
2
1
3
4
XGS3-42000R
Layer 3 4-Slot Chassis Switch
0
1
XGS3-PWR-AC
ON
OFF
Fault
Output good

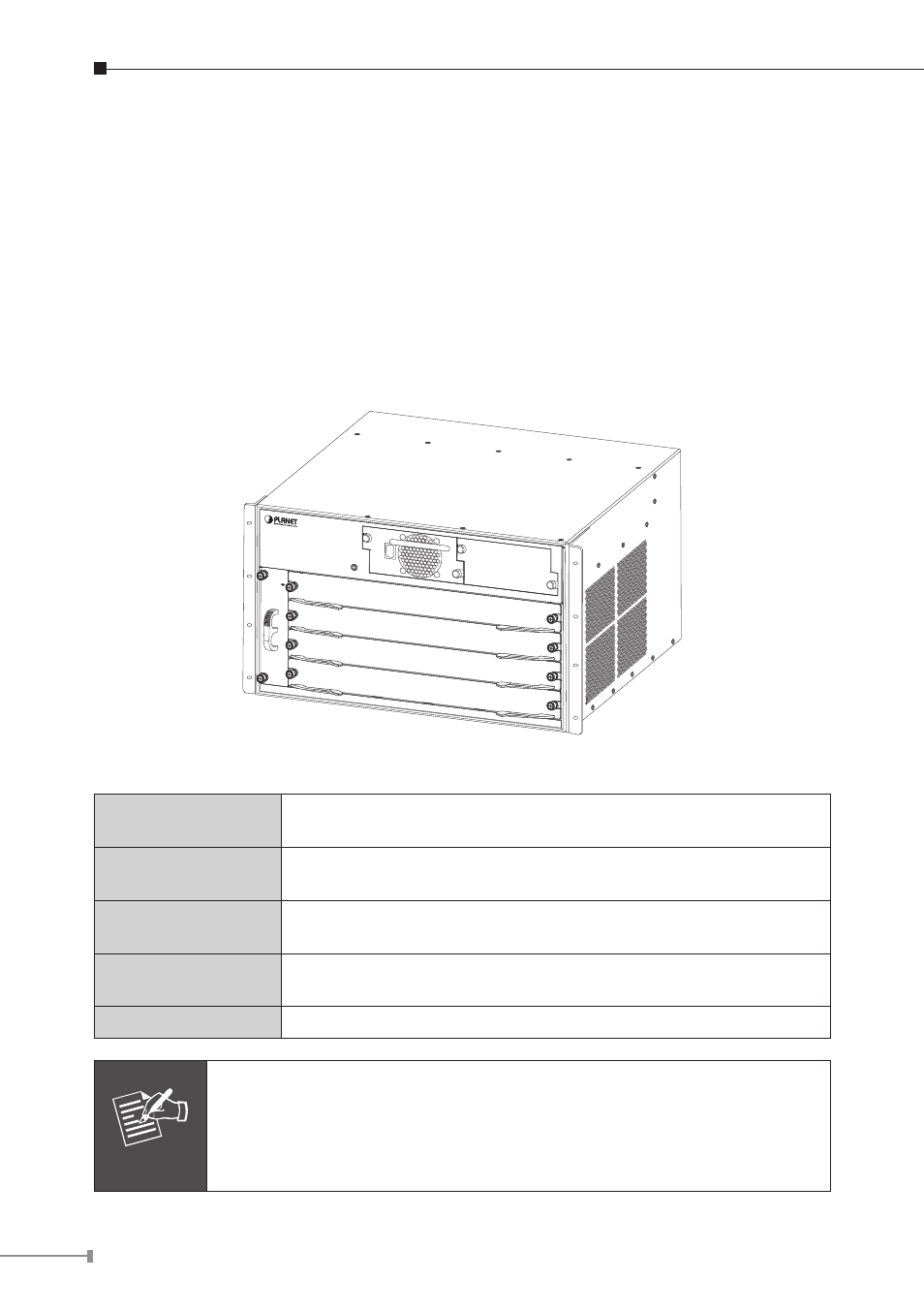

Figure 2-1 XGS3-42000R Front Panel
Power slots
Used for system power supply modules, support up to two
400W AC modules (XGS3-PWR-AC).
Management slots
Slot1 & 2 support management module like XGS3-M24GX
& XGS3-M44G.
Standard slots
Slot2 ~ 4 support standard module like XGS3-S4XG,
XGS3-S24G, XGS3-S48G & XGS3-S48GF.
Fan tray slot
Supports one system fan assembly, each assembly consists
of four axial fans.
Dust gauze slot Exterior air inlet for the ventilation subsystem.
Note
The Chassis Switch has a Power Supply Module, will not has any
Management / Standard Ethernet Module on shipment.
Slot 1 should installed with Management Module before power on
the Chassis Switch otherwise the Chassis Switch will not operates
normally.
