Page 36
36

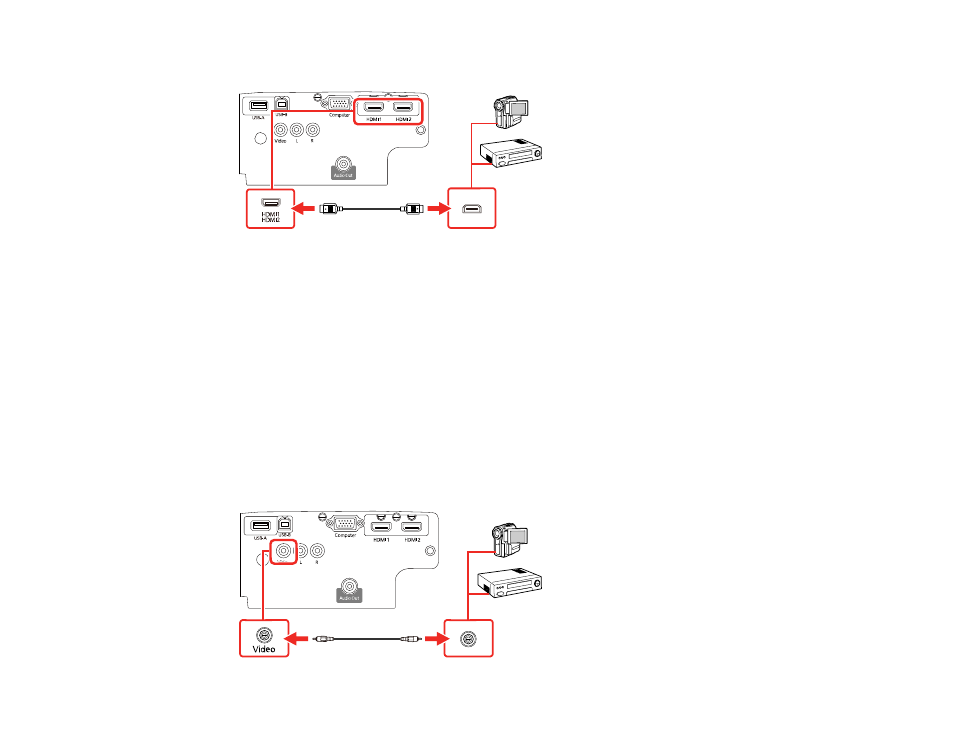

2.
Connect the other end to the projector's
HDMI
port.
Note:
The projector converts the digital audio signal sent from your video source into a mono analog
signal for the internal speaker or a stereo analog signal if you are connecting to external speakers.
Note:
If you have problems hearing audio through the HDMI connection on the Home Cinema 1080,
connect one end of an optional RCA audio cable to the projector's
L
and
R
audio ports and the other end
to your computer's audio out port. Then select the audio port you connected to as the
HDMI Audio
Output
setting in the Extended menu.
Parent topic:
Connecting to a Composite Video Source
If your video source has a composite video port, you can connect it to the projector using an optional
RCA-style video or A/V cable (Home Cinema 1080).
1.
Connect the cable with the yellow connector to your video source's yellow video output port.
2.
Connect the other end to the projector's
Video
port.
