EN
2 Rogue Outcast 2X Wash QRG Rev. 1
QUICK REFERENCE GUIDE
What is Included
AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
Power Linking
It is possible to link up to 4 Rogue Outcast 2X Wash products at 100 V, 5 products at 120 V, 9 products at 208 V, 10
products at 230 V, or 11 products at 240 V. Never exceed this number. Power linking cords can be purchased separately.
AC Plug
DMX Linking
The Rogue Outcast 2X Wash will work with a DMX controller using a 5-pin DMX serial connection. A DMX Primer is
available from www.chauvetprofessional.com .
DMX Connection
The Rogue Outcast 2X Wash uses a 5-pin DMX data connection for its DMX personalities: 15CH , 17CH , 22CH , 33CH ,
33MS , 54CH , 54MS , and 56CH . See the User Manual for information about connecting and configuring the product for
DMX operation.
RDM (Remote Device Management)
Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally
along existing DMX cabling. Check the DMX controller’s User Manual or with the manufacturer as not all DMX controllers
have this capability. The Rogue Outcast 2X Wash supports RDM protocol that allows feedback to make changes to menu
map options. Download the User Manual from www.chauvetprofessional.com for more details.
Mounting
Before mounting this product, read the Safety Notes . Use at least 2 mounting points per product. Make sure the mounting
clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://
trusst.com/productcategory/truss-clamps .

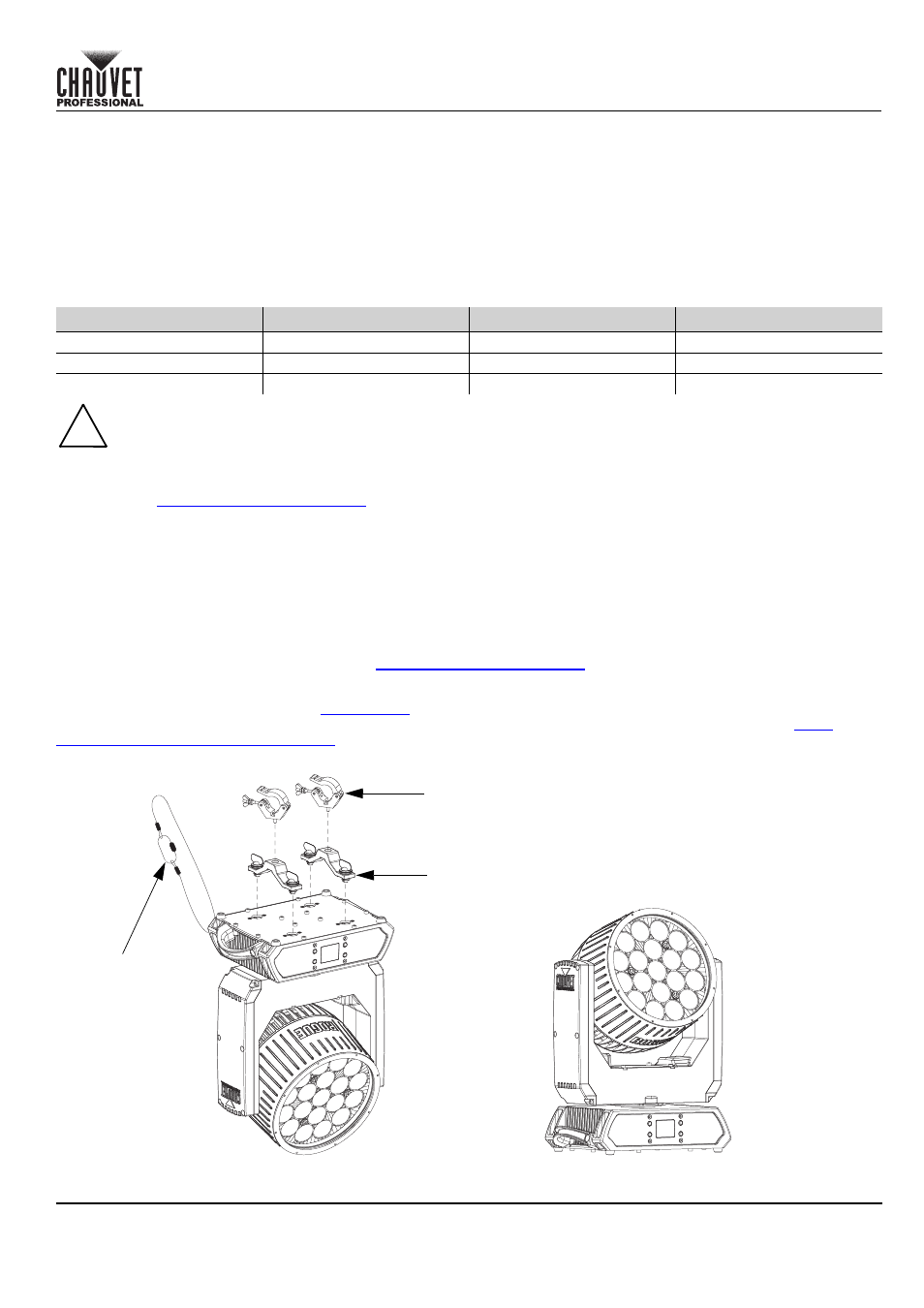

Mounting Diagram
• Rogue Outcast 2X Wash
• Seetronic Powerkon IP65 power cord
• 2 omega brackets with mounting hardware
• Quick Reference Guide
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely
disconnect the product from power via breaker or by unplugging it.
!
Safety cable
Mounting clamp (2x)
Omega bracket (2x)
Surface mounting Overhead mounting
