QuickSpecs
HP Z2 G9 Tower Workstation Desktop PC
Overview
c08109687 — DA 17012 – Worldwide — Version 13 — November 1, 2022 Page 2

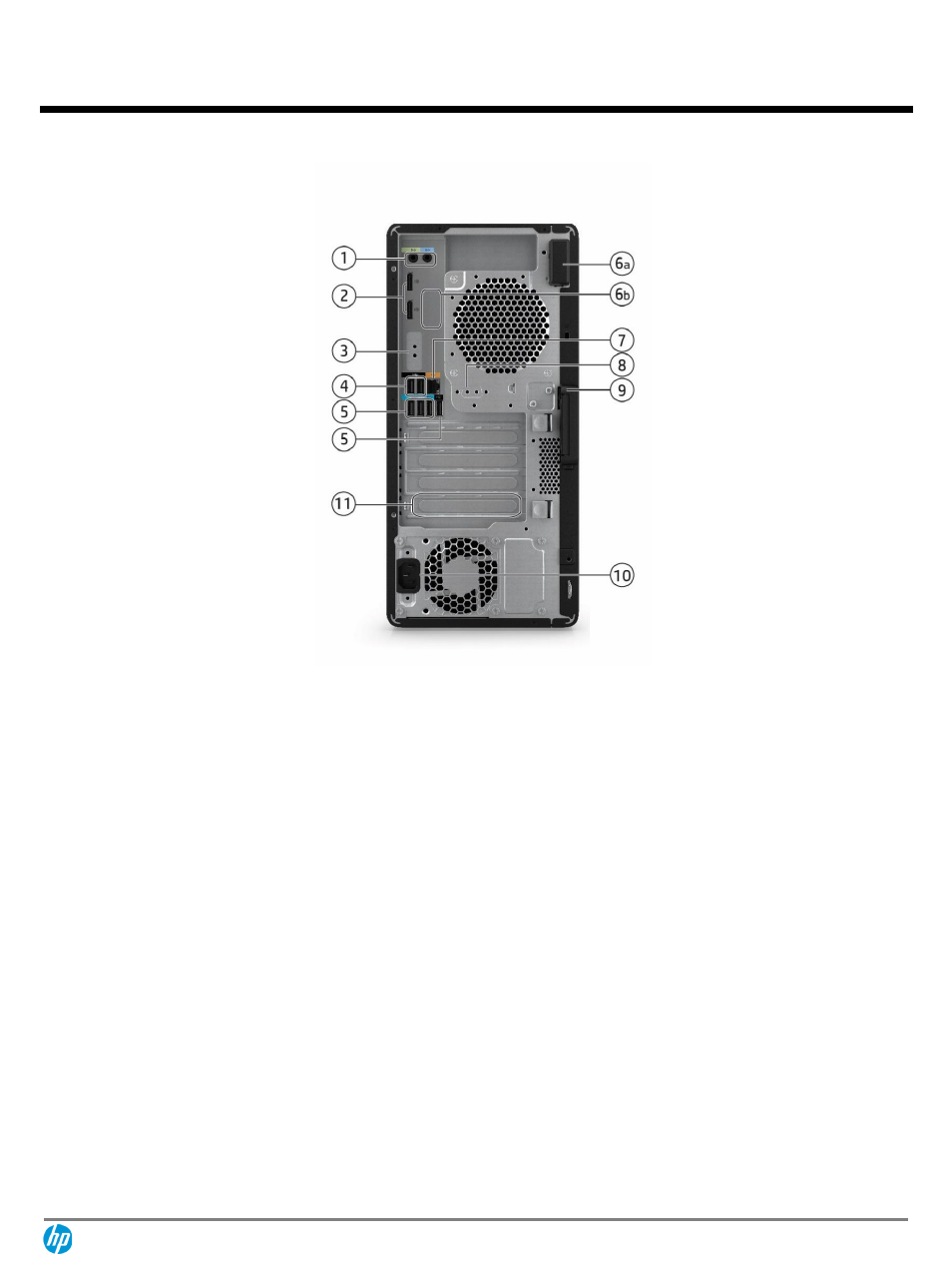

rear
1. (1) Audio Line-in jack
(1) Audio Line-out jack
6. WLAN Antenna (optional)
a. Internal
b. External
2. (2) DisplayPort 1.4
3. Flex I/O module: choose one from the following:
(1) DisplayPort 1.4, (1) HDMI 2.0b, (1) VGA, (1) Dual Type-A
SuperSpeed USB 5Gbps signaling rate port, (1) Type-C®
SuperSpeed USB 10Gbps signaling rate port (Power Delivery
15W, Alt Mode DisplayPort), (1) 2
nd 1 GbE LAN, (1) Thunderbolt
3 with Type-C® SuperSpeed/ USB4 40Gbps signaling rate*
(cabled to PCIe AIC) (1) 1Gbps Fiber LC NIC
7. RJ-45
8. 2nd serial port (optional)
9. Hood lock (optional)
10. Power connector
4. (2) Hi-Speed USB 480Mbps signaling rate port
5. (2) Type-A SuperSpeed USB 10Gbps signaling rate port
(1) Type A SuperSpeed USB 5Gbps signaling rate port
(1) Hi-Speed USB 480Mbps signaling rate port
*Maximum speed requires DisplayPort ™ and PCIe aggregation.
**Thunderbolt only support on PCI-E slot4.
NOTE: Onboard Display support DP1.4/HBR2. Flex I/O module Display support DP1.4/HBR3. Resolution all support up to 5120x3200
24bpp @60Hz.
Form Factor Tower
Operating Systems Preinstalled:
• Windows 11 Pro - HP recommends Windows 11 Pro 2
• Windows 11 Home - HP recommends Windows 11 Pro 2
• Windows 10 Pro (available through downgrade rights from Windows 11 Pro) 1,2,3
