1 Overview
6 Output tray
— collects the scanned pages. The output tray can be
pulled out and extended to accommodate pages up to 35.56 cm (14
inches) in length. For longer pages, keep the end stop down. See
7 Power button
— touch this button to turn the scanner on or off. The
power button is lighted when the scanner is powered on. The
lighted button blinks when a situation requires your attention: for
example, to close the scanner cover.
8 X button
— this multi-function button can
end
or
pause
a scanning
job or
clear
some types of flashing codes.
9 Play button
— this button launches the scanning application
in
order to begin scanning.
10 & 11
Down and Up buttons
— allow you to scroll through
functions 1 to 9.
Front view — continued
12 Function window
— displays 1-9. These
numbers correspond to a predefined function. U or E is displayed if
an error is encountered.
13 Scanner cover release lever
— opens the scanner to allow
access to the paper path for cleaning or for clearing a document
jam.

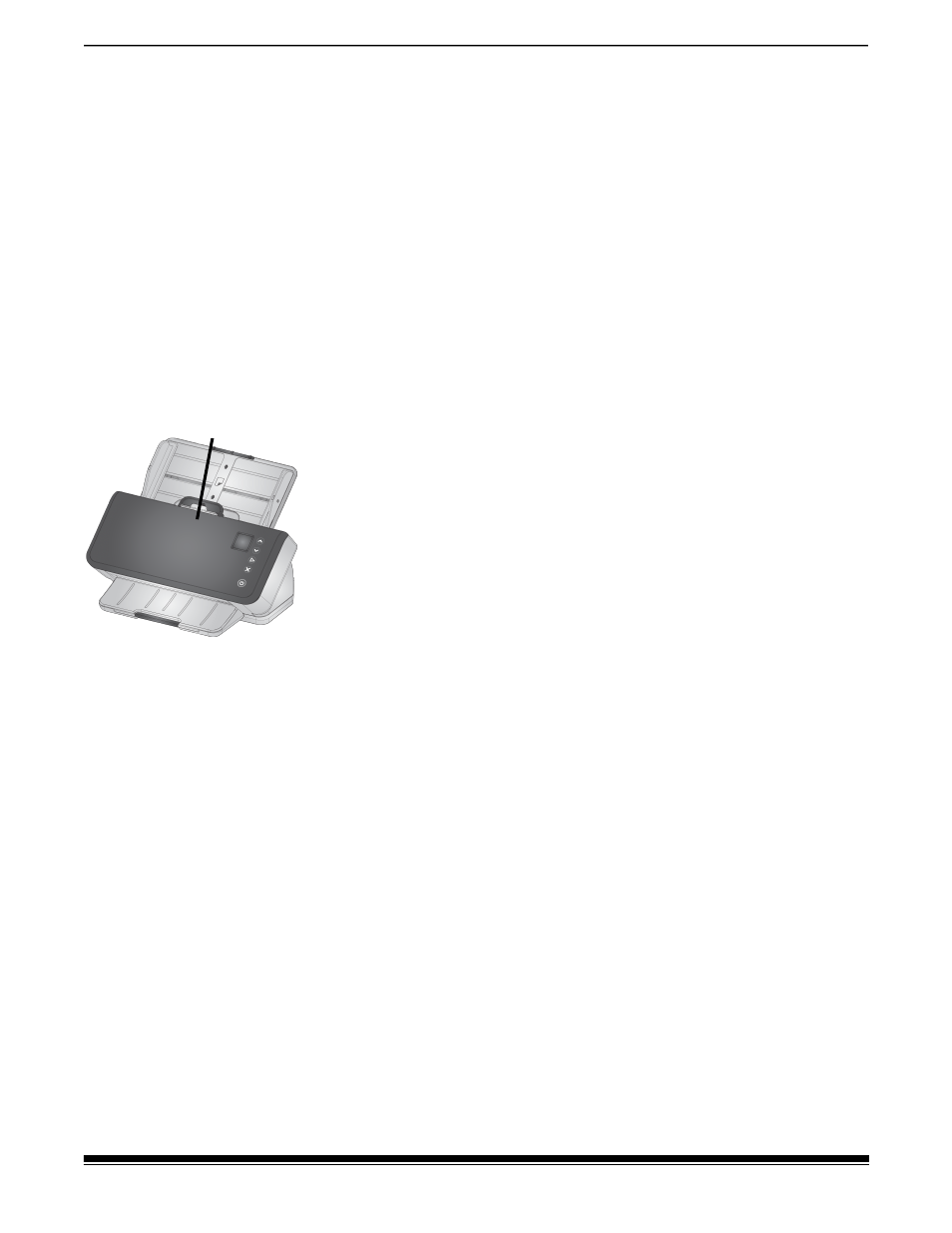

14 ID card positioning
— for scanning one small card (such as US
driver’s license or other credit card sized ID cards) in landscape
orientation. Refer to “Scanning small items” on page 19 for precise
positioning of credit card.
15 Close scanner cover by pressing here
.
NOTE: some of the items on this page refer to the illustration on the
previous page.
