1 Overview

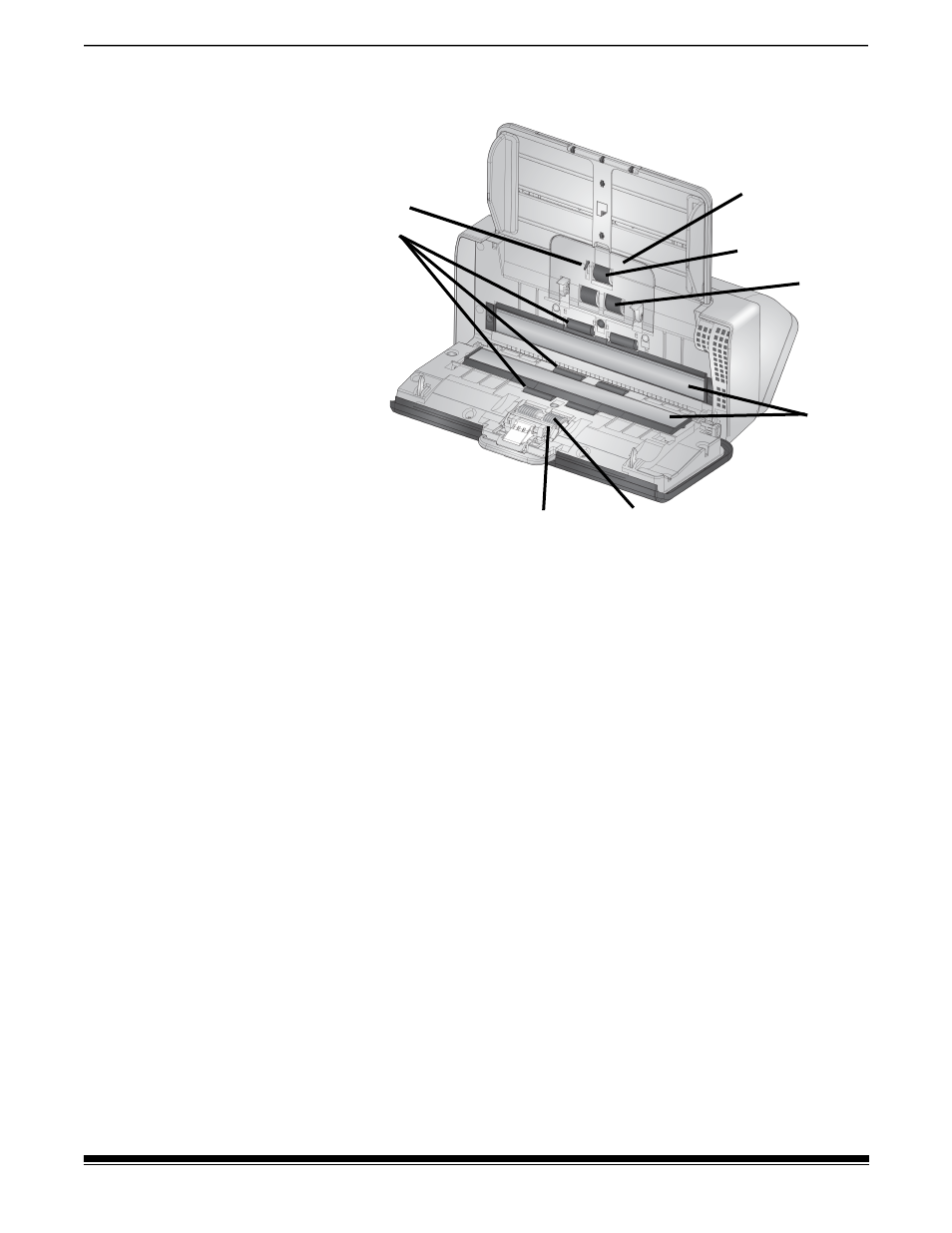

Inside view
1 Paper present sensor — detects the presence of paper in the
input tray.
2 Transport rollers — (three pairs) these six rollers, plus the two
visible on the “Inside view” on page 7, help move paper smoothly
through the scanner.
3 Pre-separation pad — helps to feed one page at a time from the
input tray.
4 Separation roller — provides smooth page feeding and separation
of various sizes, thicknesses and textures of input pages.
5 Image glass — the area of the scanner where imaging takes place.
6 Feed roller — provides smooth feeding and separation of various
sizes, thicknesses and textures of pages.
7 Urging roller — pulls next page into scanner from the input tray.
8 Feed roller cover — provides access to feed rollers.
1
3
4
5
6
7
8
2
