Thank you for buying this Pioneer product. Please read through
these operating instructions for proper assembly and use. After
you have finished reading the instructions, put them away in a

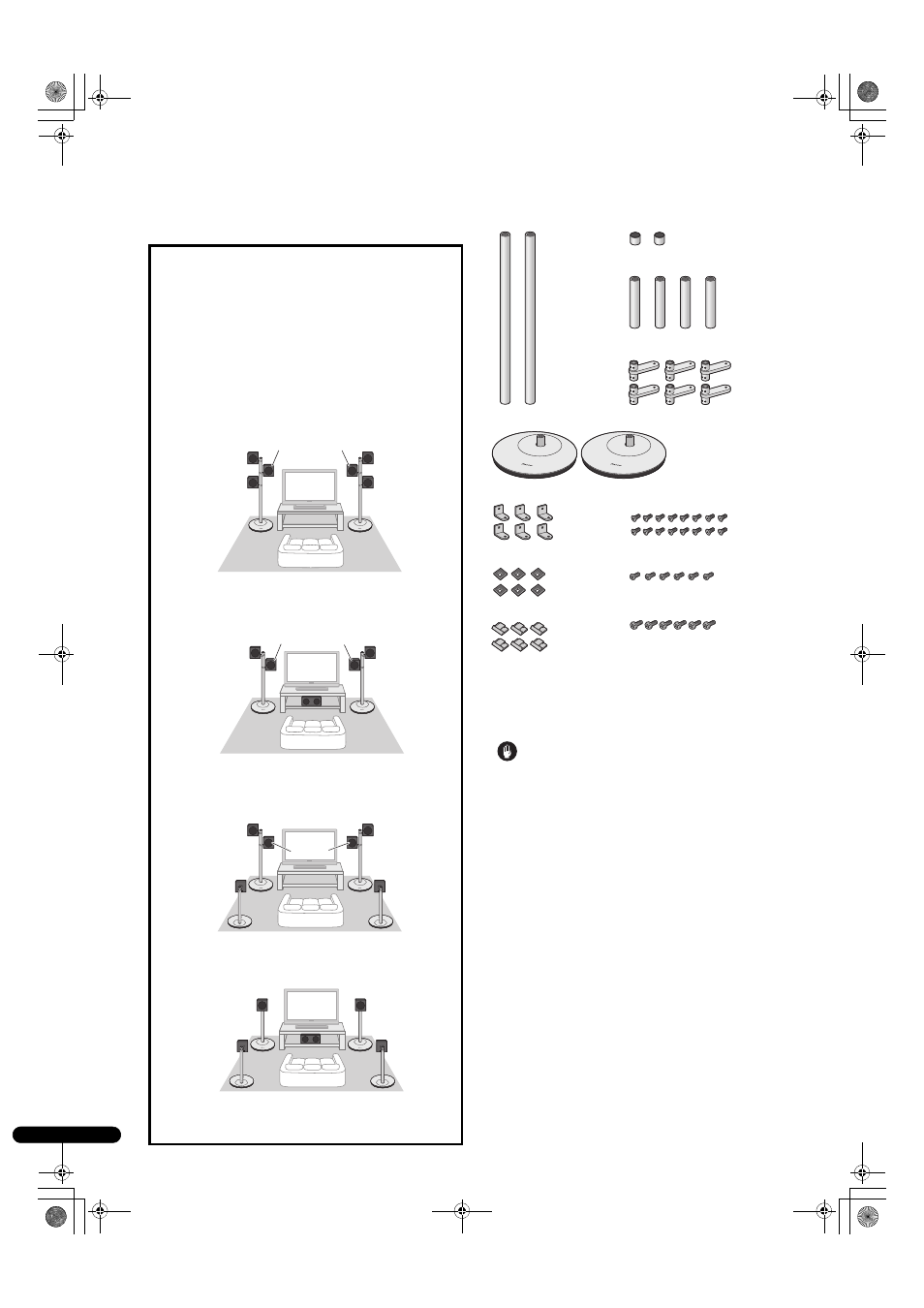

safe place for future reference. Confirm your Accessories
Before you start
Before setting up your speaker system, we recommend reading
the operating instructions for your system thoroughly.
Caution
• This stand has been designed to support weights up to
1.1 kg per arm, or a maximum of 3.3 kg (when 3 arms are
used). Exceeding these limits may result in falling or
breakage.
• Only use the screws supplied when fixing the speaker to the
speaker stand. Speakers may fall and incur damages if not
fixed in place properly.
• Do not use with any speaker system other than the one for
which the unit was designed. The stand may collapse and
be damaged and/or the speaker may fall and cause injury.
• Be careful when assembling and moving the speaker stand,
as it may cause damage or injury in the event of a fall.
• Placing the stand on an unstable surface can be dangerous.
Be sure to place it on a flat, firm surface.
• Make sure you assemble the stand on a flat surface that is
relatively soft (such as a carpet).
• Do not sit or stand on the speaker, or let children play on the
speaker. Doing so could provoke the speaker to fall, causing
damages or bodily injury.
Assembly Hints
These stands have been designed to allow the mounting of up
to three speakers each, but the number actually mounted will
depend on the speaker system used (surround setting). When
assembling the stands, use only that number of support arms
actually required for the speakers to be mounted.
• For more information regarding various surround setups,
consult the owners manuals furnished with your speakers
and home theater system.
Setup examples:
• Additional stands will be required if they are used to
support surround (rear) speakers as well.
Listening position
• Front surround setup
(using dual center speakers)
Center
Front left Front right
Center
Surround
left
Surround
right
Listening position
Center
• Front surround setup
Front left Front right
Surround
left
Surround
right
Listening position
Center
• Standard surround setup
Surround
left
Surround
right
Front left Front right
Listening position
• Standard surround setup
(using dual center speakers)
Surround
left
Surround
right
Front left Front right
Center
• Screws (Flat countersunk head,
M4xL6), for assembling supports x 16
• Screws (Bind head, M4xL8), for
assembling arms x 6
• Screws (Bind head, M5xL10) for
mounting speakers x 6
• These operating instructions
• Supports (long) x 2 • Caps x 2
• Supports (short) x 4
• Arms x 6
• Stand bases x 2
• Angle brackets x 6
• Pad gaskets x 6
• Wire clips x 6
