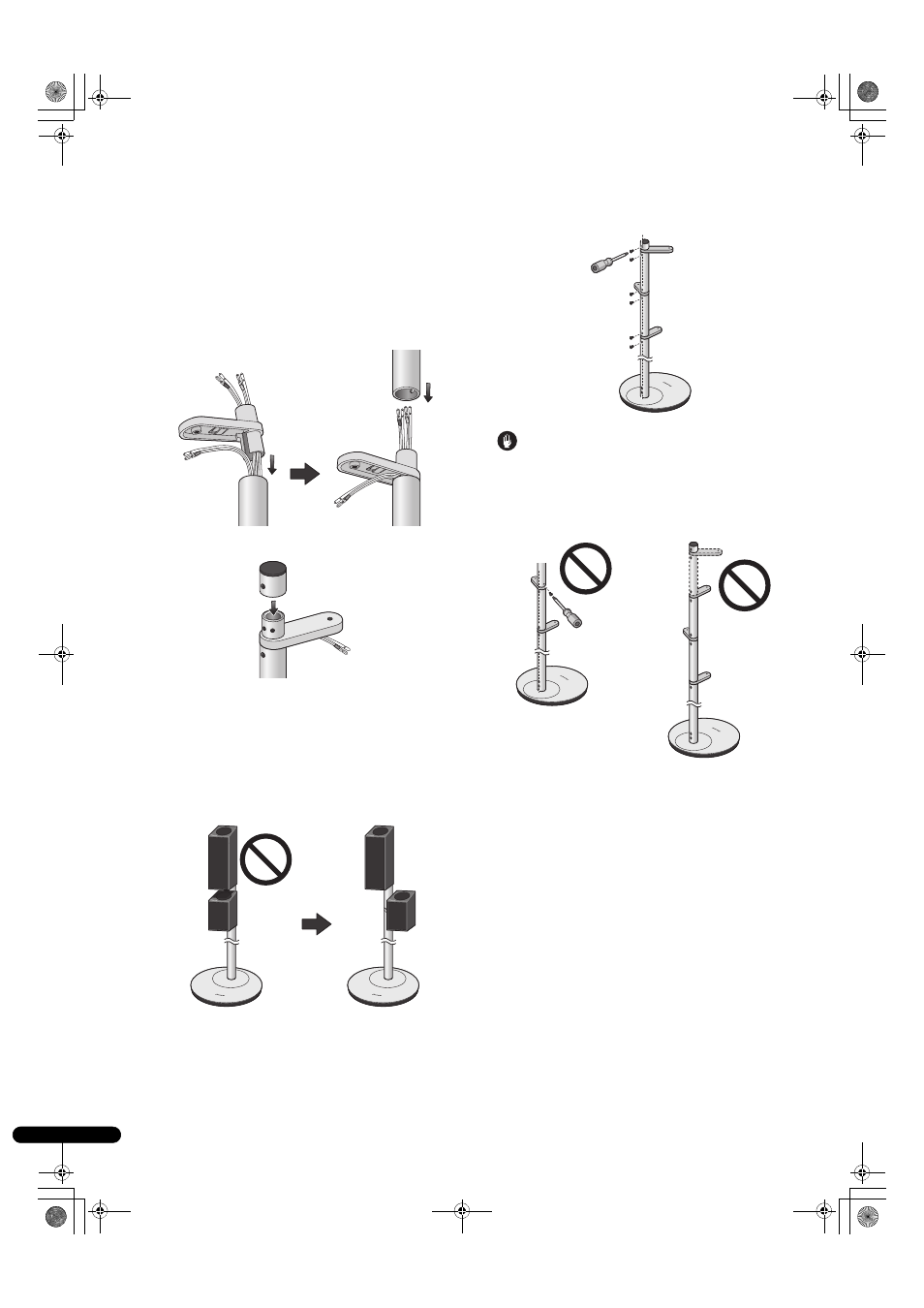

5 Assemble the arm and support (short) and pass each
speaker wire through in order as shown.
• The arms are designed with specific up-down orientation;
confirm that the side with the wire clip is oriented downward
during assembly.
Pass the appropriate speaker wire through each arm and
mount the assembled arms in order on the long support. In
the case of the speaker wire for the lowest arm, do not pass
the wire through the arm, but allow the wire to exit the
cutaway portion of the arm as shown, then affix a cap to the
top of the arm.
Place cap on top of uppermost arm.
6 Decide on the directional orientation for each
speaker, then fix in place with the furnished
countersunk screws.
• Each arm can mounted facing forward, or pointing 60° to
right or left. If a lower speaker unit has an upward-pointing
speaker, orient its direction away from the speaker above it.
When fixing the speakers in place, also consult the section
“Assembly Hints” on page 2.
Examples of stand with mounted speakers
Assemble the stands so that the screw holes in the supports
are all oriented toward the rear side of the stand, then insert
the furnished countersunk screws and tighten securely.
Caution
• Do not attempt to insert
screws when the supports
holes are oriented at a
diagonal angle from the
rear of the stand.
• Do not attempt to use more
than three arms on a single
stand, since the stand may
fall and cause damage or
injuries.
