Assembling the speaker stands
Caution
• Pioneer is not responsible for any accidents or damage that
result from improper installation, misuse or modification of
the product, or natural disasters.

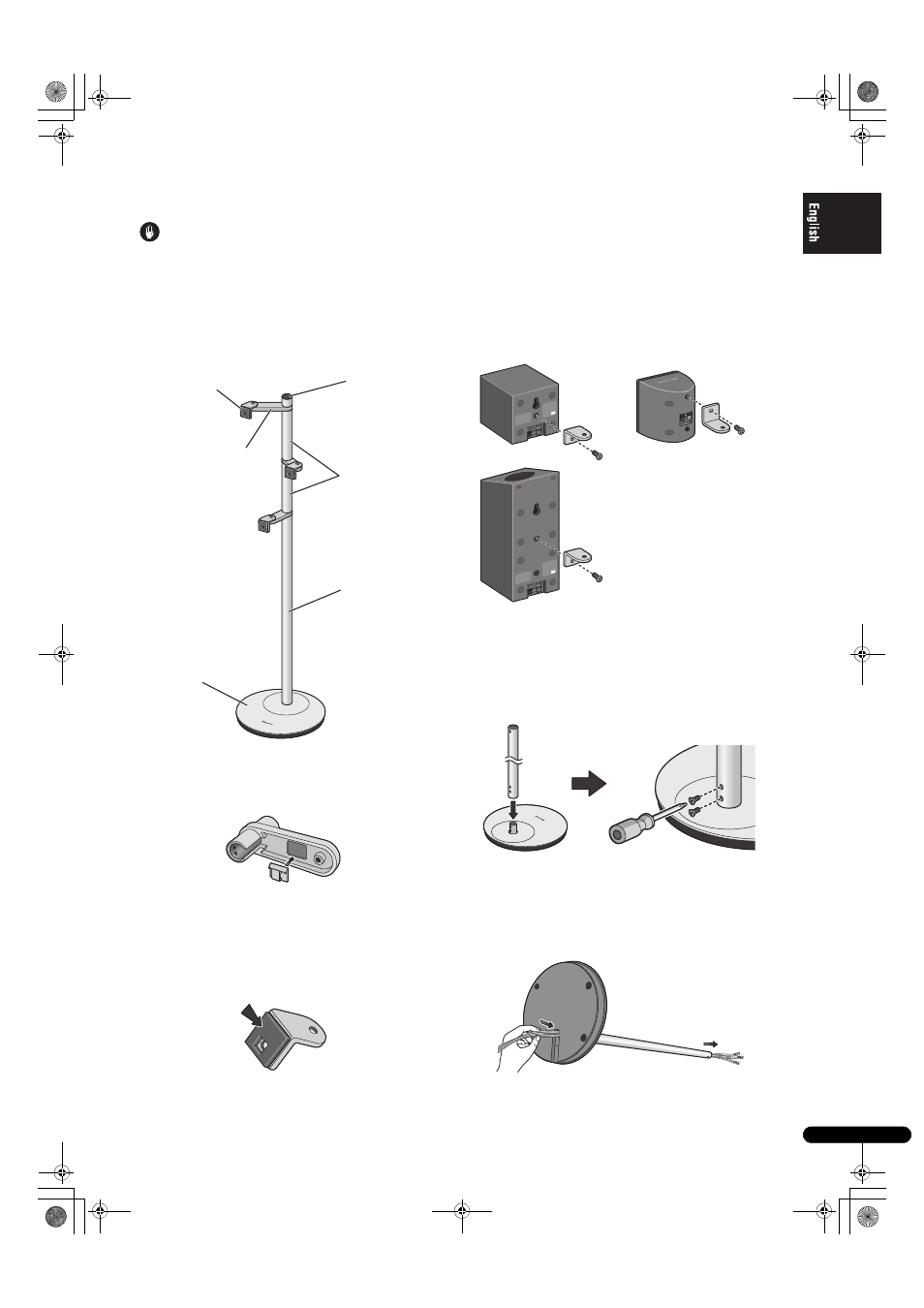

Assemble the speaker stands as illustrated below. Please note
that a medium-sized Phillips screwdriver is required for
assembly.
The accompanying illustration shows the fully assembled
speaker stand, without speakers or wires.
1 Fasten the wire clips to the arms.
Peel the protective paper backing from the clip and affix the
clip to the indentation on the underside of the arm as
shown.
2 Fasten angle brackets to speakers.
Peel the protective paper backing from the gasket and affix
the gasket to the angle bracket as shown.
• Affix the gasket to the square surface of the angle bracket. Be
sure to confirm the direction of the gasket so as to properly
align the gasket’s hole with the screw hole in the angle
bracket.
Fasten the angle bracket to the speaker. Orient the gasket
material with the rear surface of the speaker, and align the
screw hole in the angle bracket with the speaker’s screw
hole, then use the furnished screw (M5xL10) to securely
fasten the angle bracket to the speaker.
• In the event the speaker is furnished with two screw holes,
fasten the angle bracket to the upper of the two holes.
• The angle bracket has been originally designed to be
mounted with the rounded angle arm oriented upwards, but
in the event interference occurs with speaker terminals, the
rounded angle arm may also be mounted downward.
Speaker Installation Examples
3 Place a support (long) over the mounting post in the
stand base, and fasten securely with two countersunk
screws (M4xL6).
• The screw holes in the stand base are oriented to the rear
side.
• The support (long) is designed with specific up-down
orientation. Confirm the orientation before assembling.
4 Lay the stand on its side, and pass the speaker wires
into the hole in the stand base and through the
support.
Consult the owner’s manual for the speaker system and
confirm the proper wires to be used (wires may be color
coded).
Stand base
Cap
Arms
Support (long)
Supports (short)
Angle brackets
(In the event of interference
between speaker terminals
and angle bracket)
