Climate control
– CONTINUED –
Manual heating and air conditioning
system

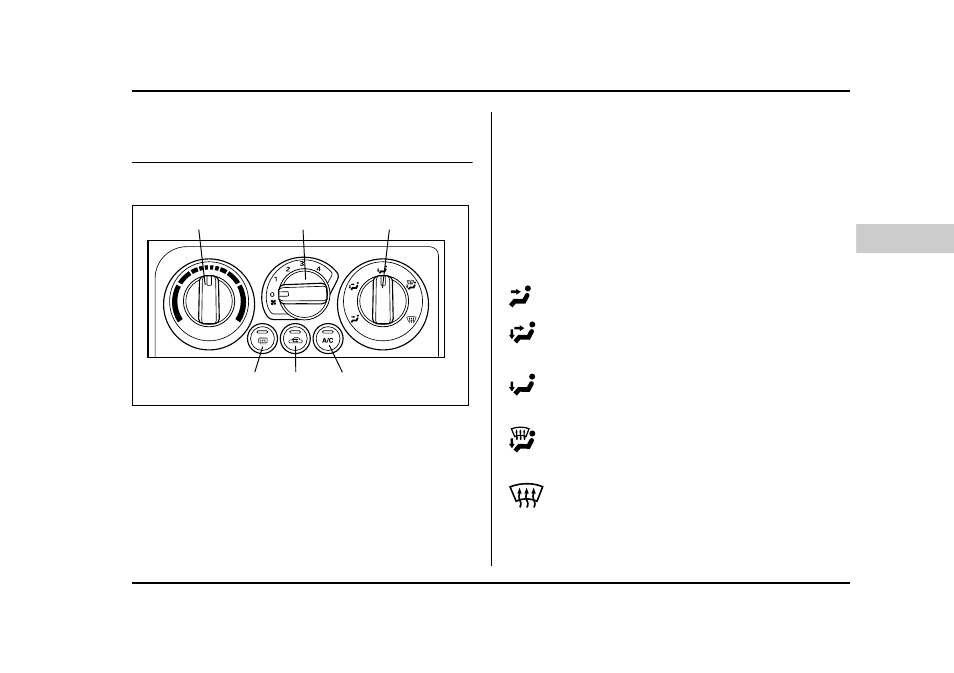

„ Control panel
1) Temperature control dial
2) Fan speed control dial
3) Air flow control dial
4) Air conditioner button
5) Air inlet selection button
6) Rear window defogger button (Refer to “Rear window
defogger switch” in chapter 3.)
T Temperature control dial
This dial regulates the temperature of air flow from the
air outlets over a range from the blue area (cool) to red
area (warm).
T Fan speed control dial
The fan operates only when the ignition switch is
turned to the “ON” position. The fan speed control dial
is used to select four fan speeds.
T Air flow control dial
This dial has the following five positions:
: Air flows through the instrument panel outlets.
: Air flows through the instrument panel outlets
and the foot outlets.
: Air flows through the foot outlets and some
through the windshield defroster outlets.
: Air flows through the windshield defroster outlets
and foot outlets.
: Air flows through the windshield defroster out-
lets.
1
6 5 4
2 3
