10
English
Introduction

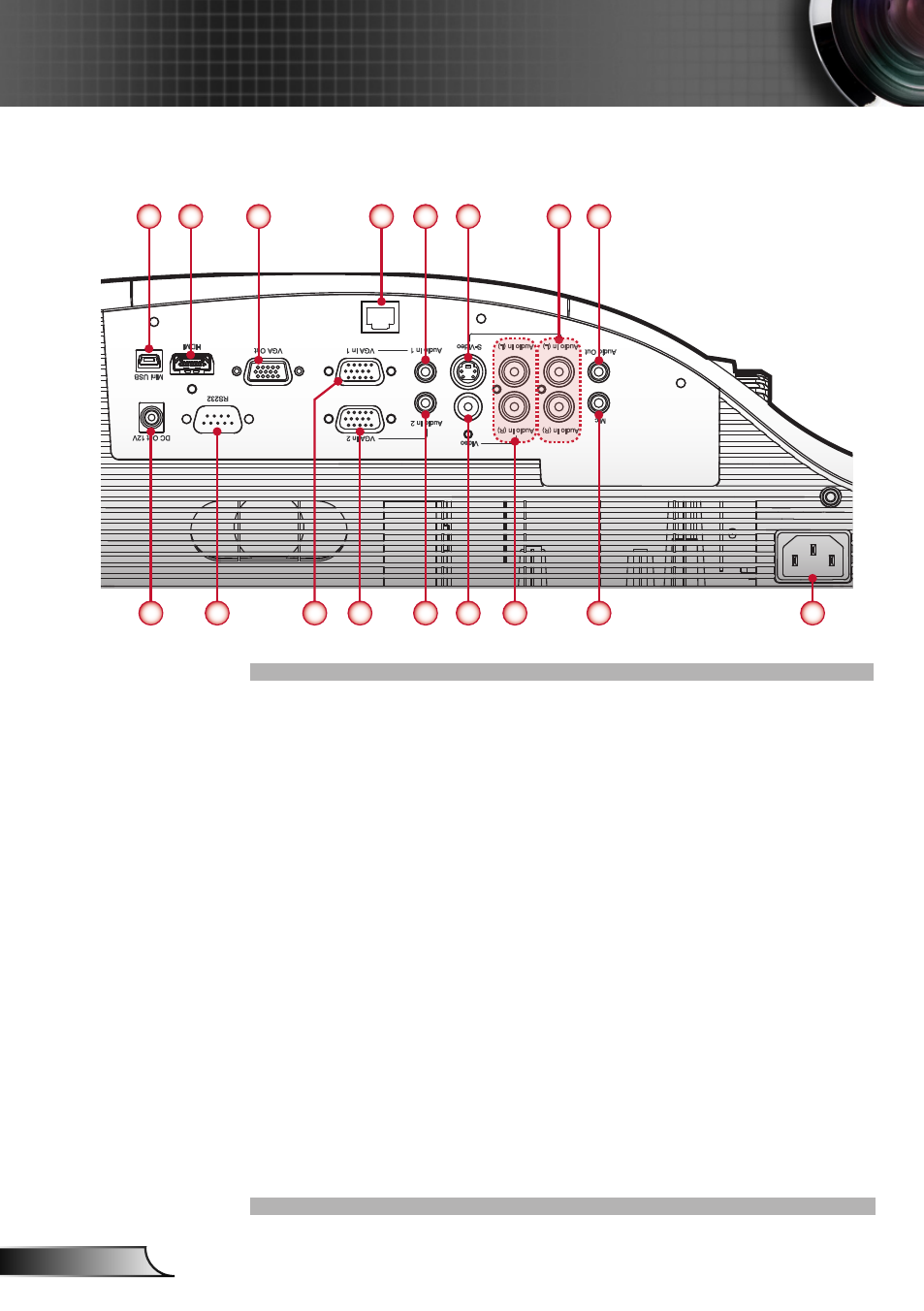

Input/Output Connections
Mini USB Connector
1.
HDMI Connector
2.
VGA Output Connector
3.
LAN Connector
4.
Audio In 1 Connector (For VGA In 1 Connector)
5.
S-Video Connector
6.
Left/Right RCA Audio Input Connector (For S-Video Con-
7.
nector)
Audio Output Connector
8.
12V Trigger Relay Connector (12V, 250mA)
9.
RS232 Connector
10.
VGA In 1 Connector
11.
VGA In 2 Connector
12.
Audio In 2 Connector (For VGA In 2 Connector)
13.
Composite Video Input Connector
14.
Left/Right RCA Audio Input Connector (For Composite
15.
Video Input Connector)
3.5mm Microphone Input Connector
16.
Power Socket
17.
LAN
3
2
1
5
6
8
9
10
7
11
12
13
14
15
16
17
4
