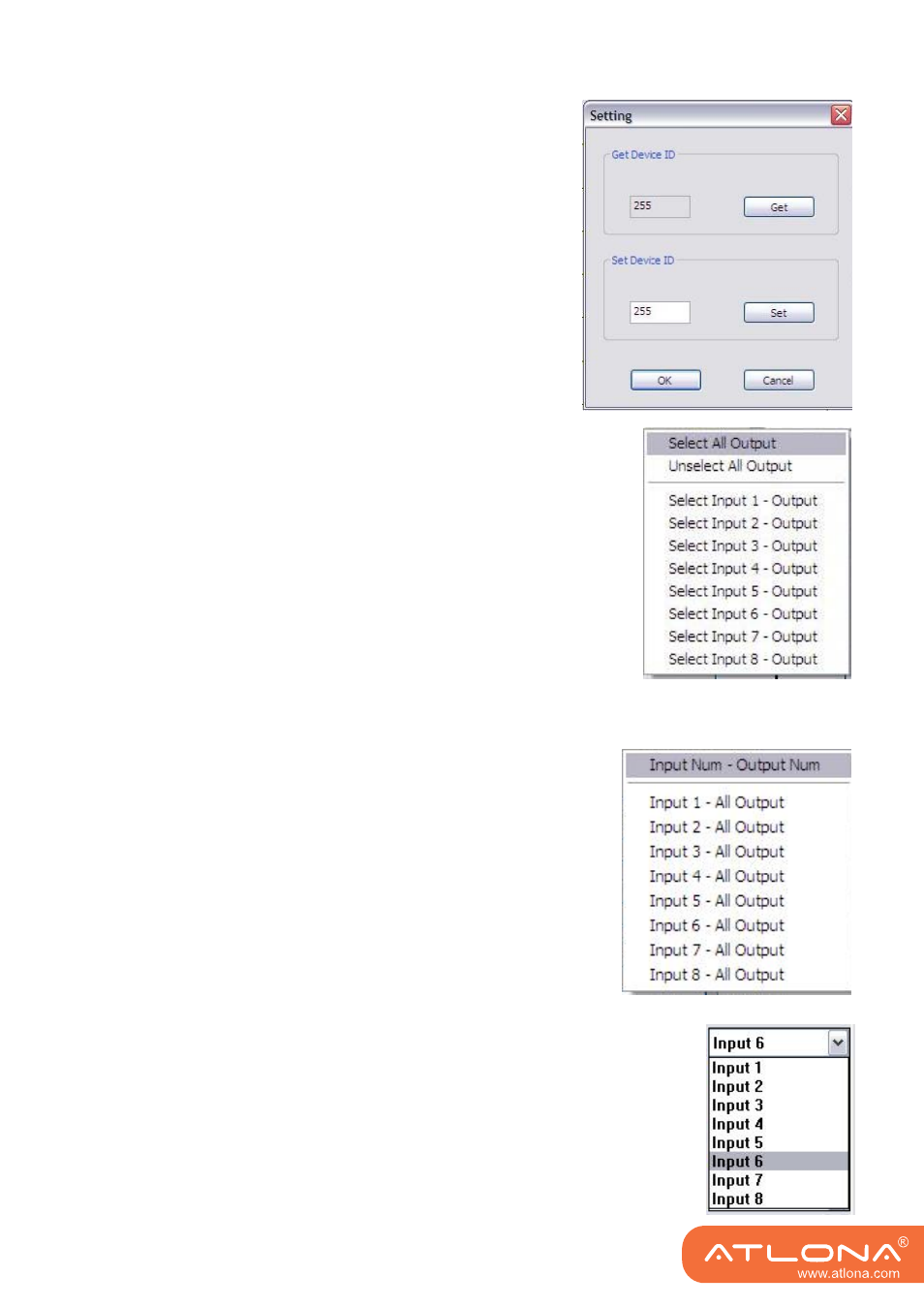

2. Setting button:
Press Get button to read back device ID.
Press Set button to write device ID.
3. Linkage button:
Press Linkage button to read back all status.
4. Open/Close button:
Press this button to close or open COM port.
5. Mapping button:
Select All Output:
Select “set all output”, then select the source on main
menu. You can quickly set all output to the same source.
Unselect All Output:
Release output selection.
Select Input1~8-Output:
Select Input Source. Then select the output port icon.
For example:
Select input source 1. Then select output port 1 and 2. The video and audio will be sent to
port 1 and 2.
6. Fast Select button:
Press Fast select button for quick setting
Input one ¨ Output Port one
Input two ¨Output Port two
…..
Press Fast select pull down menu
Select Input Num-Output Num
Input source #1 ¨ Output port #1
Input source #2 ¨ Output port #2
…..
Select Input - All Output
Send the same source to all output
7. Output Port:
Pull down menu and select which source to be sent to this output port.
One by one setting
On main menu screen
