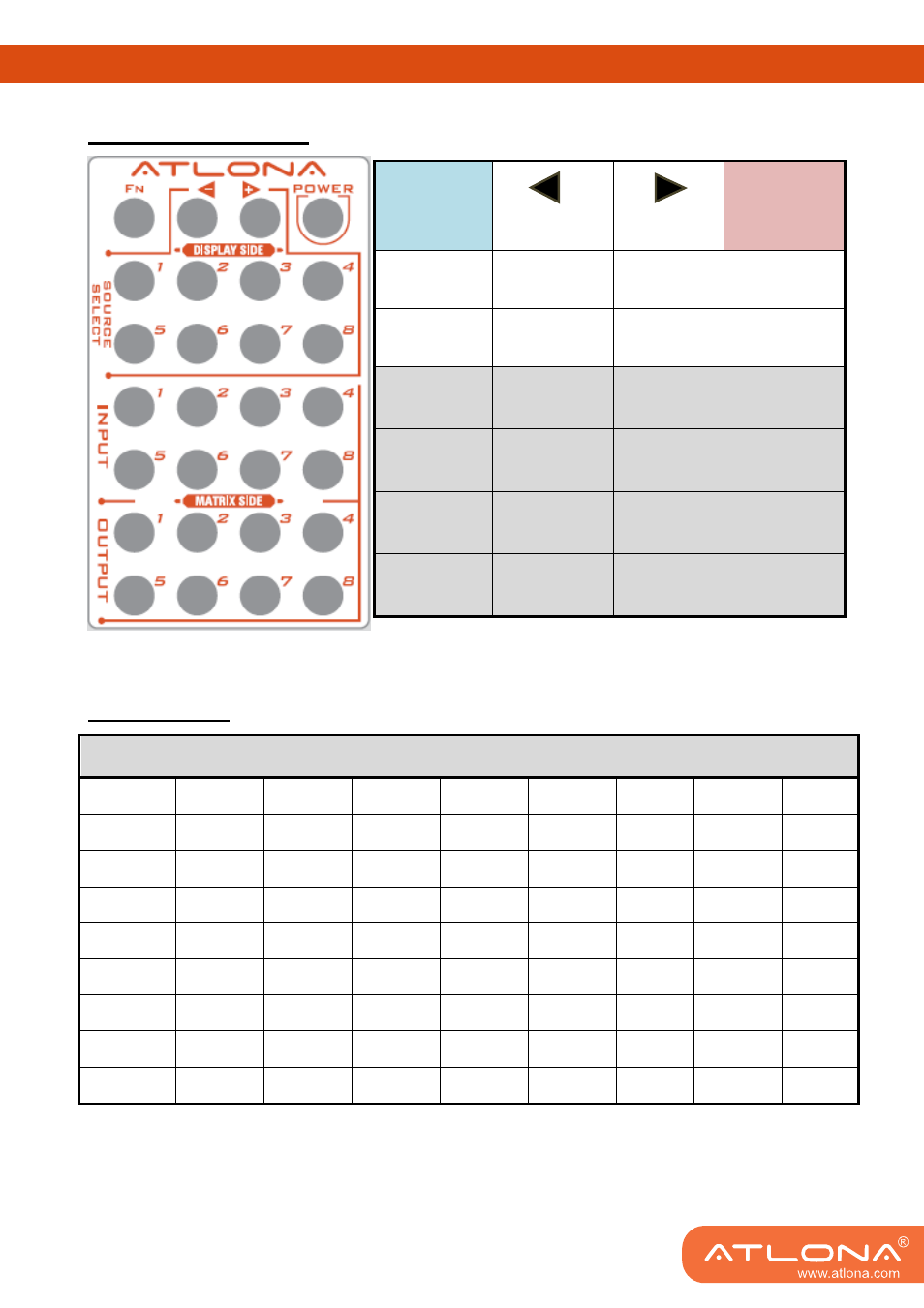

IR DISCRETE CODES
Default Custom Code — IR2 Code: 00 FF
Custom Code — IR3 Code: 0x12 0x21
Custom Code: 0x12 0x21
Output 1
Output 2
Output 3
Output 4
Output 5
Output 6 Output 7
Output 8
Source 1
0xA1 0xB1 0xC1 0xD1 0xE1 0xF1 0x11 0x21
Source 2
0xA2 0xB2 0xC2 0xD2 0xE2 0xF2 0x12 0x22
Source 3
0xA3 0xB3 0xC3 0xD3 0xE3 0xF3 0x13 0x23
Source 4
0xA4 0xB4 0xC4 0xD4 0xE4 0xF4 0x14 0x24
Source 5
0xA5 0xB5 0xC5 0xD5 0xE5 0xF5 0x15 0x25
Source 6
0xA6 0xB6 0xC6 0xD6 0xE6 0xF6 0x16 0x26
Source 7
0xA7 0xB7 0xC7 0xD7 0xE7 0xF7 0x17 0x27
Source 8
0xA8 0xB8 0xC8 0xD8 0xE8 0xF8 0x18 0x28
Function
0x17
0x0A
0x0C
POWER
0x02
SOURCE SEL. 1
0x54
SOURCE SEL. 2
0x55
SOURCE SEL 3
0x56
SOURCE SEL. 4
0x01
SOURCE SEL. 5
0x57
SOURCE SEL. 6
0x58
SOURCE SEL. 7
0x59
SOURCE SEL. 8
0x06
INPUT 1
0x18
INPUT 2
0x5B
INPUT 3
0x19
INPUT 4
0x07
INPUT 5
0x1B
INPUT 6
0x5A
INPUT 7
0x1A
INPUT 8
0x04
OUTPUT 1
0x0E
OUTPUT 2
0x0D
OUTPUT 3
0x12
OUTPUT 4
0x05
OUTPUT 5
0x1C
OUTPUT 6
0x1D
OUTPUT 7
0x1F
OUTPUT 8
0x1E
«
—
