User Manual Interfaces
www.cuesystem.com
Page 26 of 44
6.6. Specifications and Mechanical Drawings ....................
CUEring input ......................................RS-232, DB-9-female connector
CUEring output ....................................RS-232, DB-9-male connector
Audio inputs.........................................(4) stereo unbalanced line level 0 dB, (8) RCA jack connectors
Microphone input .................................(1) mono microphone, jack 6.3 mm connector
Audio outputs.......................................(2) + (2) unbalanced line level 0 dB, (8) RCA jack connectors
Volume control.....................................-68 to +10 dB
Bass control.........................................-15 to +15 dB
Treble control.......................................-15 to +15 dB
Signal-to-noise ratio.............................Greater than 80 dB
Total harmonic distortion .....................Less than 0.03%
Power supply .......................................24 VDC (+/- 20%), 3.5 W, power jack connector
Enclosure.............................................Metal and stainless steel
Dimensions (WxHxD) ..........................242 mm (9.5”) x 44 mm (1.7”) x 160 mm (6.3”)
Weight..................................................1.1 kg / 2.9 lb
Supplied accessories...........................Rack Mount Interface Kit 19”

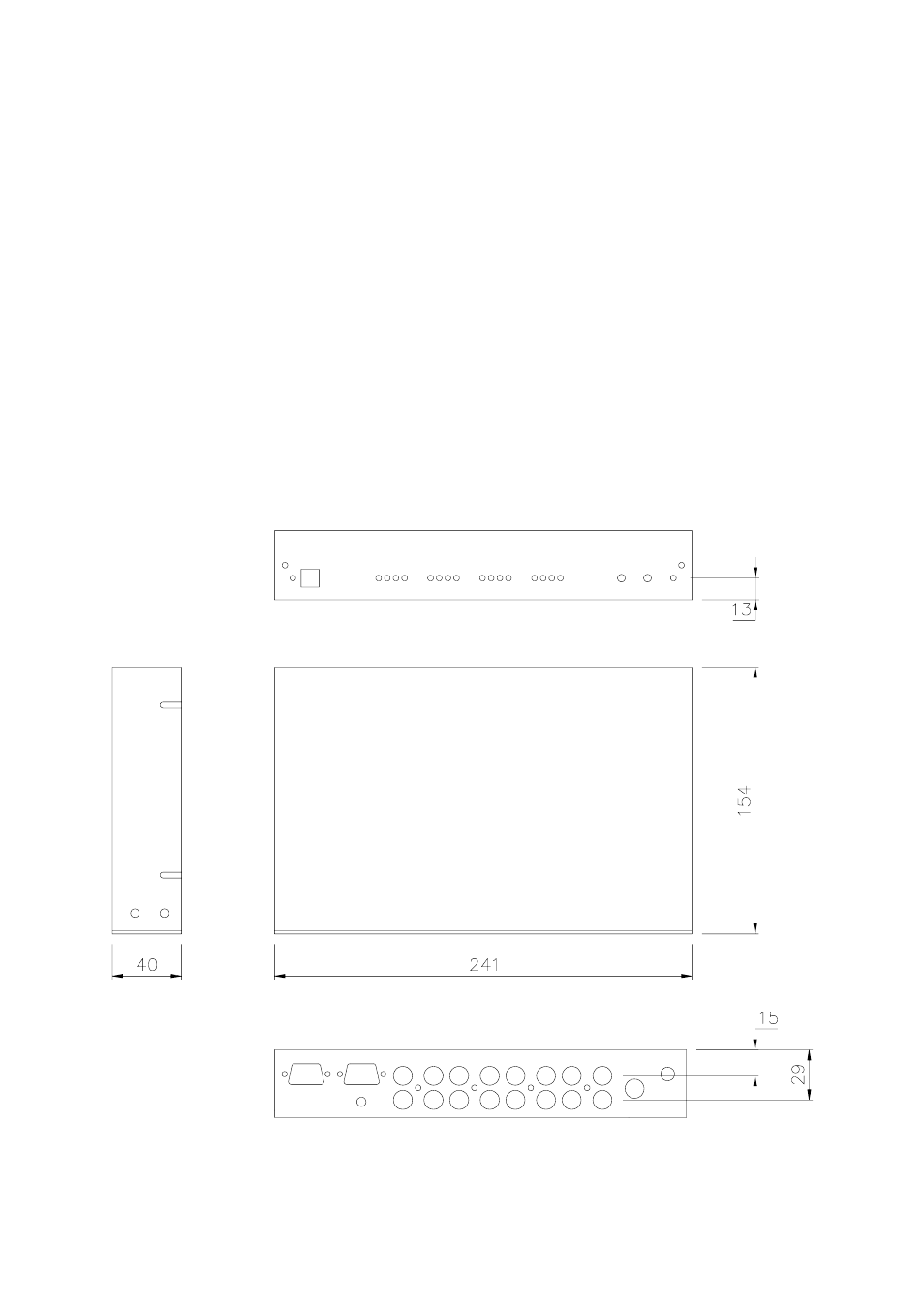

All dimensions are in mm.
