Avalon Firestyles 564 Diamond-Fyre GSR2 Installation - Manual (Page 17)

Installation
(for qualified installers only)
17
© Travis Industries 4140926 100-01395

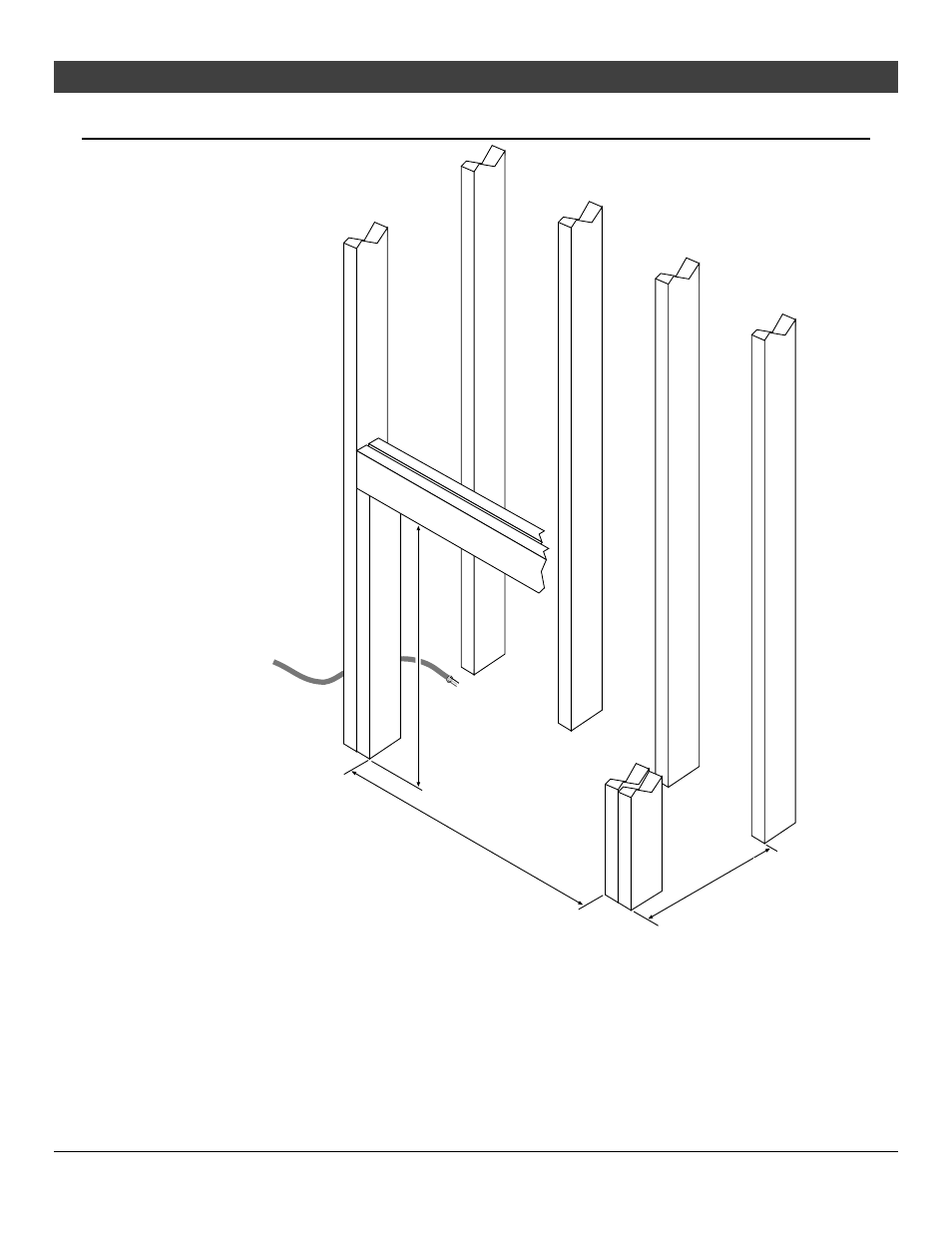

Minimum Framing Dimensions - Top Vent Configuration
Route the electrical line to
a position to the left rear
of the fireplace.
36-1/2"
927mm
33-1/2"
851mm
17-1/4"
439mm
Minimum enclosure height = 38" (965mm)
